Содержание Crawler Bulldozers DRESSTA TD-25G S/N P072001-P072037(TD25GUG)

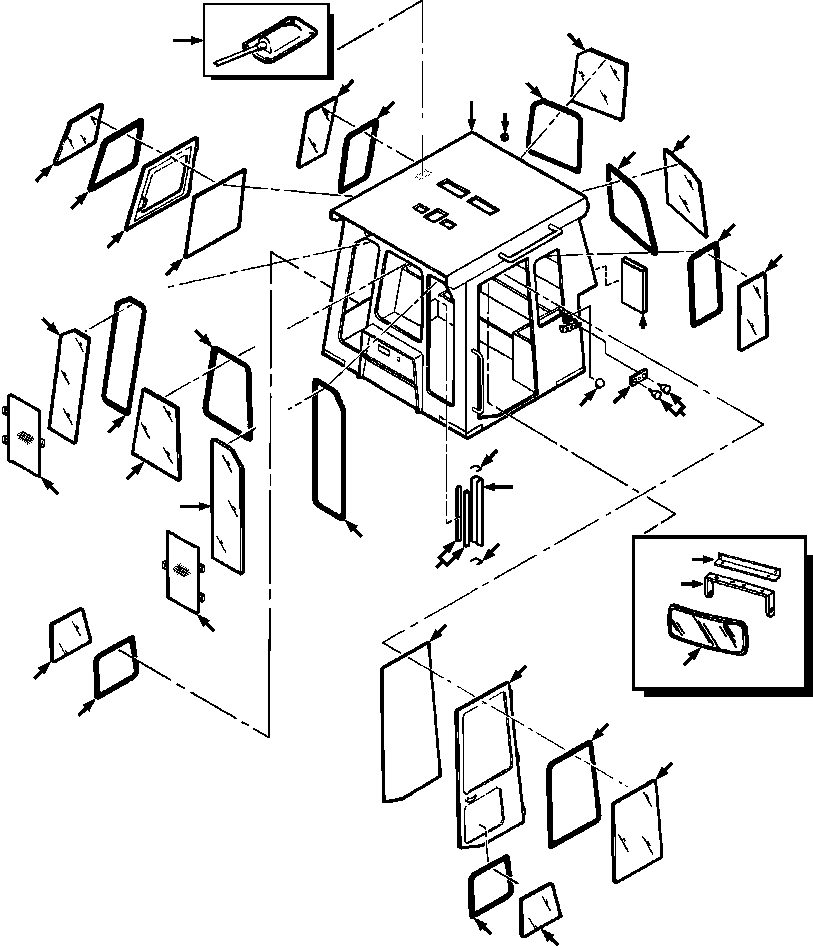

ROPS CAB COMPLETE ASSEMBLY(13-056 : 13-056)
Номер на схеме Каталожный номер Название Количество Детали
? (1299 486 H91) CAB AND ACCESSORIES -54 F1
? (NS) • CAB ASSY 1
? 25 880 R1 • BOLT, MOUNTING - 1NCx3-3/4 16
? 25 550 R1 • WASHER, FLAT - 1 16
? 736 287 C1 • GLASS, CENTER WINDSHIELD 1
? • SEAL, GLASS - 104-1/2 IN LONG 1 F2
? 736 286 C1 • GLASS, RIGHT WINDSHIELD 1
? • SEAL, GLASS - 118-7/16 IN LONG 1 F2
? 736 285 C1 • GLASS, LEFT WINDSHIELD 1
? • SEAL, GLASS - 128-5/16 IN LONG 1 F2
? 732 908 C1 • GLASS, REAR WINDOW 2
? • SEAL, GLASS - 95-5/16 IN LONG 2 F2
? 732 907 C1 • GLASS, REAR SIDE WINDOW 2
? • SEAL, GLASS 79-15/16 IN LONG 2 F2
? 743 761 C1 • GLASS, RIGHT DOOR WINDOW 1
? • SEAL, GLASS - 96-13/16 IN LONG 1 F2
? 729 314 C1 • GLASS, LEFT DOOR UPPER WINDOW 1
? • SEAL, DOOR GLASS - 101-5/8 IN LONG 1 F2
? 728 813 C1 • GLASS, LEFT DOOR LOWER WINDOW 1
? • SEAL, GLASS - 61-3/8 IN LONG 1 F2
? • SEAL, RIGHT WINDOW FRAME - 114.8 IN LONG 1 F3
? • SEAL, DOOR - 165-5/16 IN LONG 1 F3
? 27 951 R1 • PLUG, BUTTON - W/O WORK LIGHTS 4
? 736 481 C1 • CHANNEL, WIRING HARNESS GUARD 1
? 25 551 R1 • WASHER, FLAT - 1/4 2
? 25 519 R1 • NUT, HEX - 1/4NC 2
? • MOLDING, GUARD CHANNEL ENDS - 3 IN LONG 2 F4
? • SEAL, GUARD CHANNEL FOAM - 32 IN LONG 2 F5
? • CAB DOOR, LEFT (SEE PG 13-062) -29 13-062
? 25 684 R1 • BOLT, MOUNTING - 3/8NCx5-1/2 3
? 103 341 • WASHER, FLAT - 13/32 6
? 9413 979 • NUT, LOCK - 3/8NC 3
? • CAB DOOR, RIGHT (SEE PG 13-064) -29 13-064
? • LIGHT, DOME (SEE PG 13-074) -29 13-074
? 450 560 • SCREW W/LOCK WASHER - #8NCx1/2 4
? • CASE, MANUAL (SEE PG 02-010) -29 02-010
? 1288 267 H1 • GLASS, LOWER RIGHT WINDOW 1
? • SEAL, WINDOW - 57-1/8 IN LONG 1 F2
? 1244 960 H1 • TUBE, FILLER SPOUT 1
? 1208 747 H91 • PLATE, HAND KNOB RETAINER 1
? 272 475 • SCREW, MOUNTING - 1/4NCx5/8 2
? 120 392 • WASHER, FLAT - 1/4 2
? 736 173 C1 • BUMPER, RUBBER 2
? 120 214 • WASHER, LOCK - 5/16 2
? 25 520 R1 • NUT, HEX - 5/16NC 2
? 1286 411 H1 BRACKET, MIRROR 1 F6
? 140 483 H BOLT, MOUNTING - 3/8NCx1-1/4 2
? 1171 438 C1 CHANNEL 1 F6
? 24 839 R1 BOLT, MOUNTING - 3/8NCx3/4 2
? 9413 979 NUT, LOCK - 3/8NC 2
? 25 544 R1 WASHER, FLAT - 3/8 2
? 1171 831 C1 MIRROR 1 F6
? 465 567 R1 BOLT, CARRAGE - 1/2NCx1-1/2 2
? 9412 230 NUT, LOCK - 1/2NC 2
? 25 546 R1 WASHER, FLAT - 1/2 2
? 1286 417 H91 GUARD, LEFT WIPER 1 F6
? 24 840 R1 BOLT, MOUNTING - 3/8NCx1 2
? 25 544 R1 WASHER, FLAT - 3/8 2
? 26 317 R1 BOLT, MOUNTING - 1/2NCx1-1/4 1
? 25 555 R1 WASHER, FLAT - 1/2 1
? 736 984 C1 BAR 1
? 1286 423 H91 GUARD, RIGHT WIPER 1 F6
? 24 840 R1 BOLT, MOUNTING - 3/8NCx1 2
? 25 544 R1 WASHER, FLAT - 3/8 2
? 26 317 R1 BOLT, MOUNTING - 1/2NCx1-1/4 1
? 25 555 R1 WASHER, FLAT - 1/2 1
? 736 984 C1 BAR 1
? 739 238 C1 SEAL, WINDOW BULK A/R
? 1141 587 C1 SEAL, DOOR, BULK A/R
? 1262 600 H1 MOLDING, TRIM BULK A/R
? 73 213 C1 SEAL, FOAM, BULK A/R
?
? F1 - PART NUMBER IS A NON-SERVICE PART AND IS LISTED FOR REFERENCE ONLY.
?
?
? F2 - CUT REQUIRED LENGTH FROM BULK SEAL 739 238 C1.
?
?
? F3 - CUT REQUIRED LENGTH FROM BULK SEAL 1141 587 C1.
?
?
? F4 - CUT REQUIRED LENGTH FROM BULK MOLDING 1262 600 H1.
?
?
? F5 - CUT REQUIRED LENGTH FROM BULK SEAL 73 213 C1.
?
?
? F6 - USED ON LANDFILL MACHINE ONLY.
?

Crawler Bulldozers DRESSTA / TD-25G S/N P072001-P072037(TD25GUG) / ROPS CAB COMPLETE ASSEMBLY(13-056 : 13-056)
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
