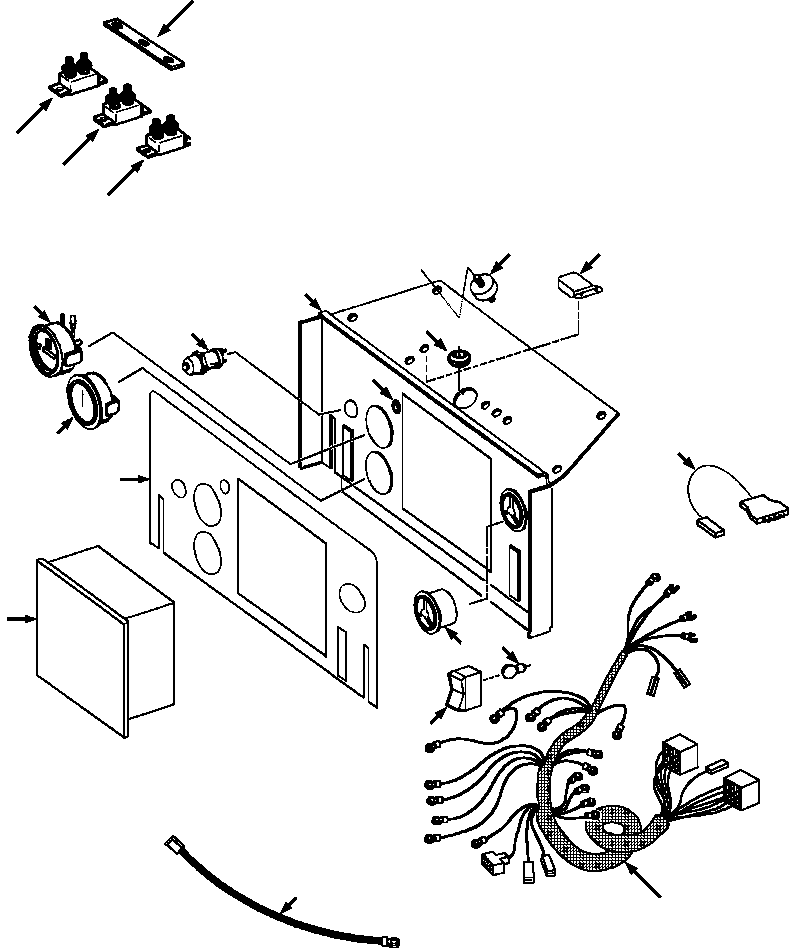

| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | (1302 584 H91) | PANEL ASSY, INSTRUMENT | -54 | F1 | |||
| ? | 1302 585 H91 | • PANEL, INSTRUMENT | 1 | ||||
| ? | 1302 589 H1 | • PRODUCT GRAPHIC, INSTRUMENT PANEL | 1 | ||||
| ? | • CLUSTER, GAUGE (SEE PG 11-016) | -29 | 11-016 | ||||
| ? | 179 389 | • SCREW, MOUNTING - #10NCx3/4 | 4 | ||||
| ? | 1283 060 H1 | • ALARM | 1 | ||||
| ? | • HOURMETER (SEE PG 11-018) | -29 | 11-018 | ||||
| ? | 1299 206 H1 | • GAUGE, FUEL LEVEL | 1 | ||||
| ? | 706 142 C1 | • BREAKER, CIRCUIT - 15 AMP | 2 | ||||
| ? | 436 750 | • SCREW, MOUNTING - #10NCx1/2 | 4 | ||||
| ? | 106 497 | • WASHER, LOCK - #10 | 4 | ||||
| ? | 103 088 | • NUT, HEX - #10-32 | 4 | ||||
| ? | 453 453 C1 | • SWITCH, START | 1 | ||||
| ? | 706 130 C1 | • BREAKER, CIRCUIT - 10 AMP | 1 | ||||
| ? | 436 750 | • SCREW, MOUNTING - #10NCx1/2 | 2 | ||||
| ? | 106 497 | • WASHER, LOCK - #10 | 2 | ||||
| ? | 103 088 | • NUT, HEX - #10-32 | 2 | ||||
| ? | 1302 586 H91 | • HARNESS, INSTRUMENT | 1 | ||||
| ? | 1200 568 H2 | • BOARD, DIODE | 1 | ||||
| ? | 740 343 C1 | • BAR, 3 HOLE BUSS | 1 | ||||
| ? | 118 833 | • GROMMET, HARNESS | 1 | ||||
| ? | 740 459 C1 | • BUSHING | 1 | ||||
| ? | 704 523 C1 | • RELAY | 1 | ||||
| ? | 25 752 R1 | • BOLT, MOUNTING - 1/4NCx1/2 | 2 | ||||
| ? | 25 542 R1 | • WASHER, FLAT - 1/4 | 2 | ||||
| ? | 1299 166 H91 | • SWITCH, ROCKER | 1 | ||||
| ? | 1299 169 H1 | • • BULB, LAMP #T-1 | 1 | ||||
| ? | 702 439 C1 | • MOUNT, RUBBER ISO | 4 | ||||
| ? | 178 521 | • WASHER, LOCK - 1/4 | 8 | ||||
| ? | 115 109 | • WASHER, LOCK - 1/4 | 8 | ||||
| ? | 25 519 R1 | • NUT, HEX - 1/4NC | 8 | ||||
| ? | 935 522 C1 | • STRAP, TIE | A/R | ||||
| ? | 1302 587 H1 | CABLE | 1 | ||||
| ? | |||||||
| ? | F1 - PART NUMBER IS A NON-SERVICE PART AND IS LISTED FOR REFERENCE ONLY. | ||||||
| ? |
