Содержание Crawler Bulldozers DRESSTA TD-8H S/N P035501-P036254(TD8H)

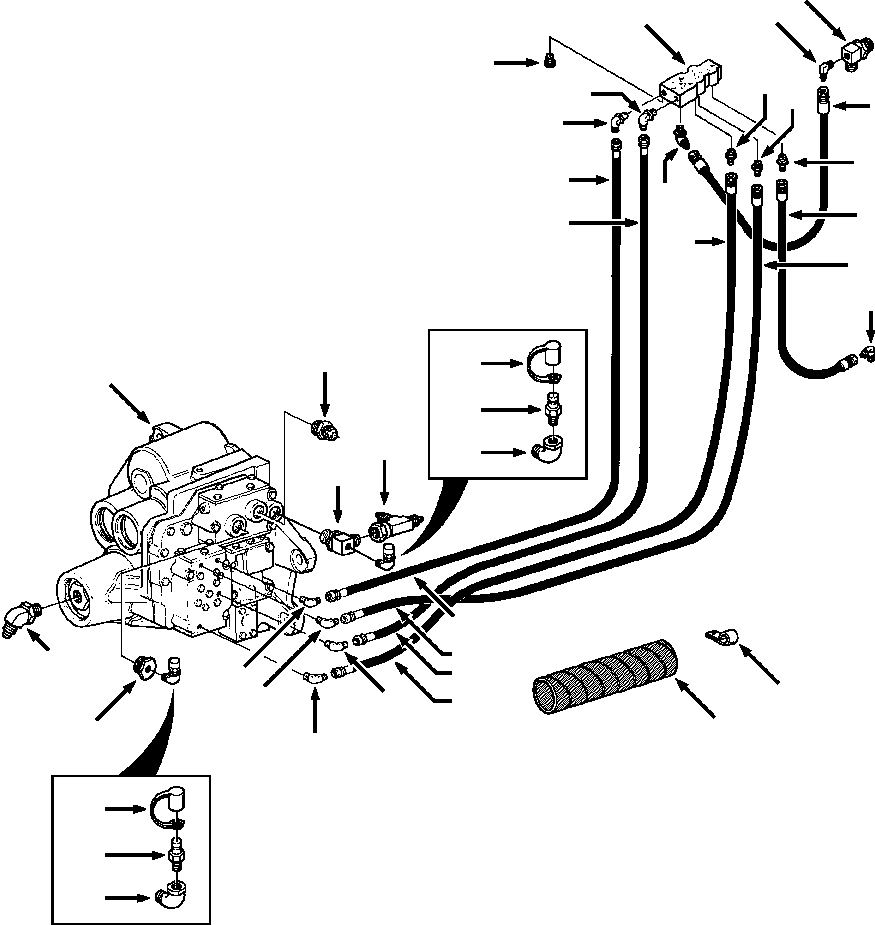

COMPLETE TRANSMISSION TORQUE CONVERTER(07-060 : 07CRTD8H.001)
Номер на схеме Каталожный номер Название Количество Детали
? 1280 199 H92 TRANSMISSION ASSY, COMPLETE 1
? • TRANSMISSION WITH VALVES (SEE PG 07-064) -29 07CRTD8H.005
? 708 417 C1 • ELBOW, 90° - M PORT 1
? 296 247 R1 • RING, SEAL 1 F1
? 380 633 R1 • CONNECTOR - C PORT 1
? 296 247 R1 • RING, SEAL 1 F1
? 105 422 • ELBOW, 90° 2
? 161 849 • QUICK DISCONNECT 2
? 162 144 • CAP, DUST 2
? 585 694 R1 • ELBOW, 90° 4
? 666 153 C2 • MANIFOLD, PILOT VALVE 1
? 667 958 C1 • CONNECTOR - L PORT 1
? 296 247 R1 • RING, SEAL 1 F1
? 9410 202 • CONNECTOR - 1, 2 AND D PORTS 3
? 364 839 R1 • RING, SEAL 3 F1
? 9411 104 • ELBOW, 45° - M PORT 1
? 364 839 R1 • RING, SEAL 1 F1
? 9410 976 • ELBOW, 90° - F AND R PORTS 2
? 364 839 R1 • RING, SEAL 2 F1
? 662 014 C1 • HOSE, R OR 2ND 2
? 336 081 R91 • HOSE, F 1
? 346 944 R91 • HOSE, M OR D 2
? 717 130 C1 • HOSE, 1ST 1
? 9411 107 • ELBOW, 45° 1
? 368 269 R1 • RING, SEAL 1 F1
? 444 613 • PLUG, PIPE 1
? 27 843 R1 CLAMP, HOSE 1
? SLEEVE, PROTECTIVE - 24 IN. LONG 1 F2
? TEE, SUPPLY (SEE PG 07-006) -29 07BHTD8H.001
? ELBOW, AT FILTER (SEE PG 07-006) -29 07BHTD8H.001
? ELBOW, DRAIN (SEE PG 07-018) -29 07BHTD9H.004
? ELBOW, FILTER OUTLET (SEE PG 07-006) -29 07BHTD8H.001
? 160 927 SLEEVE, BULK PROTECTIVE A/R
? 741 453 C93 KIT, TRANSMISSION SERVICE 1
? 659 910 C1 • SEAL PISTON 5
? 659 913 C1 • RING, SEAL 5
?
? CONTINUED ON NEXT PAGE
? 709 631 C1 • SEAL, PISTON 4
? 709 632 C1 • RING SEAL 4
? 659 720 C1 • SEAL, PISTON 1
? 659 726 C1 • RING, SEAL 1
? 716 841 C1 • RING, SEAL 4
? 327 090 R3 • RING, SEAL 4
? 716 840 C1 • RING, SEAL 4
? 716 747 C1 • RING, SEAL 4
? 22 410 R1 • RING, SEAL - COUNTERSHAFT COVER 1
? 707 253 R1 • RING, SEAL - REVERSE IDLER SHAFT 1
? 21 924 R1 • RING, SEAL - OUTPUT SHAFT 2
? 301 016 R1 • RING, SEAL - ADAPTER FITTING 1
? 372 821 R1 • RING, SEAL - REG VALVE LARGE 2
? 252 707 R1 • RING, SEAL - REG SMALL AND SELECTOR VALVE 12
? 364 839 R1 • RING, SEAL - FITTING 7
? 296 247 R1 • RING, SEAL - FITTING 3
? 368 269 R1 • RING, SEAL - LUBE ELBOW 1
? 936 658 C1 • RING, SEAL - TRANSMISSION CASE 1
? 705 495 C1 • SHIM, DIR. CLUTCH AND COUNTERSHAFT - 0.005 8
? 705 496 C1 • SHIM, DIR. CLUTCH AND COUNTERSHAFT - 0.007 8
? 705 497 C1 • SHIM, DIR. CLUTCH AND COUNTERSHAFT - 0.030 8
? 705 492 C1 • SHIM, RANGE CLUTCH - 0.005 8
? 705 493 C1 • SHIM, RANGE CLUTCH - 0.007 8
? 705 494 C1 • SHIM, RANGE CLUTCH - 0.030 8
? 259 246 R1 • RING, SEAL - RANGE CLUTCH 1
? 621 156 C1 • SHIM, TRANS MOUNTING - 0.002 4
? 621 157 C1 • SHIM, TRANS MOUNTING - 0.007 4
? 621 158 C1 • SHIM, TRANS MOUNTING - 0.020 8
? 716 912 C2 • GASKET, MANIFOLD 1
? 657 951 C3 • GASKET, RATE OF RISE VALVE 1
? 734 040 C2 • GASKET, SCAVENGE TUBE 1
? 666 154 C3 • GASKET, PILOT VALVE 1
?
? F1 - PART OF TRANSMISSION SERVICE KIT 741 453 C93.
?
?
? F2 - CUT REQUIRED LENGTH FROM BULK PROTECTIVE SLEEVE 160 927.
?
