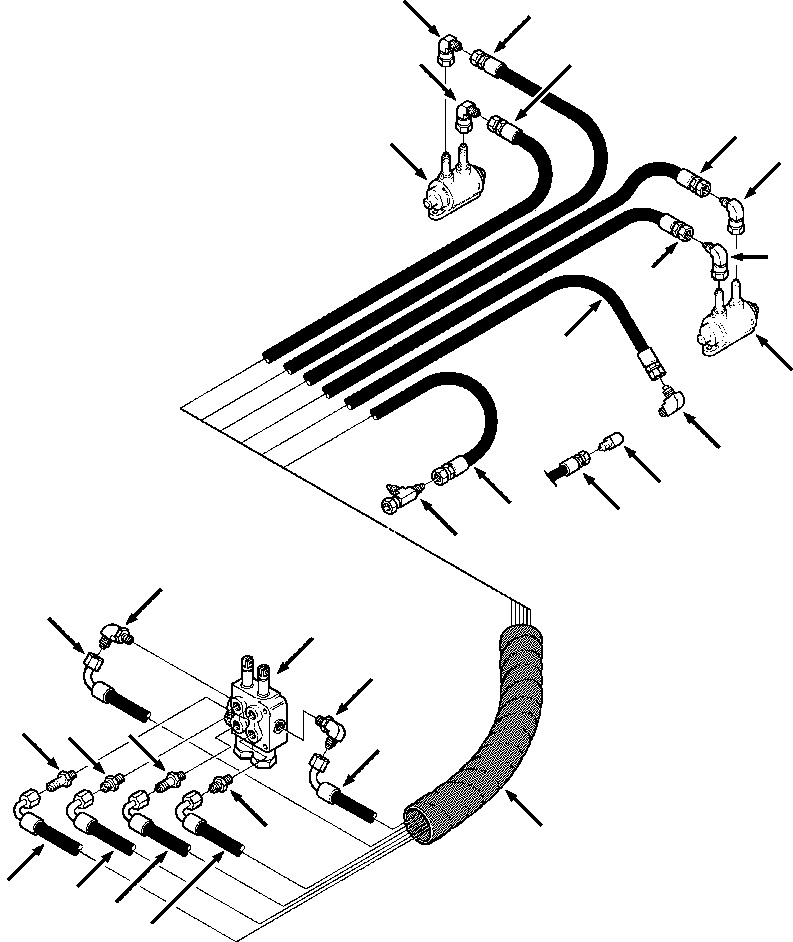

| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | SLEEVE, PROTECTIVE - 24 IN. LONG | 1 | F1 | ||||
| ? | 1280 682 H1 | HOSE, VALVE INLET | 1 | ||||
| ? | 1279 688 H1 | HOSE, APPLY | 4 | ||||
| ? | 1279 689 H1 | HOSE, VALVE OUTLET | 1 | ||||
| ? | 9410 229 | CONNECTOR, LONG | 2 | ||||
| ? | 570 828 R1 | RING, SEAL | 2 | ||||
| ? | 9410 203 | CONNECTOR, SHORT | 2 | ||||
| ? | 570 828 R1 | RING, SEAL | 2 | ||||
| ? | 9410 977 | ELBOW, 90° | 2 | ||||
| ? | 570 828 R1 | RING, SEAL | 2 | ||||
| ? | 9410 281 | ELBOW, 90° | 4 | ||||
| ? | 9402 865 | ELBOW, 90° | 1 | ||||
| ? | 333 934 R1 | ELBOW, 90° | 1 | ||||
| ? | TEE, AT M PORT REG VALVE (SEE PG 07-006) | -29 | 07BHTD8H.001 | ||||
| ? | VALVE, STEERING (SEE PG 07-100) | -29 | 07HDTD9H.001 | ||||
| ? | STEERING CYLINDER CONNECTIONS (SEE PG 07-102) | -29 | 07ZZTD9H.001 | ||||
| ? | HOSE, MANIFOLD DRAIN (SEE PG 07-060) | -29 | 07CRTD8H.001 | ||||
| ? | 306 132 C2 | STRAP, TIE | A/R | ||||
| ? | 160 927 | SLEEVE, BULK PROTECTIVE | A/R | ||||
| ? | |||||||
| ? | F1 - CUT REQUIRED LENGTH FROM BULK PROTECTIVE SLEEVE 160 927. | ||||||
| ? |
