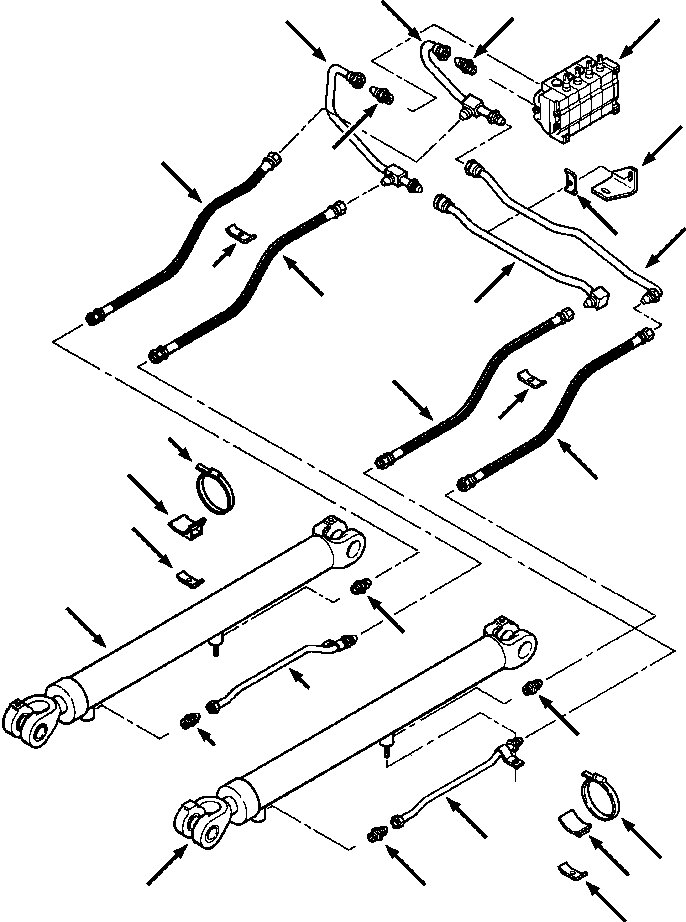

| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | VALVE, THREE SPOOL CONTROL (SEE PG 10-050) | -29 | 10BHTD9H.009 | ||||
| ? | VALVE, FOUR SPOOL CONTROL (SEE PG 10-052) | -29 | 10BHTD9H.001 | ||||
| ? | 9410 204 | CONNECTOR | 2 | ||||
| ? | 364 885 R1 | RING, SEAL | 2 | ||||
| ? | 1285 292 H1 | VENT, ORIFICE - 0.281IN - TOP PORT ROD END | 1 | ||||
| ? | 1271 300 H1 | TUBE, ROD END | 1 | ||||
| ? | 1271 301 H1 | TUBE, HEAD END | 1 | ||||
| ? | 1271 302 H1 | TUBE, ROD END CROSSOVER | 1 | ||||
| ? | 1271 303 H1 | TUBE, HEAD END CROSSOVER | 1 | ||||
| ? | 653 171 C1 | CLAMP, TUBE | 1 | ||||
| ? | 140 483 H | BOLT, HEX - 3/8NCx1-1/4 | 1 | ||||
| ? | 25 544 R1 | WASHER, FLAT - 3/8 | 1 | ||||
| ? | 1271 310 H1 | BRACKET, SUPPORT | 1 | ||||
| ? | 1271 349 H1 | HOSE, HEAD END | 2 | ||||
| ? | 1271 349 H1 | HOSE, ROD END | 2 | ||||
| ? | 653 171 C1 | CLAMP, HOSE | 2 | ||||
| ? | 24 843 R1 | BOLT, HEX - 3/8NCx2 | 2 | ||||
| ? | 25 553 R1 | WASHER, FLAT - 3/8 | 2 | ||||
| ? | 25 544 R1 | WASHER, FLAT - 3/8 | 2 | ||||
| ? | 26 241 H | SPACER, CLAMP | 2 | ||||
| ? | CYLINDER, LIFT (SEE PG 10-070) | -29 | 10BRTD9H.001 | ||||
| ? | 1277 346 H91 | BRACKET, TUBE | 2 | ||||
| ? | 689 475 C1 | CLAMP, HOSE | 2 | ||||
| ? | 653 171 C1 | CLAMP, HOSE | 2 | ||||
| ? | 24 842 R1 | BOLT, HEX - 3/8NCx1-3/4 | 2 | ||||
| ? | 25 553 R1 | WASHER, FLAT - 3/8 | 2 | ||||
| ? | 25 544 R1 | WASHER, FLAT - 3/8 | 2 | ||||
| ? | 26 241 H | SPACER, CLAMP | 2 | ||||
| ? | 1277 460 H91 | TUBE, RIGHT ROD END | 1 | ||||
| ? | 25 553 R1 | WASHER, FLAT - 3/8 | 2 | ||||
| ? | 25 522 R1 | NUT, NEX - 3/8NC | 1 | ||||
| ? | 1277 461 H91 | TUBE, LEFT ROD END | 1 | ||||
| ? | 25 553 R1 | WASHER, FLAT - 3/8 | 2 | ||||
| ? | 25 522 R1 | NUT, HEX - 3/8NC | 1 | ||||
| ? | 9410 204 | CONNECTOR | 4 | ||||
| ? | 364 885 R1 | RING, SEAL | 4 | ||||
| ? | 306 132 C2 | STRAP, TIE | A/R |
