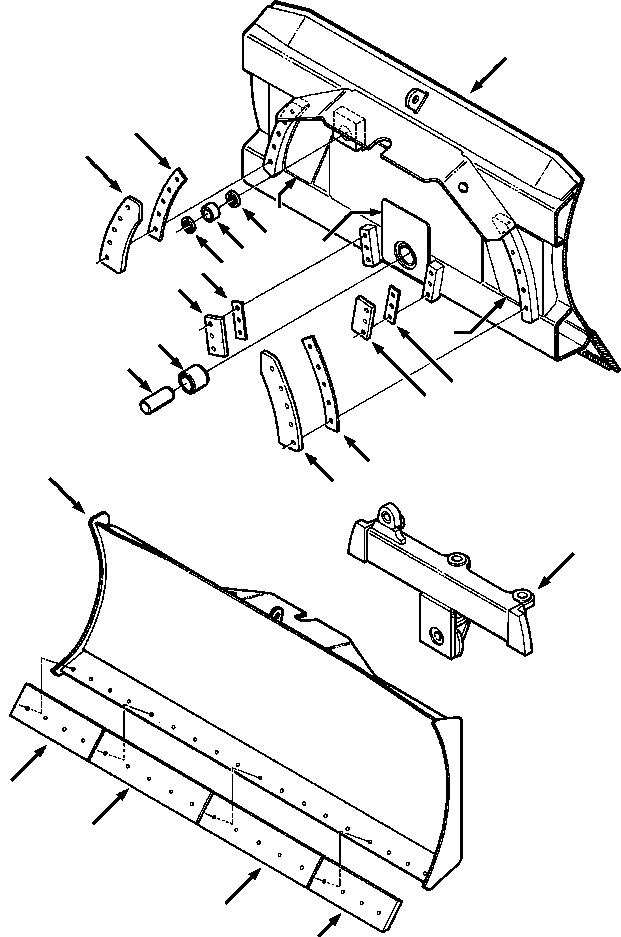

| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | (1270 113 H95) | BLADE AND ANGLING FRAME | -54 | F1 | |||
| ? | 620 693 C2 | • PIN, BLADE TO ANGLING FRAME | 1 | ||||
| ? | 1267 333 H1 | • SHIM, LOWER RETAINER PLATE | A/R | F2 | |||
| ? | 1267 334 H1 | • PLATE LOWER RETAINER | 2 | ||||
| ? | 24 890 R1 | • BOLT, HEX - 3/4NCx2-1/2 | 6 | ||||
| ? | 1267 332 H1 | • PLATE, UPPER RETAINER | 2 | ||||
| ? | 24 890 R1 | • BOLT, HEX - 3/4NCx2-1/2 | 10 | ||||
| ? | 1267 331 H1 | • SHIM, UPPER RETAINER PLATE | A/R | F3 | |||
| ? | • FRAME, ANGLING (SEE PG 17-010) | -29 | 17AVD32E.001 | ||||
| ? | 1270 114 H94 | • BLADE ASSY, DOZER | 1 | ||||
| ? | (1270 115 H94) | • • BLADE SUB ASSY | -54 | F1 | |||
| ? | (NSS) | • • • BLADE, DOZER | 1 | ||||
| ? | 1282 813 H1 | • • • PLATE, WEAR | 2 | ||||
| ? | 1282 814 H1 | • • • PLATE, WEAR | 1 | ||||
| ? | 705 734 C1 | • • • BUSHING, PIN | 1 | ||||
| ? | 1282 468 H1 | • • EDGE, INNER CUTTING | 2 | ||||
| ? | 646 534 C1 | • • BOLT, PLOW | 10 | ||||
| ? | 25 529 R1 | • • NUT, HEX - 3/4NC | 10 | ||||
| ? | 1283 143 H1 | • • EDGE, OUTER CUTTING | 2 | ||||
| ? | 646 534 C1 | • • BOLT, PLOW | 8 | ||||
| ? | 25 529 R1 | • • NUT, HEX - 3/4NC | 8 | ||||
| ? | 1268 300 H1 | • • BEARING, NON-LUBE | 1 | ||||
| ? | 1268 301 H1 | • • SEAL, PIN | 2 | ||||
| ? | |||||||
| ? | F1 - PART NUMBER IS A NON-SERVICE PART AND IS LISTED FOR REFERENCE ONLY. | ||||||
| ? | |||||||
| ? | |||||||
| ? | F2 - MINIMUM OF 1 SHIM TO A MAXIMUM OF 6 SHIMS LOCATED PER SIDE. | ||||||
| ? | |||||||
| ? | |||||||
| ? | F3 - MINIMUM OF 2 SHIM TO A MAXIMUM OF 7 SHIMS LOCATED PER SIDE. | ||||||
| ? |
