| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|

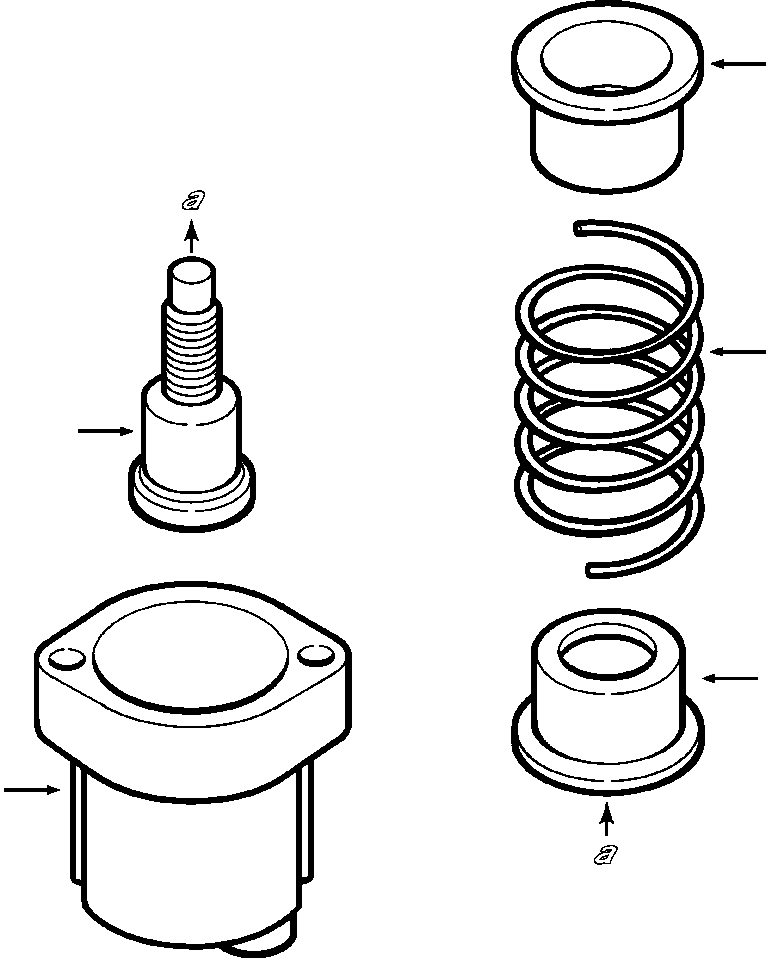

| ? | 1299 241 H91 | POSITIONER ASSY, TILT SPOOL | 1 | ||||
| ? | 850 138 C1 | • COLLAR, STOP | 2 | ||||
| ? | 850 144 C1 | • COLLAR, SPOOL | 1 | ||||
| ? | 1299 242 H1 | • SPRING, CENTERING | 1 | ||||
| ? | (NSS) | • BONNET, CENTERING SPRING | 1 | ||||
| ? | 217 904 | • BOLT, HEX - 1/4NCx7/8 | 2 | ||||
| ? | 1299 243 H91 | POSITIONER ASSY, ANGLE OR RIPPER SPOOL | 1 | ||||
| ? | 850 138 C1 | • COLLAR, STOP | 2 | ||||
| ? | 850 144 C1 | • COLLAR, SPOOL | 1 | ||||
| ? | 1299 244 H1 | • SPRING, CENTERING | 1 | ||||
| ? | (NSS) | • BONNET, CENTERING SPRING | 1 | ||||
| ? | 217 904 | • BOLT, HEX - 1/4NCx7/8 | 2 |
