| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|

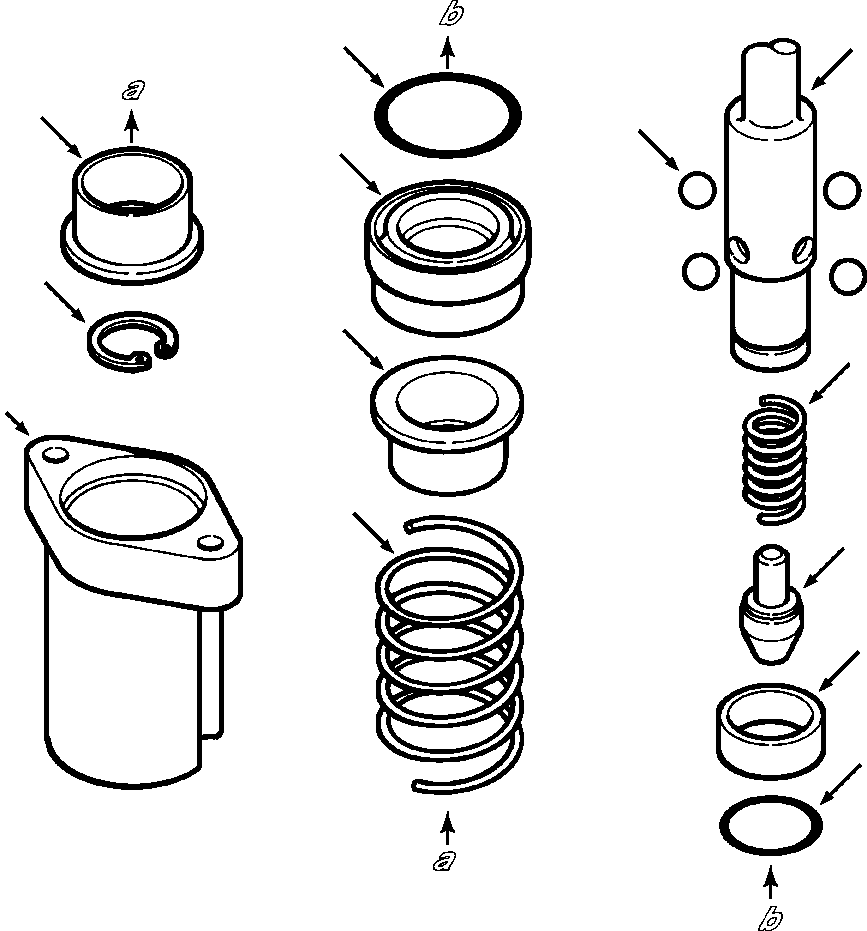

| ? | 1299 232 H91 | POSTIONER ASSY, DETENT | 1 | ||||
| ? | 850 130 C1 | • SEAL, SPOOL | 1 | ||||
| ? | 850 132 C1 | • COLLAR, STOP | 2 | ||||
| ? | 850 133 C1 | • SPRING, DETENT | 1 | ||||
| ? | 850 134 C1 | • FOLLOWER, DETENT BALL | 1 | ||||
| ? | 17 007 R1 | • BALL, DETENT - 7/32 | 4 | ||||
| ? | 1299 233 H1 | • SPRING, CENTERING | 1 | ||||
| ? | 1299 234 H1 | • SEAL, RING | 1 | ||||
| ? | (NSS) | • BONNET, FLOAT | 1 | ||||
| ? | (NSS) | • BOLT, MOUNTING | 2 | ||||
| ? | (NSS) | • WASHER, FLAT | 2 | ||||
| ? | (NSS) | • SLEEVE, DETENT | 1 | ||||
| ? | (NSS) | • RING, RETAINING | 1 | ||||
| ? | (NSS) | • SLEEVE, RETAINER | 1 | ||||
| ? | (NSS) | SPOOL, BLADE LIFT (SEE PG 10-056) | -29 | 10BHTD9H.003 |
