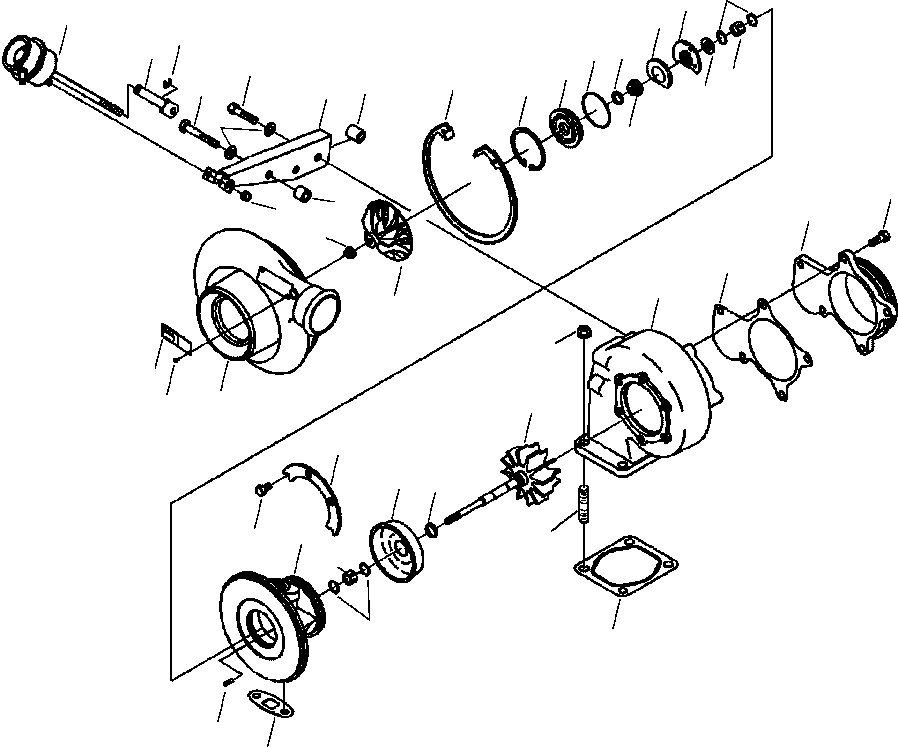

FIG. A1203-A3B7 TURBOCHARGER(A-018 : A1203-A3B7)
Номер на схеме Каталожный номер Название Количество Детали
? 1304 937 H91 TURBOCHARGER KIT (HX40W WASTEGATE) 1
? (NSS) • TURBOCHARGER 1
? 6736-81-8370 • • BEARING, TURBOCHARGER 2
? 6733-81-8650 • • WASHER, PLAIN 3
? 6736-81-8480 • • SCREW, DRIVE 2
? 6736-81-8430 • • SHIELD, TURBOCHARGER HEAT 1
? 6733-81-8480 • • PIN, ROLL 1
? 1294 841 H1 • • SHAFT & WHEEL 1
? 6733-81-8360 • • RING, RETAINING 1
? (NSS) • • DATAPLATE 1
? 1307 693 H1 • • CONNECTION, ADAPTER 1
? 6733-81-8330 • • BAFFLE, OIL 1
? 6733-81-8340 • • END, ADJUSTING LINK 1
? 6733-81-8250 • • NUT, LOCK (1/4-28 UNF) 2
? 6733-81-8370 • • RING, RETAINING 1
? 6733-81-8460 • • SEAL, O-RING 1
? 6733-81-8380 • • BOLT (M8-1.25x20) 5
? 6733-81-8270 • • PLATE, OIL SEAL 1
? (NSS) • • SLINGER, OIL 1
? 6733-81-6850 • • SPACER, MOUNTING 3
? 6735-81-6810 • • SPACER, MOUNTING 1
? 6735-82-8220 • • BEARING, THRUST 1
? 6735-81-8620 • • COLLAR, THRUST 1
? 6742-01-5569 • • BOLT 1
? 6735-81-8510 • • HOUSING, BEARING 1
? 6735-81-8370 • • BOLT 2
? 6735-81-8310 • • RING, RETAINING 1
? (NSS) • • BRACKET, ACTUATOR 1
? 1304 920 H1 • • PLATE, CLAMPING 2
? (NSS) • • ACTUATOR, TURBOCHARGER 1
? 1304 921 H1 • • GASKET, ADAPTER 1
? 1304 922 H1 • • HOUSING, COMPRESSOR 1
? 6742-82-8110 • • IMPELLER, COMPRESSOR 1
? 1304 929 H2 • • HOUSING, TURBINE 1
? 6731-82-8210 • • NUT, LOCK (M7-1.00) 1
? 6736-81-8440 • • SEAL, SPLIT RING 1
? 6736-81-8320 • • SEAL, SPLIT RING 1
? 6736-81-8380 • • BOLT (M8-1.25x12) 6
? 6736-81-8360 • • RING, RETAINING 4
? 6742-01-0790 • GASKET, TURBOCHARGER 1
? 6735-51-8180 • GASKET 1
? 6732-81-8820 NUT 4
? 6732-81-8810 STUD 4
