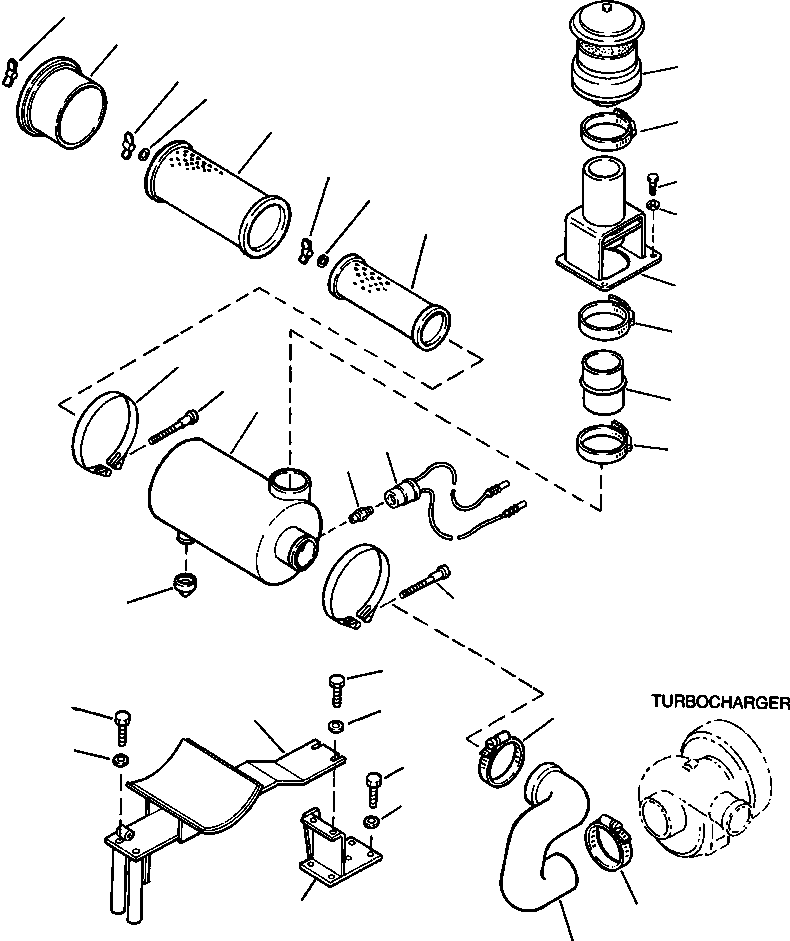

FIG NO. B1410-A201B AIR CLEANER WITH PRE-CLEANER TURBO II(B-022 : B1410W32.003)
Номер на схеме Каталожный номер Название Количество Детали
? 6222-83-7200 AIR CLEANER ASSEMBLY 1
? 6001-82-3220 • ELEMENT, AIR CLEANER (PRIMARY) 1
? 6001-82-3230 • ELEMENT, AIR CLEANER (SAFETY) 1
? 6001-82-3270 • COVER, AIR CLEANER 1
? 6001-81-7910 • NUT 1
? 6001-81-7511 • WASHER 1
? 6222-81-7190 • BODY 1
? 6001-82-3240 • NUT, WING 1
? 6001-81-4440 • GASKET 1
? 6001-81-1370 • VALVE, VACUATOR 1
? 6001-81-3240 • NUT, COVER, WING 1
? 419-Z04-A110 BRACKET 1
? 6222-81-7190 BAND ASSEMBLY 2
? 6643-11-4620 • PIN 1
? 6643-11-4630 • PIN WITH THREAD 1
? 421-02-A1130 BOLT 2
? 600-815-7940 INDICATOR, DUST 1
? 419-01-22151 HOSE 1
? 690 064 C1 CLAMP 2
? 1252 151 H1 CLAMP 1
? 419-01-A1170 SUPPORT 1
? 427-62-15060 BOLT 2
? 01643-31232 WASHER 2
? 01010-81030 BOLT 2
? 25 553 R1 WASHER 2
? 419-01-A1180 SUPPORT 1
? 01010-81030 BOLT 4
? 01643-31032 WASHER 4
? PRE-CLEANER, TURBO II (SEE PG B-024) -29 B1410W32.004
? 690 069 C1 CLAMP 2
? 1245 426 540 WASHER 4
? 01010-81230 BOLT 4
? 6001-81-0610 HOSE 1
? 08670-22001 ADAPTER 1
