Содержание Wheel Loaders Komatsu WA380-3L S/N A50001-UP(WA3803)

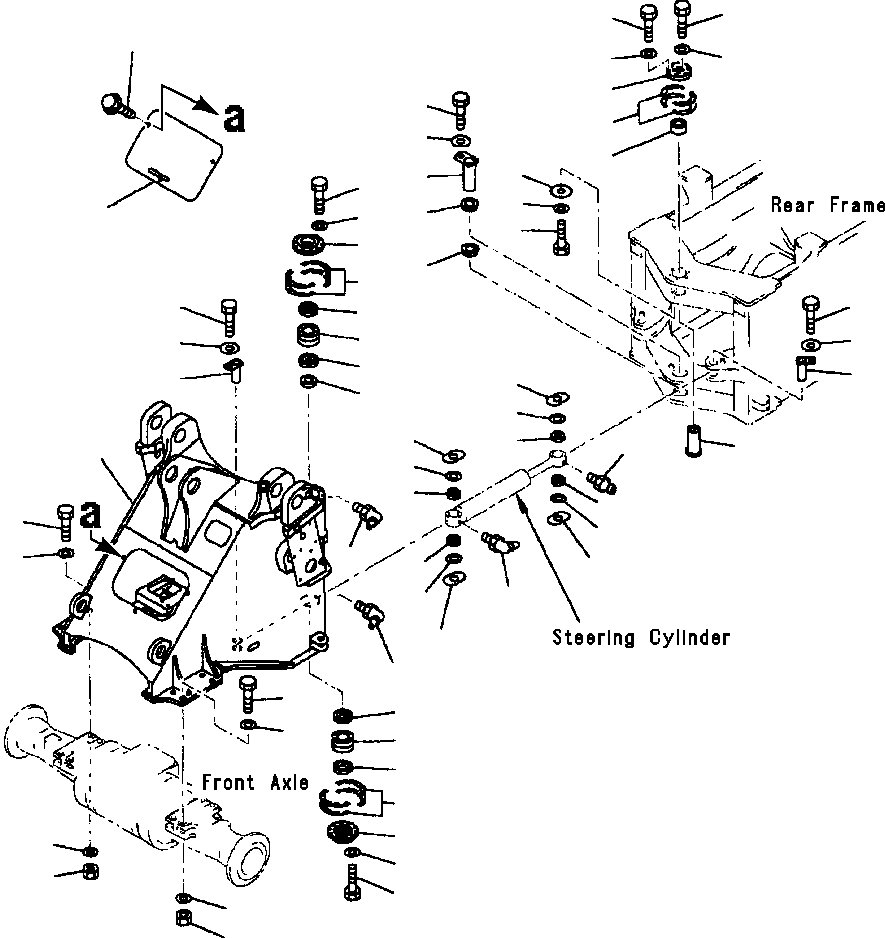

FRONT FRAME(05-002 : 05-002)
Номер на схеме Каталожный номер Название Количество Детали
? 423-46-A2400 FRAME, FRONT 1 F1
? 423-877-2330 FRAME, FRONT 1 F2
? 423-U94-2170 FRAME, FRONT 1 F3
? 423-S95-2970 FRAME, FRONT 1 F4
? 423-S99-2610 FRAME, FRONT 1 F5
? 07020-00675 FITTING, GREASE 1
? 421-46-11361 BEARING 1
? 421-09-11310 SEAL, DUST 2
? 421-46-11710 RETAINER 1
? 421-46-11371 SHIM, 0.1mm 20
? 421-46-11381 SHIM, 0.5mm 20
? 01010-51240 BOLT 10
? 01643-31232 WASHER 10
? 424-46-11171 SPACER 1
? 424-46-11160 SPACER 1
? 424-46-11182 SHAFT 1
? 419-70-11340 PLATE 1
? 01010-51225 BOLT 1
? 01643-31232 WASHER 1
? 421-46-11421 COVER 1
? 421-46-11430 SHIM, 0.2mm 10
? 421-46-11440 SHIM, 0.5mm 8
? 421-46-11450 SHIM, 1.0mm 4
? 01010-31695 BOLT 4
? 01643-31645 WASHER 4
? 01010-51250 BOLT 6
? 01643-31232 WASHER 6
? 07020-00675 FITTING, GREASE 1
? 421-46-11361 BEARING 1
? 07011-00080 SEAL, DUST 2
? 421-46-11470 RETAINER 1
? 421-46-11371 SHIM, 0.1mm 20
? 421-46-11381 SHIM, 0.5mm 20
? 01010-51235 BOLT 10
? 01643-31232 WASHER 10
? 421-46-11461 SHAFT 1
? 421-46-12331 BUSHING 2
? 01010-51625 BOLT 1
? 421-70-11280 WASHER 1
? 07020-00000 FITTING, GREASE 2
? 07020-00675 FITTING, GREASE 2
? 416-09-11140 SEAL, DUST 8
? 424-46-12540 SHIM, 0.5mm 8
? 416-70-11350 SHIM, 1.0mm 8
? 423-46-22180 SHIM, 0.5mm 8
? 423-46-22170 SHIM, 1.0mm 8
? 424-46-12120 PIN 4
? 01010-51220 BOLT 4
? 175-54-34170 WASHER 4
? 423-46-11121 COVER, FRONT 1
? 01435-01230 BOLT 3
? 01011-62770 BOLT 8
? 01643-32780 WASHER 16
? 01580-02722 NUT 8
?
? F1 - USED ON MACHINES WITH STANDARD EQUIPMENT.
?
?
? F2 - USED ON MACHINES WITH FRONT END ATTACHMENT.
?
?
? F3 - USED ON MACHINES WITH LOAD METER.
?
?
? F4 - USED ON MACHINES WITH AUTO GREASE SYSTEM.
?
?
? F5 - USED ON MACHINES WITH ELECTRONICALLY CONTROLLED
? SUSPENSION SYSTEM.
