Содержание Wheel Loaders Komatsu WA500-1L SUPPLEMENT S/N 10420-UP & A10411-A20853(WA5001SP)

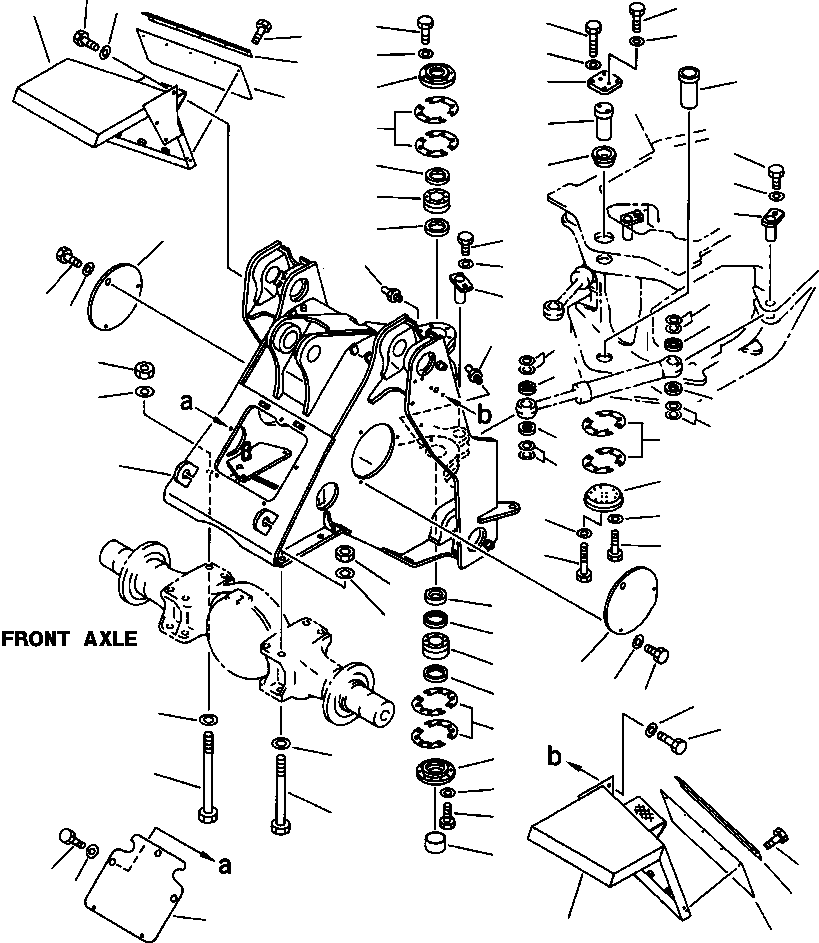

FRONT FRAME(05-002 : 09AHW500.001)
Номер на схеме Каталожный номер Название Количество Детали
? 425-46-11200 FRAME, FRONT 1
? 07020-00000 FITTING, GREASE 1
? 425-46-11310 BEARING 1
? 425-46-11280 SEAL, DUST 2
? 425-46-11240 RETAINER, CENTER HINGE (UPPER) 1
? 425-46-11250 SHIM, 0.1mm 8
? 425-46-11260 SHIM, 0.5mm 8
? 01010-51445 BOLT, MOUNT CENTER HINGE RETAINER (UPPER) 6
? 01643-31445 WASHER 6
? 425-46-11230 BUSHING 1
? 425-46-11220 PIN, CENTER HINGE (UPPER) 1
? 425-46-11210 PLATE 1
? 01010-31450 BOLT 2
? 01010-31465 BOLT 4
? 01643-31445 WASHER
? 07020-00000 FITTING, GREASE 1
? 425-46-11560 BEARING 1
? 425-46-11510 SEAL, DUST 2
? 425-46-11420 BUSHING 1
? 425-46-11430 BUSHING 1
? 425-46-11460 RETAINER, CENTER HINGE (LOWER) 1
? 425-46-11470 SHIM, 0.1mm 8
? 01010-31445 BOLT, MOUNT CENTER HINGE RETAINER (LOWER) 10
? 01643-31445 WASHER 10
? 425-46-11410 PIN, CENTER HINGE (LOWER) 1
? 425-46-11520 RETAINER 1
? 425-46-11530 SHIM, 0.1mm 8
? 425-46-11540 SHIM, 0.5mm 12
? 01010-31880 BOLT 4
? 01643-31845 WASHER 4
? 01010-31650 BOLT 6
? 01643-31645 WASHER 6
? 416-09-1110 SEAL, DUST 8
? 425-46-12310 SHIM, 0.1mm 16
? 425-46-12120 PIN, MOUNT STEERING CYLINDER 4
? 01010-51225 BOLT 4
? 175-54-34170 WASHER 4
? 425-46-11131 COVER, FRONT ACCESS 1
? 425-46-11140 COVER, SIDE ACCESS 2
? 01010-51225 BOLT, MOUNT ACCESS COVERS 11
? 01643-31232 WASHER 11
? 425-09-11170 BOLT, FRONT AXLE MOUNTING 4
? 425-09-11170 BOLT, FRONT AXLE MOUNTING 4
? 426-46-11711 WASHER, MOUNT FRONT AXLE 16
? 01550-03629 NUT, MOUNT FRONT AXLE 8
? 425-54-14120 FENDER, LH FRONT 1 F1
? 425-54-14110 FENDER, RH FRONT 1 F1
? 425-54-14121 FENDER, LH FRONT 1 F2
? 425-54-14111 FENDER, RH FRONT 1 F2
? 01010-51225 BOLT, MOUNT FENDERS 6
? 01643-31232 WASHER, MOUNT FENDERS 6
? 425-54-14230 PLATE 2
? 425-54-14220 RUBBER FLAP 2
? 01010-31025 BOLT, MOUNT RUBBER FLAP 8
?
? F1 - USED ON MACHINES S/N 20051 - A20130.
?
?
? F2 - USED ON MACHINES S/N A20131 AND UP.
?
