| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|

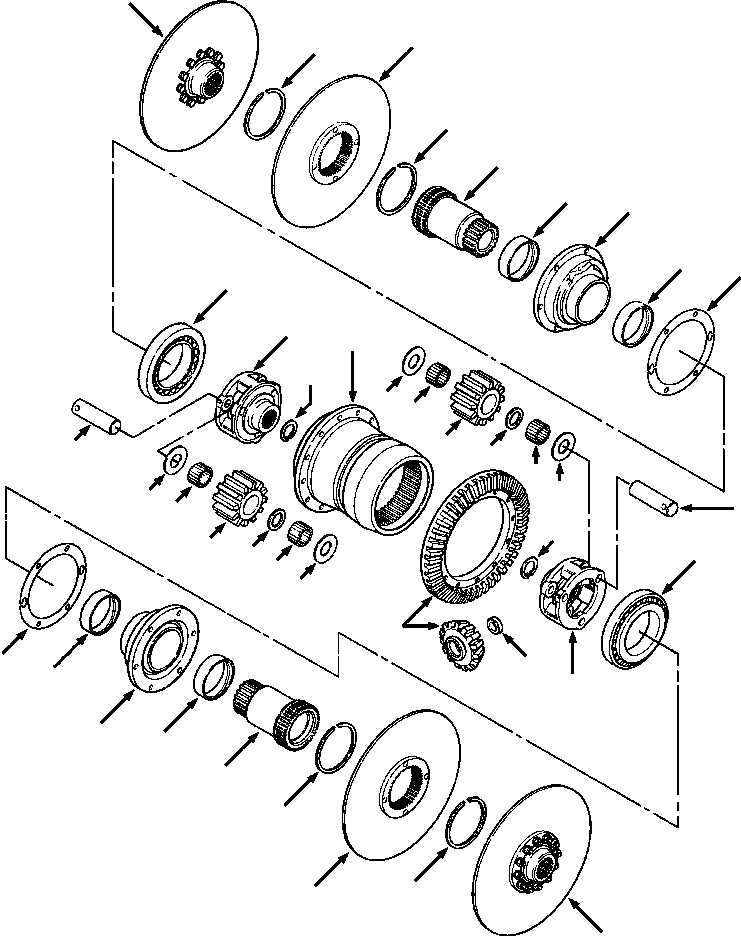

| ? | 679 191 C91 | STEERING DRIVE | 1 | SN: P086301 -- |
F1 | ||
| ? | 716 938 C1 | • CARRIER, PLANET GEAR | 2 | SN: P086301 -- |
|||
| ? | 194 298 R1 | • RING, RETAINING | 2 | SN: P086301 -- |
|||
| ? | 629 839 C1 | • GEAR, PLANET | 6 | SN: P086301 -- |
|||
| ? | 629 836 C91 | • KIT, NEEDLE BEARING | A/R | SN: P086301 -- |
|||
| ? | (NSS) | • • NEEDLE, BEARING | 20 | SN: P086301 -- |
|||
| ? | 629 838 C1 | • SPACER, NEEDLE BEARING | 6 | SN: P086301 -- |
|||
| ? | 716 939 C1 | • SHAFT, PLANET GEAR | 6 | SN: P086301 -- |
|||
| ? | 19 955 R1 | • PIN, SPRING - 1/4x1/2 | 6 | SN: P086301 -- |
|||
| ? | 659 543 C1 | • WASHER, THRUST | 12 | SN: P086301 -- |
|||
| ? | 629 248 C91 | • GEAR SET, RING AND PINION | 1 | SN: P086301 -- |
|||
| ? | 24 998 R1 | • BOLT, HEX 3/4NFx4 PINION GEAR | 1 | SN: P086301 -- |
|||
| ? | 25 796 R1 | • BOLT, HEX 1-16-20X1 GR8PHC -RING GEAR | 12 | SN: P086301 -- |
F2 | ||
| ? | 25 535 R1 | • WASHER, TYPE A PHC HDN | 12 | SN: P086301 -- |
F3 | ||
| ? | 622 260 C1 | • PLATE, RETAINER | 1 | SN: P086301 -- |
|||
| ? | 621 059 C1 | • CARRIER, RING GEAR | 1 | SN: P086301 -- |
|||
| ? | 372 181 R91 | • BEARING, TAPERED ROLLER | 2 | SN: P086301 -- |
|||
| ? | 372 182 R91 | • • CONE, BEARING | 1 | SN: P086301 -- |
|||
| ? | 92 575 H | • • CUP, BEARING | 1 | SN: P086301 -- |
|||
| ? | OR | ||||||
| ? | 372 183 R91 | • BEARING, TAPERED ROLLER | 2 | SN: P086301 -- |
|||
| ? | 372 184 R91 | • • CONE, BEARING | 1 | SN: P086301 -- |
|||
| ? | 74 420 R1 | • • CUP, BEARING | 1 | SN: P086301 -- |
|||
| ? | OR | ||||||
| ? | 621 063 C91 | • BEARING, TAPERED ROLLER | 2 | SN: P086301 -- |
|||
| ? | 622 200 C91 | • • CONE, BEARING | 1 | SN: P086301 -- |
|||
| ? | 622 201 C1 | • • CUP, BEARING | 1 | SN: P086301 -- |
|||
| ? | 621 064 C91 | • CARRIER ASSEMBLY, BEARING | 1 | SN: P086301 -- |
|||
| ? | (NSS) | • • CARRIER, BEARING | 1 | SN: P086301 -- |
|||
| ? | 621 066 C1 | • • BUSHING, CARRIER | 2 | SN: P086301 -- |
|||
| ? | 26 974 R1 | • BOLT, HEX 7/16NCx11/2 | 12 | SN: P086301 -- |
|||
| ? | 25 545 R1 | • WASHER, FLAT 7/16 | 12 | SN: P086301 -- |
|||
| ? | 621 076 C1 | • SHIM, CARRIER 0.005IN | A/R | SN: P086301 -- |
|||
| ? | 621 077 C1 | • SHIM, CARRIER 0.007IN | A/R | SN: P086301 -- |
|||
| ? | 621 078 C1 | • SHIM, CARRIER 0.020IN | A/R | SN: P086301 -- |
|||
| ? | 621 068 C2 | • GEAR, SUN | 2 | SN: P086301 -- |
|||
| ? | 621 069 C1 | • RING, RETAINING | 4 | SN: P086301 -- |
|||
| ? | 621 070 C92 | • DISC ASSEMBLY, CLUTCH | 2 | SN: P086301 -- |
|||
| ? | 621 071 C2 | • • DISC, STEERING HUB | 1 | SN: P086301 -- |
|||
| ? | 621 072 C1 | • • HUB, DISC | 2 | SN: P086301 -- |
|||
| ? | 23 394 R1 | • • RIVET 1/4x13/8 | 4 | SN: P086301 -- |
|||
| ? | 621 073 C93 | • DISC ASSEMBLY, BRAKE | 2 | SN: P086301 -- |
|||
| ? | 621 074 C3 | • • DISC, STEERING BRAKE | 1 | SN: P086301 -- |
|||
| ? | 621 075 C2 | • • HUB, DISC | 1 | SN: P086301 -- |
|||
| ? | 140 483 H | • • BOLT, HEX 3/8NCx11/4 | 12 | SN: P086301 -- |
|||
| ? | 25 534 R1 | • • WASHER, FLAT 3/8 | 24 | SN: P086301 -- |
|||
| ? | 9413 979 | • • NUT, LOCK 3/8NC | 12 | SN: P086301 -- |
|||
| ? | |||||||
| ? | F1 PART NUMBER IS A NONSERVICE PART AND IS LISTED FOR REFERENCE ONLY. ORDER INDIVIDUAL PIECE PARTS. | ||||||
| ? | |||||||
| ? | |||||||
| ? | F2 - PART NUMBER 734 204 C1: BOLT, HEX 7/16NFX7/8-RING GEAR WAS USED BEFORE D32E/P-1A SERIAL NUMBER 76135, AND D38E/P-1A SERIAL NUMBER 86428. | ||||||
| ? | |||||||
| ? | |||||||
| ? | F3 WASHER 25 535 R1 WAS ADDED ON D32E/P-1A STARTING WITH SERIAL NUMBER 76135, AND ON D38E/P-1A WITH SERIAL NUMBER 86428. | ||||||
| ? |
