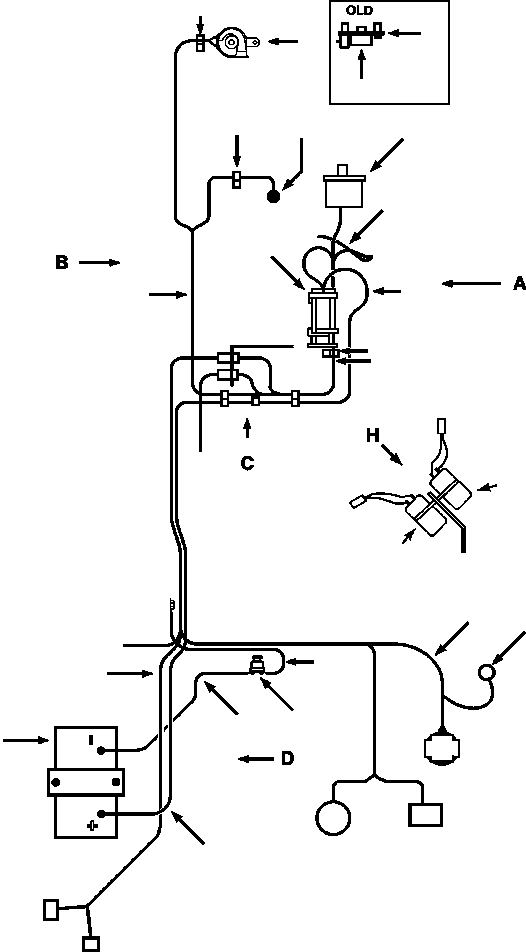

| Наименование | Страница | Код страницы |
|---|---|---|
| FIG. A6109-A1A1 ALTERNATOR | A-080 | A6109-A1A1 |
| FIG. A6112-A1A1 STARTING MOTOR - NIPPON DENSO | A-082 | A6112-A1A1 |
| FIG. E0110-01A0 BATTERY AND MOUNTING - WITH ROPS CANOPY | E-002 | E0110-01A0 |
| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | 1311 350 H91 | WIRING AND CLIPS | 1 | SN: P086301 -- |
F1 | ||
| ? | 1279 089 H1 | • CABLE, MASTER SWITCH TO GROUND | 1 | SN: P086301 -- |
|||
| ? | 180 120 | • BOLT, HEX - 3/8NCx3/4 | 1 | SN: P086301 -- |
|||
| ? | 390 305 C1 | • WASHER, FLAT - 3/8 | 1 | SN: P086301 -- |
|||
| ? | 1270 760 H1 | • CABLE, MASTER SWITCH TO BATTERY NEG. | 1 | SN: P086301 -- |
|||
| ? | 1270 790 H1 | • CABLE, STARTER TO BATTERY POS | 1 | SN: P086301 -- |
|||
| ? | 183 039 H1 | • CABLE, ENGINE TO GROUND | 1 | SN: P086301 -- |
|||
| ? | 931 833 R1 | • BOLT, HEX - M12x25 | 1 | SN: P086301 -- |
|||
| ? | 25 710 R1 | • WASHER, FLAT - 1/2 | 1 | SN: P086301 -- |
|||
| ? | 180 122 | • BOLT, HEX - 3/8NCx1 | 1 | SN: P086301 -- |
|||
| ? | 390 305 C1 | • WASHER - 3/8 | 1 | SN: P086301 -- |
|||
| ? | 1312 866 H91 | • HARNESS, MAIN ELECTRICAL | 1 | SN: P086301 -- |
|||
| ? | 1306 802 H91 | • HARNESS, REAR | 1 | SN: P086301 -- |
|||
| ? | 299 614 C1 | • CLIP, CLOSED | 1 | SN: P086301 -- |
|||
| ? | 30 041 R1 | • BOLT, HEX - M12x25 | 1 | SN: P086301 -- |
|||
| ? | 30 177 R1 | • WASHER - M12 | 1 | SN: P086301 -- |
|||
| ? | 299 400 C1 | • CLIP, CLOSED | 1 | SN: P086301 -- |
|||
| ? | 30 019 R1 | • BOLT, HEX - M10x20 | 1 | SN: P086301 -- |
|||
| ? | 30 176 R1 | • WASHER, FLAT - M10 | 1 | SN: P086301 -- |
|||
| ? | 299 400 C1 | • CLIP, CLOSED | 1 | SN: P086301 -- |
|||
| ? | 1270 322 H91 | ALTERNATOR AND CRANKING MOTOR | 1 | SN: P086301 -- |
F1 | ||
| ? | 30 003 R1 | • BOLT, HEX - M8x25 | 1 | SN: P086301 -- |
|||
| ? | 120 391 | • WASHER, FLAT - #10 | 2 | SN: P086301 -- |
|||
| ? | 31 148 R1 | • BOLT, HEX - M10x30 | 2 | SN: P086301 -- |
|||
| ? | 1312 025 H91 | SWITCHES, FUSES AND RELAYS | 1 | SN: P086301 -- |
F1 | ||
| ? | 930 587 C4 | • SWITCH, MASTER DISCONNECT | 1 | SN: P086301 -- |
|||
| ? | 1134 721 C1 | • KEY, DISCONNECT SWITCH | 2 | SN: P086301 -- |
|||
| ? | 1312 854 H91 | • RELAY, ASSEMBLY | 2 | SN: P086301 -- |
|||
| ? | 22 470 R1 | • BOLT, HEX - 1/4NCx3/4 | 2 | SN: P086301 -- |
|||
| ? | 120 392 | • WASHER, FLAT - 1/4 | 2 | SN: P086301 -- |
|||
| ? | 120 380 | • WASHER, LOCK - 1/4 | 2 | SN: P086301 -- |
|||
| ? | 120 375 | • NUT, HEX - 1/4NC | 2 | SN: P086301 -- |
|||
| ? | 933 833 R1 | • WASHER, LOCK - M6TERMINAL | 4 | SN: P086301 -- |
|||
| ? | 30 281 R1 | • NUT, HEX - M6TERMINAL | 4 | SN: P086301 -- |
|||
| ? | 1216 162 H1 | • SENDER, ENGINE COOLANT TEMP. | 1 | SN: P086301 -- |
|||
| ? | 627 670 C1 | • SWITCH, WARNING HORN | 1 | SN: P086301 -- |
|||
| ? | OR | ||||||
| ? | 453 453 C1 | • SWITCH, WARNING HORN | 1 | SN: P086301 -- |
|||
| ? | 1270 270 H91 | WARNING HORN | 1 | SN: P086301 -- |
F1 | ||
| ? | • HORN, WARNING | 1 | SN: P086301 -- |
F2 | |||
| ? | • BOLT, HEX - M8x20 | 1 | SN: P086301 -- |
||||
| ? | • WASHER, LOCK - M8 | 1 | SN: P086301 -- |
||||
| ? | • BRACKET, MOUNTING | 1 | SN: P086301 -- |
F2 | |||
| ? | • WASHER, LOCK - 7/8 | 1 | SN: P086301 -- |
||||
| ? | • NUT, HEX - 7/8NF | 1 | SN: P086301 -- |
||||
| ? | • NUT | 1 | SN: P086301 -- |
||||
| ? | 1313 809 H1 | • HORN, WARNING | 1 | SN: P086301 -- |
|||
| ? | 30 002 R1 | • BOLT, HEX - M8x20 | 1 | SN: P086301 -- |
|||
| ? | 134 309 R1 | • WASHER, LOCK - M8 | 1 | SN: P086301 -- |
|||
| ? | |||||||
| ? | F1 PART NUMBER IS A NONSERVICE PART AND IS LISTED FOR REFERENCE ONLY. ORDER INDIVIDUAL PIECE PARTS. | ||||||
| ? | |||||||
| ? | |||||||
| ? | F2 - THE OLD PARTS ARE NO LONGER AVAILABLE. REPLACE THEM WITH NEW PARTS; ITEM 19. SEE PARTS & SERVICE NEWS, REF. NO. AA00122 FOR REPLACEMENT INSTRUCTIONS. | ||||||
| ? |
