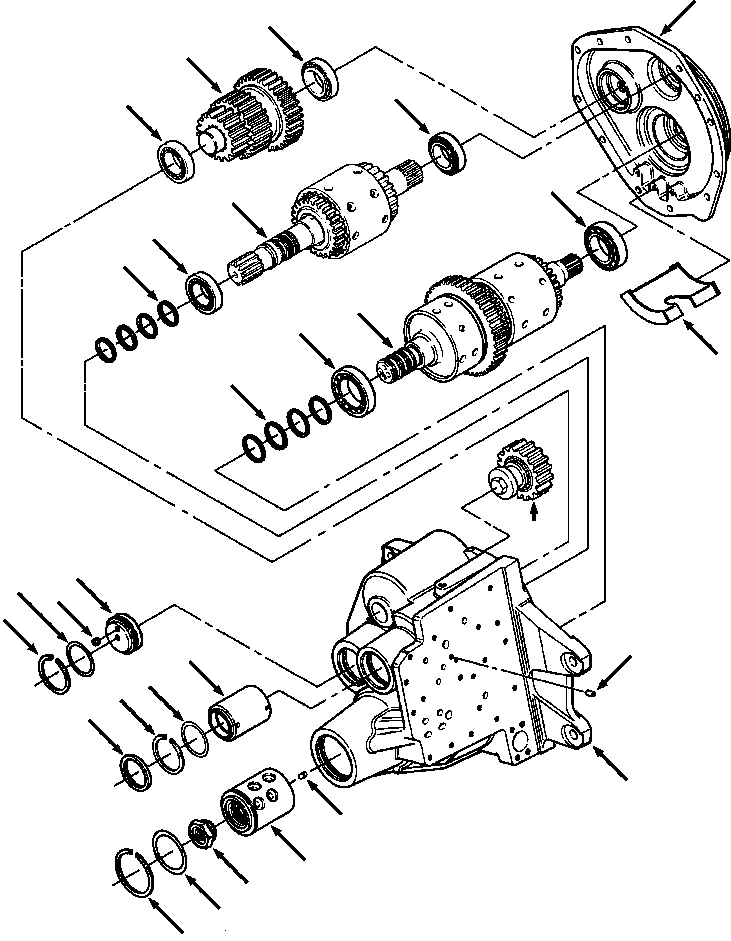

| Наименование | Страница | Код страницы |
|---|---|---|
| FIG. F2320-52A2 TRANSMISSION - DIRECTIONAL (INPUT) SHAFT | F-070 | F2320-52A2 |
| FIG. F2320-52A3 TRANSMISSION - COUNTERSHAFT | F-072 | F2320-52A3 |
| FIG. F2320-52A4 TRANSMISSION - REVERSE IDLER GEAR | F-074 | F2320-52A4 |
| FIG. F2320-52A5 TRANSMISSION - RANGE (OUTPUT) SHAFT | F-076 | F2320-52A5 |
| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | 716 969 C94 | HOUSING AND INTERNAL PARTS | 1 | SN: P086301 -- |
F1 | ||
| ? | 709 896 C91 | • CASE ASSY, TRANSMISSION | 1 | SN: P086301 -- |
|||
| ? | 19 904 R1 | • • PIN, DOWEL - 1/2x1 | 2 | SN: P086301 -- |
|||
| ? | 709 589 C1 | • COVER, REAR | 1 | SN: P086301 -- |
|||
| ? | 24 861 R1 | • BOLT, HEX 1/2NCx11/4 | 12 | SN: P086301 -- |
|||
| ? | 25 546 R1 | • WASHER, FLAT 1/2 | 12 | SN: P086301 -- |
|||
| ? | 1298 009 H91 | • BEARING, TAPERED ROLLER | 4 | SN: P086301 -- |
|||
| ? | OR | ||||||
| ? | 631 169 C91 | • BEARING, TAPERED ROLLER | 4 | SN: P086301 -- |
|||
| ? | 631 170 C91 | • • CONE, BEARING | 1 | SN: P086301 -- |
|||
| ? | 376 463 C1 | • • CUP, BEARING | 1 | SN: P086301 -- |
|||
| ? | 709 895 C1 | • MANIFOLD, DIRECTIONAL CLUTCH | 1 | SN: P086301 -- |
|||
| ? | 20 040 R1 | • PIN, DOWEL - 1/4x3/4 | 2 | SN: P086301 -- |
|||
| ? | 716 841 C3 | • SEAL, RING | 4 | SN: P086301 -- |
F2 | ||
| ? | 705 495 C1 | • SHIM 0.005IN | A/R | SN: P086301 -- |
F2 | ||
| ? | 705 496 C1 | • SHIM 0.007IN | A/R | SN: P086301 -- |
F2 | ||
| ? | 705 497 C1 | • SHIM 0.030IN | A/R | SN: P086301 -- |
F2 | ||
| ? | 28 099 R1 | • RING, RETAINING | 2 | SN: P086301 -- |
|||
| ? | 619 586 C91 | • SEAL, OIL | 1 | SN: P086301 -- |
|||
| ? | 705 055 C1 | • COVER, COUNTERSHAFT | 1 | SN: P086301 -- |
|||
| ? | 22 410 R1 | • RING, SEAL | 1 | SN: P086301 -- |
F2 | ||
| ? | 444 661 | • PLUG, PORT | 2 | SN: P086301 -- |
|||
| ? | 1298 010 H91 | • BEARING, TAPERED ROLLER | 1 | SN: P086301 -- |
|||
| ? | OR | ||||||
| ? | 654 422 C91 | • BEARING, TAPERED ROLLER | 1 | SN: P086301 -- |
|||
| ? | 630 694 C91 | • • CONE, BEARING | 1 | SN: P086301 -- |
|||
| ? | 630 695 C1 | • • CUP, BEARING | 1 | SN: P086301 -- |
|||
| ? | OR | ||||||
| ? | 716 760 C91 | • BEARING, TAPERED ROLLER | 1 | SN: P086301 -- |
|||
| ? | 716 761 C91 | • • CONE, BEARING | 1 | SN: P086301 -- |
|||
| ? | 716 762 C1 | • • CUP, BEARING | 1 | SN: P086301 -- |
|||
| ? | 55 490 R91 | • BEARING, TAPERED ROLLER | 1 | SN: P086301 -- |
|||
| ? | 55 491 R91 | • CONE, BEARING | 1 | SN: P086301 -- |
|||
| ? | 55 492 R1 | • CUP, BEARING | 1 | SN: P086301 -- |
|||
| ? | 705 499 C1 | • MANIFOLD, RANGE CLUTCH | 1 | SN: P086301 -- |
|||
| ? | 259 246 R1 | • RING, SEAL | 1 | SN: P086301 -- |
F2 | ||
| ? | 716 840 C2 | • RING, SEAL | 4 | SN: P086301 -- |
F2 | ||
| ? | 705 492 C1 | • SHIM 0.005IN | A/R | SN: P086301 -- |
F2 | ||
| ? | 705 493 C1 | • SHIM 0.007IN | A/R | SN: P086301 -- |
F2 | ||
| ? | 705 494 C1 | • SHIM 0.030IN | A/R | SN: P086301 -- |
F2 | ||
| ? | 28 101 R1 | • RING, RETAINING | 1 | SN: P086301 -- |
|||
| ? | 716 979 C1 | • FITTING, ADAPTER | 1 | SN: P086301 -- |
|||
| ? | 301 016 R1 | • RING, SEAL | 1 | SN: P086301 -- |
F2 | ||
| ? | 709 798 C1 | • BAFFLE, SCAVENGE TUBE | 1 | SN: P086301 -- |
|||
| ? | 26 309 R1 | • BOLT, HEX 3/8NCx3/4 | 3 | SN: P086301 -- |
|||
| ? | 25 534 R1 | • WASHER, FLAT 3/8 | 3 | SN: P086301 -- |
|||
| ? | |||||||
| ? | F1 PART NUMBER IS A NONSERVICE PART AND IS LISTED FOR REFERENCE ONLY. ORDER INDIVIDUAL PIECE PARTS. | ||||||
| ? | |||||||
| ? | |||||||
| ? | F2 - PART OF TRANSMISSION SERVICE KIT 741 453 C94. | ||||||
| ? |
