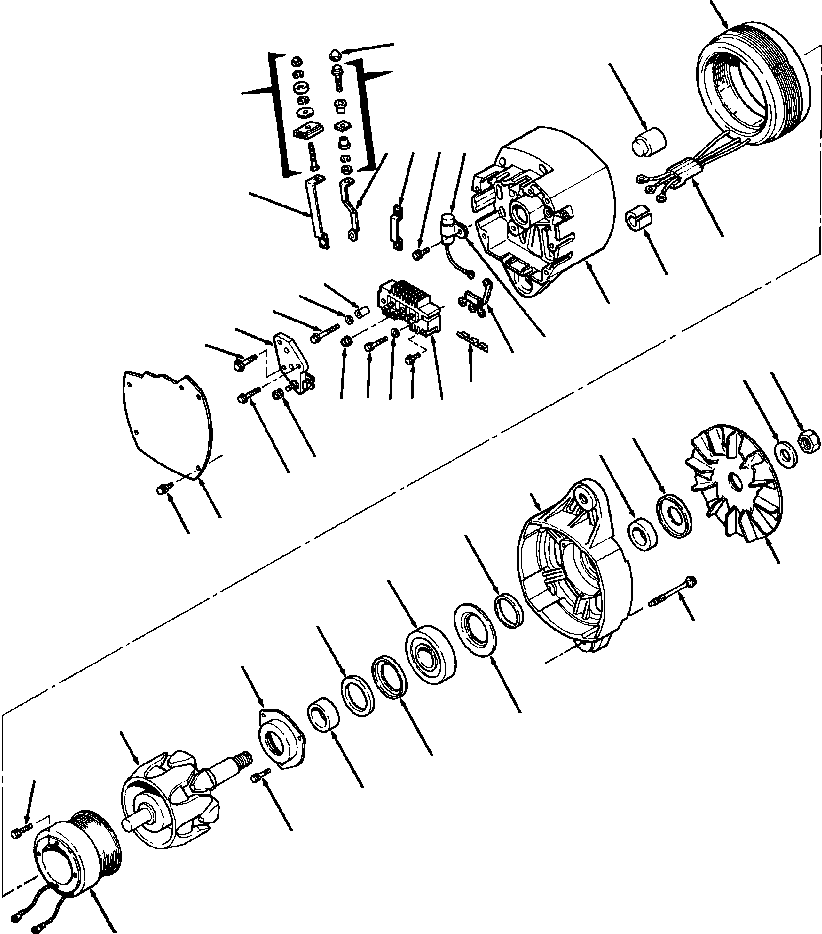

| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | 1286 822 H91 | ALTERNATOR ASSEMBLY - 24V, 50 AMP | 1 | ||||
| ? | 1268 345 H1 | • HOUSING, RECTIFIER | 1 | ||||
| ? | 1268 346 H91 | • ROTOR ASSY | 1 | ||||
| ? | 1268 347 H91 | • STATOR ASSY | 1 | ||||
| ? | 1268 348 H1 | • FRAME | 1 | ||||
| ? | 1268 349 H91 | • BRIDGE ASSY, RECTIFIER | 1 | ||||
| ? | 1268 350 H1 | • DIODE TRIO | 1 | ||||
| ? | 1268 351 H91 | • FIELD COIL & SUPPORT ASSY | 1 | ||||
| ? | 1268 352 H1 | • COVER, END | 1 | ||||
| ? | 1218 115 H1 | • REGULATOR & RESISTOR ASSY | 1 | ||||
| ? | 1268 354 H1 | • CONNECTOR, OUTPUT TERMINAL | 1 | ||||
| ? | 1268 355 H1 | • CONNECTOR, RELAY TERMINAL | 1 | ||||
| ? | 1268 356 H1 | • CONNECTOR, REGULATOR | 1 | ||||
| ? | 1268 357 H91 | • PACKAGE, OUTPUT TERMINAL | 1 | ||||
| ? | 1268 358 H91 | • PACKAGE, RELAY TERMINAL | 1 | ||||
| ? | 1268 359 H1 | • CAPACITOR | 1 | ||||
| ? | 98 819 | • BRACKET, CAPACITOR MOUNTING | 1 | ||||
| ? | 1218 121 H1 | • PLATE, RETAINER - INSIDE | 1 | ||||
| ? | 1268 360 H1 | • PLATE, RETAINER - OUTSIDE | 1 | ||||
| ? | 1213 268 H1 | • BEARING, BALL | 1 | ||||
| ? | 1268 361 H1 | • COLLAR - INSIDE | 1 | ||||
| ? | 1218 123 H1 | • COLLAR - OUTSIDE | 1 | ||||
| ? | 1268 362 H91 | • FAN AND BAFFLE ASSY | 1 | ||||
| ? | 1218 126 H1 | • NUT, CONNECTOR | 1 | ||||
| ? | 1218 126 H1 | • NUT, TERMINAL STUD | 1 | ||||
| ? | 19 830 R1 | • NUT, SHAFT | 1 | ||||
| ? | 1268 363 H1 | • SCREW, MOUNTING | 3 | ||||
| ? | 1268 364 H1 | • SCREW ASSY, MOUNTING | 2 | ||||
| ? | 1268 363 H1 | • SCREW, MOUNTING | 5 | ||||
| ? | 1213 252 H1 | • SCREW, ATTACHING | 4 | ||||
| ? | 1268 365 H1 | • SCREW & WASHER ASSY, MOUNTING | 1 | ||||
| ? | 1268 366 H1 | • SCREW ASSY, MOUNTING | 1 | ||||
| ? | 1268 367 H1 | • SCREW ASSY, ATTACHING | 1 | ||||
| ? | 1268 365 H1 | • SCREW & WASHER ASSY, MOUNTING | 1 | ||||
| ? | 1268 368 H1 | • WASHER, FELT | 1 | ||||
| ? | 88 803 | • WASHER, FELT | 1 | ||||
| ? | 1268 369 H1 | • WASHER | 1 | ||||
| ? | 1268 370 H1 | • WASHER, SHAFT | 1 | ||||
| ? | 389 603 C91 | • BEARING, RECTIFIER HOUSING | 1 | ||||
| ? | 1268 371 H1 | • BOLT, THRU | 4 | ||||
| ? | 1213 242 H1 | • BUSHING, PIVOT | 1 | ||||
| ? | 1268 372 H1 | • BUSHING, MOUNTING SCREW | 1 | ||||
| ? | 1213 274 H1 | • CAP, RELAY TERMINAL | 1 | ||||
| ? | 1268 373 H1 | • CUP, FELT WASHER | 1 | ||||
| ? | 1268 374 H1 | • GROMMET | 1 | ||||
| ? | 1268 375 H1 | • INSULATOR | 1 | ||||
| ? | 1218 131 H1 | • SHIELD, BEARING RETAINER PLATE | 1 | ||||
| ? | 634 335 C91 | PACKAGE, SMALL PARTS | 1 |
