Содержание Graders Komatsu GD530A/AW-2B/2C w/S6D102E S/N 203163-Up(GD530A2C)

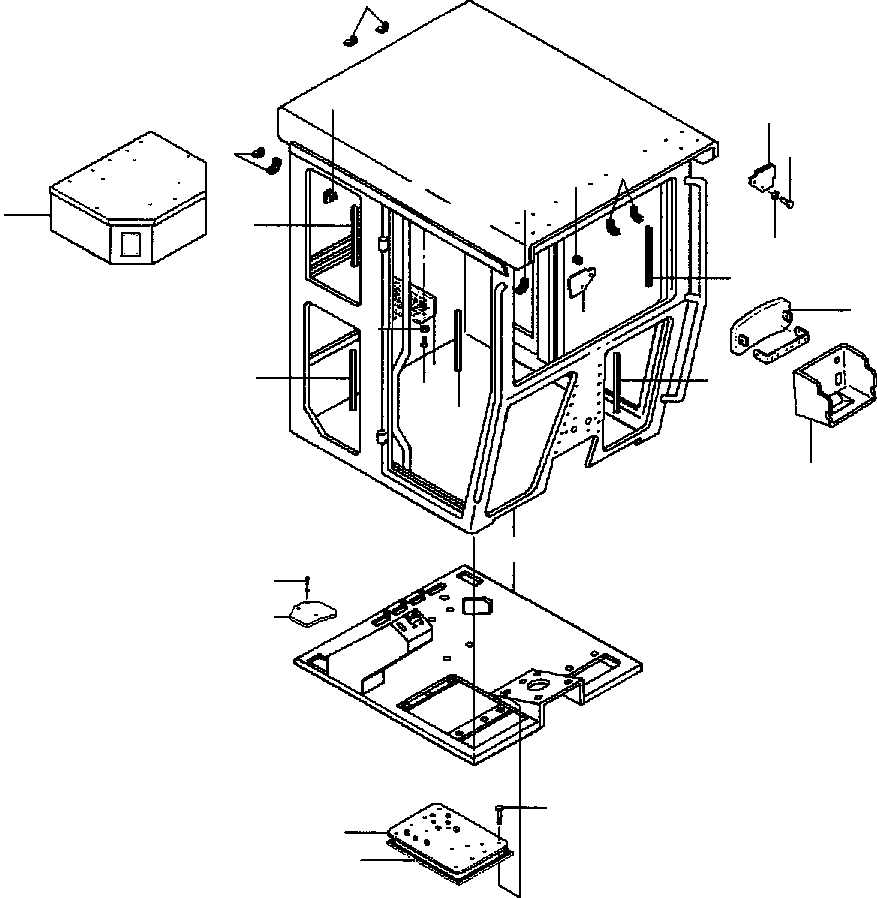

OPEN ROPS CAB ASSEMBLY FULL HEIGHT(13-038 : 13CDG531.002)
Номер на схеме Каталожный номер Название Количество Детали
? 1433 099 H92 CAB ASSEMBLY 1
? 1433 915 H91 • CAB WELDMENT 1
? 1259 658 H91 • COVER - L.H 1
? 180 020 • BOLT 8
? 120 392 • WASHER, FLAT 8
? 1259 657 H91 • COVER - R.H 1
? 120 302 • GROMMET, TOP LIGHTS 2
? • MIRROR (SEE PG 13-162) -29 13FR4151.001
? 1434 775 H91 • COVER, FRONT WIPER MOTOR 1
? 24 539 R1 • PLUG, BUTTON - 1 IN 1
? 180 016 • BOLT 4
? 120 392 • WASHER, FLAT 4
? 1252 463 H1 • ANGLE, UPPER SIDE - AIR RECIRCULATION 2
? 1262 660 H1 • TRIM, DOOR EDGE - 167 IN 2 F1
? 1262 660 H1 • TRIM, BOTTOM SIDE WINDOW EDGE - 95.3 IN 2 F1
? 1262 660 H1 • TRIM, TOP SIDE WINDOW EDGE- 90 IN 2 F1
? 1262 660 H1 • TRIM, EDGE - 2.1 IN 2 F1
? 1262 660 H1 • TRIM, EDGE - 4 IN 4 F1
? 1262 660 H1 • TRIM, EDGE - 3 IN 2 F1
? 1262 660 H1 • TRIM, WINDOW EDGE - 158 IN 1 F1
? 1262 660 H1 • TRIM, BOTTOM FRONT WINDOW EDGE - 109 IN 2 F1
? 1434 778 H1 • COVER 1
? 180 016 • BOLT 3
? 120 392 • WASHER, FLAT 3
? 149 149 • SEAL - 11.91 IN 1
? 104 696 • ADHESIVE, RUBBER A/R
? 1433 790 H1 • HOOK, COAT 1
? 23 979 R1 • SCREW, MACHINE 2
? 1433 538 H91 • HARNESS, CAB WIRING 1
? 299 415 C1 • CLAMP, CABLE 2
? 120 375 • NUT, HEX 2
? PLATE, FLOOR (SEE PG 12-032) -29 12BVP809.002
? 180 124 BOLT 8
? 25 724 R1 WASHER, FLAT 8
? BOX ASSEMBLY, SEAT (SEE PG 13-046) -29 13CDG530.002
?
? BOX ASSEMBLY, HEATER (SEE PG 13-126) -29 13DZG581.001
? BOX ASSEMBLY, HEATER (SEE PG 13-128) -29 13DZG530.001
? BOX ASSEMBLY, AIR CONDITIONER/HEATER (SEE PG 13-138) 13DZG582.001
? BOX ASSEMBLY, AIR CONDITIONER/HEATER (SEE PG 13-140) 13DZG530.003
?
?
? F1 - CUT FROM BULK EDGE TRIM.
?
