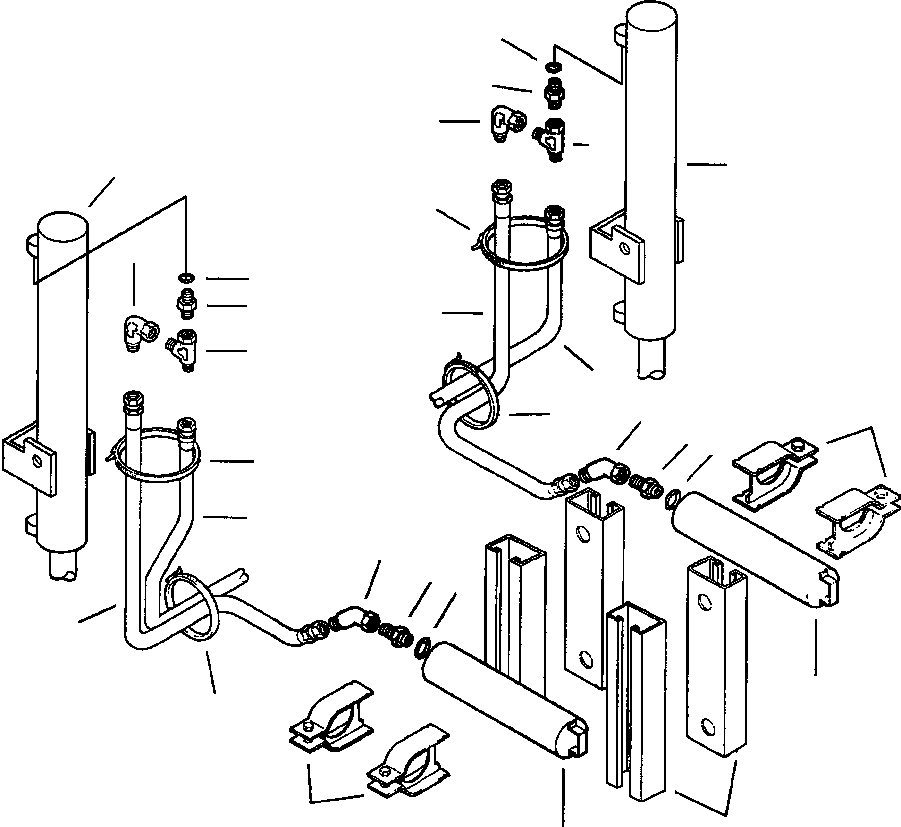

| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | 1281 857 H91 | ACCUMULATOR INSTALLATION, DRAWBAR LIFT | 1 | F1 | |||
| ? | 9410 281 | • ELBOW, SWIVEL NUT - 90 DEGREE | 2 | F2 | |||
| ? | 9410 333 | • TEE, SWIVEL NUT | 2 | ||||
| ? | 1430 824 H1 | • HOSE | 2 | F2 | |||
| ? | 08034-20834 | • STRAP, TIE | 4 | F2 | |||
| ? | 9410 255 | • ELBOW - 45 DEGREE | 2 | F2 | |||
| ? | 380 632 R1 | • CONNECTOR, REDUCING | 2 | ||||
| ? | 570 828 R1 | • O-RING | 2 | ||||
| ? | • ACCUMULATOR (SEE PG 10-240) | -29 | 10CD4151.001 | ||||
| ? | 153 810 | • CHANNEL | 4 | F2 | |||
| ? | 48 204 | • STUD | 8 | F2 | |||
| ? | 25 544 R1 | • WASHER, FLAT | 8 | F2 | |||
| ? | 17 044 R1 | • NUT, HEX | 8 | F2 | |||
| ? | 1279 538 H1 | • CLAMP, ACCUMULATOR | 4 | ||||
| ? | CONNECTOR (SEE PG 10-038) | -29 | 10AH4151.003 | ||||
| ? | 364 855 R1 | O-RING | 2 | ||||
| ? | HOSE (SEE PG 10-028) | -29 | 10AH4151.004 | ||||
| ? | HOSE (SEE PG 10-038) | -29 | 10AH4151.003 | ||||
| ? | CYLINDER, DRAWBAR LIFT (SEE PG 10-212) | -29 | 10BR3603.006 | ||||
| ? | |||||||
| ? | F1 - NOT SERVICED. REFERENCE ONLY. | ||||||
| ? | |||||||
| ? | |||||||
| ? | F2 - ITEM 9 ONLY QTY. 2 USED ON MACHINES WITH CIRCLE SHIFT CYLINDER | ||||||
| ? | R.H. AND L.H. BALANCE OF ITEMS NOT USED ON MACHINES WITH CIRCLE | ||||||
| ? | SHIFT CYLINDER R.H. AND L.H. |
