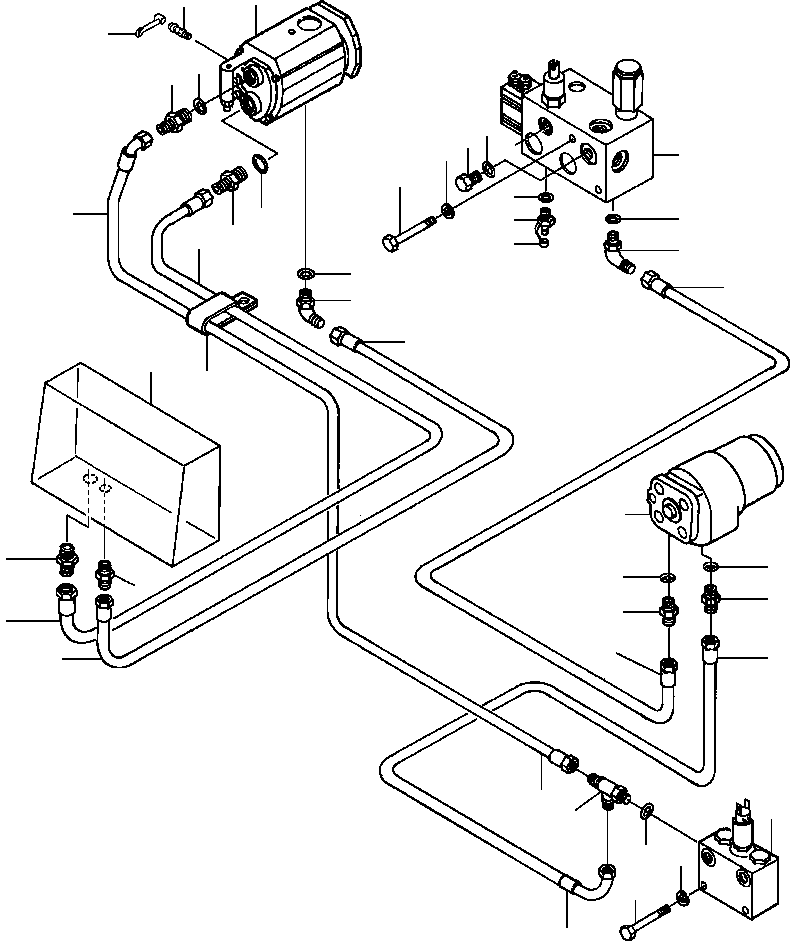

Номер на схеме |
Каталожный номер |
Название |
Количество |
Детали |
|
|
|
? |
|
TANK, HYDRAULIC OIL (SEE PG 10-236) |
-29 |
|
10BZG8II.002 |
|
|
? |
|
TANK, HYDRAULIC OIL (SEE PG 10-238) |
-29 |
|
10BZG381.001 |
|
|
? |
9402 713 |
CONNECTOR, REDUCING |
1 |
|
|
|
|
? |
607 728 R1 |
CONNECTOR, REDUCING |
1 |
|
|
|
|
? |
1438 917 H1 |
HOSE |
1 |
|
|
|
|
? |
347 765 R1 |
CONNECTOR, REDUCING |
1 |
|
|
|
|
? |
307 915 R1 |
O-RING |
1 |
|
|
|
|
? |
1279 512 H2 |
HOSE |
1 |
|
|
|
|
? |
9411 104 |
ELBOW - 45 DEGREE |
1 |
|
|
|
|
? |
364 839 R1 |
O-RING |
1 |
|
|
|
|
? |
|
PUMP, STEERING AND BRAKE (SEE PG 10-104) |
-29 |
|
10AVG8II.002 |
|
|
? |
68 842 C1 |
PLUG, ADAPTER |
1 |
|
|
|
|
? |
333 457 R1 |
CONNECTOR, REDUCING |
1 |
|
|
|
|
? |
296 247 R1 |
O-RING |
1 |
|
|
|
|
? |
1437 063 H1 |
COUPLING, QUICK DISCONNECT |
1 |
|
|
|
|
? |
162 144 |
CAP, DUST |
2 |
|
|
|
|
? |
24 845 R1 |
BOLT |
2 |
|
|
|
|
? |
9410 358 |
PLUG |
1 |
|
|
|
|
? |
364 839 R1 |
O-RING |
1 |
|
|
|
|
? |
1222 539 H2 |
HOSE |
1 |
|
|
|
|
? |
9411 131 |
TEE |
1 |
|
|
|
|
? |
570 828 R1 |
O-RING |
1 |
|
|
|
|
? |
|
VALVE, BRAKE CHECK (SEE PG 10-138) |
-29 |
|
10BHG8II.004 |
|
|
? |
120 382 |
WASHER, LOCK |
4 |
|
|
|
|
? |
277 232 R1 |
BOLT |
2 |
|
|
|
|
? |
1222 539 H2 |
HOSE |
1 |
|
|
|
|
? |
9410 203 |
CONNECTOR |
1 |
|
|
|
|
? |
570 828 R1 |
O-RING |
1 |
|
|
|
|
? |
|
CONTROL UNIT, ORBITROL (SEE PG 10-132) |
-29 |
|
10BHG532.002 |
|
|
? |
570 828 R1 |
O-RING |
1 |
|
|
|
|
? |
587 639 R1 |
CONNECTOR |
1 |
|
|
|
|
? |
1278 042 H1 |
HOSE |
1 |
|
|
|
|
? |
9410 976 |
ELBOW - 90 DEGREE |
1 |
|
|
|
|
? |
364 839 R1 |
O-RING |
1 |
|
|
|
|
? |
|
BLOCK, JUNCTION (SEE PG 10-134) |
-29 |
|
10BHG8II.002 |
|
|
? |
|
BLOCK, JUNCTION (SEE PG 10-136) |
-29 |
|
10BHG8II.003 |
|
|
? |
161 847 |
COUPLING, QUICK DISCONNECT |
1 |
|
|
|
|
? |
71 517 |
• O-RING |
1 |
|
|
|
|
? |
27 843 R1 |
CLAMP, HOSE |
1 |
|
|
|
