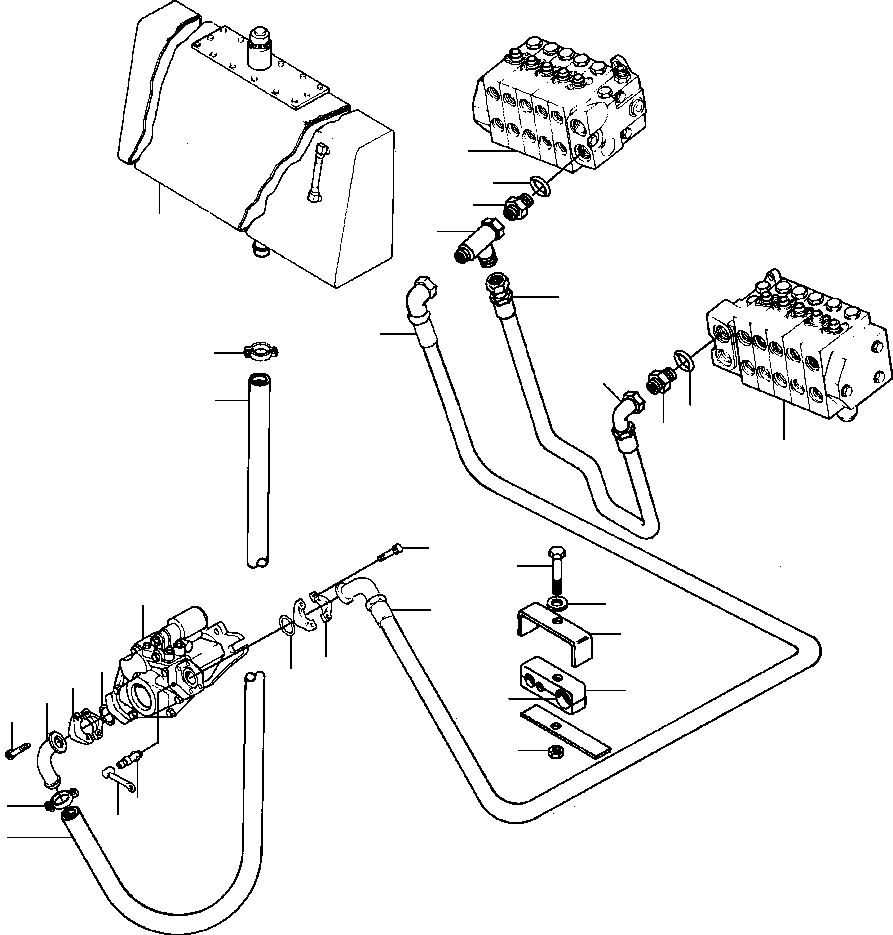

Номер на схеме |
Каталожный номер |
Название |
Количество |
Детали |
|
|
|
? |
|
TANK, HYDRAULIC OIL (SEE PG 10-236) |
-29 |
|
10BZG8II.002 |
|
|
? |
|
TANK, HYDRAULIC OIL (SEE PG 10-238) |
-29 |
|
10BZG381.001 |
|
|
? |
122 718 |
CLAMP, HOSE |
2 |
|
|
|
|
? |
160 957 |
HOSE |
1 |
|
|
|
|
? |
142 390 H45 |
INSERT, BEADED - 90 DEGREE |
1 |
|
|
|
|
? |
24 862 R1 |
BOLT |
4 |
|
|
|
|
? |
300 525 R1 |
FLANGE, SPLIT |
2 |
|
|
|
|
? |
293 726 R1 |
O-RING |
1 |
|
|
|
|
? |
|
PUMP, HYDRAULIC (SEE PG 10-100) |
-29 |
|
10AVG581.001 |
|
|
? |
161 847 |
COUPLING, QUICK DISCONNECT |
1 |
|
|
|
|
? |
71 517 |
• O-RING |
1 |
|
|
|
|
? |
162 144 |
CAP, DUST |
1 |
|
|
|
|
? |
343 906 R1 |
O-RING |
1 |
|
|
|
|
? |
877 949 C2 |
FLANGE, SPLIT |
2 |
|
|
|
|
? |
140 483 H |
BOLT |
4 |
|
|
|
|
? |
1430 797 H2 |
HOSE |
1 |
|
|
|
|
? |
275 804 R1 |
BOLT |
2 |
|
|
|
|
? |
25 534 R1 |
WASHER, FLAT |
2 |
|
|
|
|
? |
1285 966 H1 |
BRACKET, CLAMP |
2 |
|
|
|
|
? |
1285 967 H1 |
CLAMP, HOSE |
2 |
|
|
|
|
? |
1430 809 H1 |
SUPPORT, HOSE |
1 |
|
|
|
|
? |
9413 979 |
NUT, HEX |
2 |
|
|
|
|
? |
9410 335 |
TEE |
1 |
|
|
|
|
? |
1278 044 H2 |
HOSE |
1 |
|
|
|
|
? |
574 479 R1 |
CONNECTOR |
2 |
|
|
|
|
? |
364 885 R1 |
O-RING |
2 |
|
|
|
|
? |
|
VALVE, CONTROL - L.H. 7 VALVES (SEE PG 10-140) |
-29 |
|
10BHG381.003 |
|
|
? |
|
VALVE, CONTROL - L.H. 6 VALVES (SEE PG 10-142) |
-29 |
|
10BHG381.002 |
|
|
? |
|
VALVE, CONTROL - L.H. 5 VALVES (SEE PG 10-144) |
-29 |
|
10BHG381.001 |
|
|
? |
|
VALVE, CONTROL - R.H. 7 VALVES (SEE PG 10-146) |
-29 |
|
10BHG381.007 |
|
|
? |
|
VALVE, CONTROL - R.H. 6 VALVES (SEE PG 10-148) |
-29 |
|
10BHG381.006 |
|
|
? |
|
|
|
|
|
|
|
? |
|
VALVE, CONTROL - R.H. 5 VALVES (SEE PG 10-150) |
-29 |
|
10BHG381.005 |
|
|
? |
|
VALVE, CONTROL - R.H. 4 VALVES (SEE PG 10-152) |
-29 |
|
10BHG381.004 |
|
