Содержание Graders Komatsu GD650A-2CY S/N 211061-211069(GD650AK)

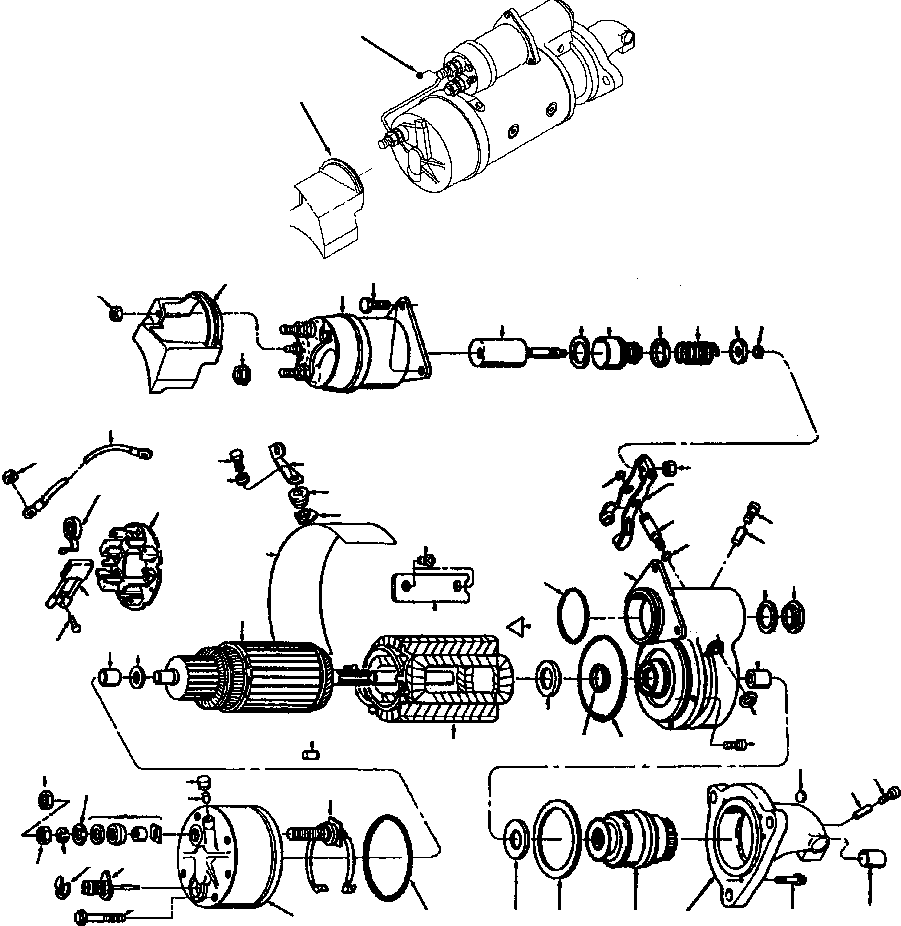

FIG. A6112-A3A3 STARTING MOTOR - DELCO REMY 42MT - 24V - 7.5 KW(A-082 : A6112-A3A3)
Номер на схеме Каталожный номер Название Количество Детали
? 1219 521 H92 MOTOR, STARTING 1 R1
? 1223 255 H1 • FRAME 1
? 88 797 • BUSHING 1 F2
? 1223 256 H1 • ARMATURE 1
? 1228 605 H1 • FIELD COIL 4
? 1223 265 H1 • LEAD 1
? NOT USED
? 1228 447 H91 • LEVER, HOUSING 1
? 1307 315 H1 • BUSHING, LEVER HOUSING 1 F2
? 1228 604 H1 • DRIVE ASSEMBLY 1
? 1223 260 H91 • DRIVE, HOUSING 1
? 1211 288 H1 • BUSHING, DRIVE HOUSING 1 F2
? 1284 359 H1 • SWITCH 1
? 1303 561 H1 • BRUSH 4 F1
? 1283 451 H1 • SPRING BRUSH 4 F1
? 1284 360 H91 • BRUSH PLATE ASSEMBLY 1
? 1228 450 H1 • PLUNGER 1
? 1210 071 H1 • BOOT 1
? 1210 073 H1 • PLUNGER, SPRING 1
? 1307 316 H1 • SHIFT, LEVER 1 F3
? 1211 356 H1 • WASHER 1 F2
? 1211 286 H1 • WASHER, BRAKE 1 F2
? 1232 885 H1 • WASHER, THRUST 1 F2
? 120 239 • WASHER, LOCK A/R
? NOT USED
? 1211 267 H1 • NUT, FLD COIL CONNECTION TO SWITCH ATCH 1
? 19 839 R1 • NUT, PLUNGER ROD GUIDE ADJUSTING 1 F2,F3
? 1305 531 H1 • NUT, ASM SHUNT LEAD TO SWITCH ATCH 1
? 1249 322 H1 • NUT, TERM-CE FRAME 2
? 1211 267 H1 • NUT & WASHER ASSEMBLY-CE FRAME 1
? 1211 292 H1 • BOLT, BRUSH LEAD & FLD COIL LEAD 4 F1
? 1223 263 H1 • BOLT & WASHER ASSEMBLY-CE FRAME ATCH 6 F1,F2
? 1283 448 H1 • BOLT, CONNECTOR TO FIELD ATCH 3
? 1251 333 H1 • BOLT, DRIVE HSG ATCH 6
? 1245 107 H1 • BOLT, LEVER HSG ATCH 5
? 1245 108 H1 • BOLT, POLE SHOE 8
? 1439 193 H1 • STUD 1
? 1307 320 H1 • WASHER 1
? 1210 070 H1 • WASHER, PLUNGER ASSEMBLY 1
? 1307 320 H1 • WASHER, TERM-CE FRAME 1
? 1250 268 H1 • CONNECTOR, FLD TERM TO SWITCH 1
? 1307 318 H1 • CUP, OIL RESERVOIR-CE 1 F2
? 1211 277 H1 • CUP, OIL RESERVOIR-DE 1 F2
? 1307 318 H1 • CUP, OIL RESERVOIR-LEVER HSG 1 F2
? 1211 151 H1 • GASKET, INSPECTION PLUG -LEVER HSG 1 F2,F3
? 1228 453 H1 • INSULATOR, FLD COIL-CE 1
? 1210 061 H1 • INSULATOR, FLD TERM (INSIDE FRAME) 1
? 1210 062 H1 • INSULATOR, FLD TERM (OUTSIDE FRAME) 1
? 1223 269 H91 • INSULATION, PKG-CE TERM 1
? NOT USED
? 1277 066 H1 • LEAD, CE TERM TO SOLENOID SWITCH 1
? 1307 319 H1 • O-RING, BETWEEN SWITCH & LEVER HSG 1 F2,F3
? 347 360 R1 • O-RING, BETWEEN DR HSG & LEVER HSG 1 F2,F3
? 22 411 R1 • O-RING, BETWEEN LEVER HSG & FRAME 1 F2
? 1307 321 H1 • O-RING, ON MOTOR FRAME CE END 1 F1,F2
? 352 219 R1 • O-RING, SHIFT LEVER SHAFT (3/8 INCH OD) 1 F3
? 355 967 R1 • O-RING, SHIFT LEVER SHAFT (1/2 INCH OD) 1 F3
? 1228 454 H1 • PIN, SPRING (IN FRAME) 2
? 1210 066 H1 • PLUG, INSPECTION - LEVER HSG 1
? NOT USED
? 1211 263 H1 • POLE, SHOE 4
? 1210 072 H1 • RETAINER, PLUNGER SPRING (1 13/64 HOLE) 1
? 1210 074 H1 • RETAINER, PLUNGER SPRING (13/32 HOLE) 1
? NOT USED
? 1211 285 H1 • SEAL, OIL - LEVER HSG 1 F2
? 1211 152 H1 • SEAL, SHIFT LEVER 1 F3
? 1305 530 H1 • TERMINAL, SHIELD 1
? 213 262 R1 • SNAP RING, PLUNGER ASSEMBLY 1 F3
? 213 262 R1 • SNAP RING, SHIFT LEVER SHAFT 1
? 1307 322 H1 • WICK, OIL RESERVOIR-CE 1 F2
? 1302 333 H1 • WICK, OIL RESERVOIR-DE 1 F2
? 1307 323 H1 • WICK, OIL RESERVOIR-LEVER HSG 1 F2
? 103 088 NUT (M10-32) 1
? 1308 919 H1 SHIELD, WIRING 1
?
? SERVICE REPAIR KITS
?
?
? F1 24 VOLT BRUSH REPAIR KIT - P/N 1223 268 H91
?
?
? F2 BUSHING REPAIR KIT - P/N 1223 266 H91
?
?
? F3 SHIFT LEVER REPAIR KIT - P/N 1223 267 H91
?
