Каталог Komatsu

Наименование	Страница	Код страницы

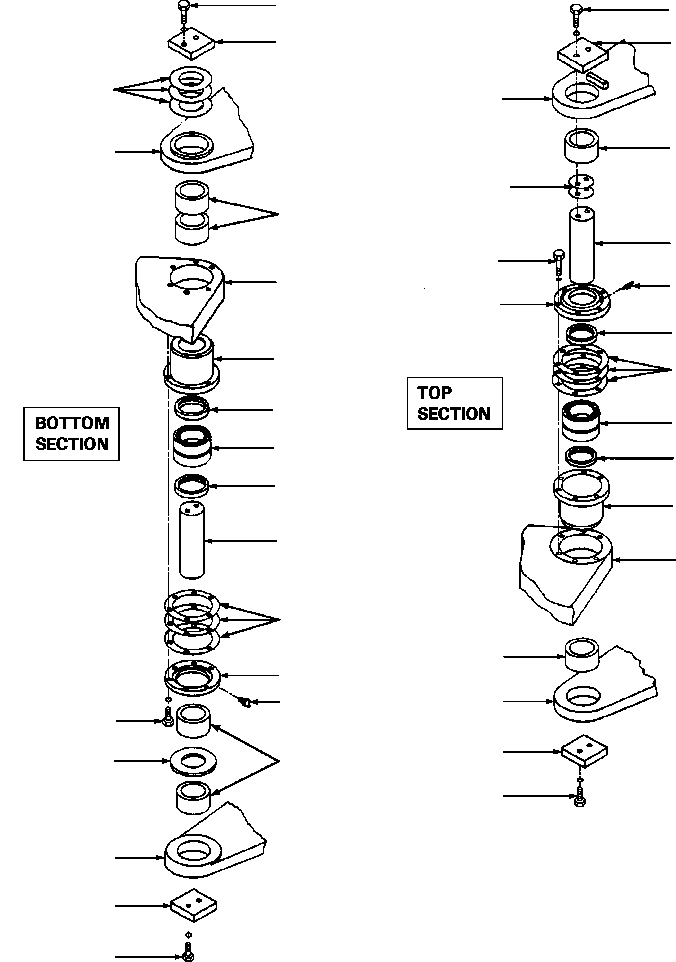

FIG. J5110-01A0 MAIN FRAME - GD650-2C - R.H. AND L.H. 90° BLADE SUSPENSION	J-002	J5110-01A0
FIG. J5110-01A0 MAIN FRAME - GD650-2C - R.H. AND L.H. 90° BLADE SUSPENSION	J-002	J5110-01A0

Номер на схеме	Каталожный номер	Название	Количество
?	24 876 R1	BOLT	8
?	25 537 R1	WASHER, FLAT	8
?	159 274	PLATE, RETAINING	4
?		OR
?		FRAME WELDMENT FRONT (SEE FIG. J5110-01A1)		J5110-01A1
?	159 275	SPACER, BEARING	6
?	159 288 H45	PIN	2
?	25 285 R1	BOLT	6
?	120 384	WASHER, LOCK	6
?	25 526 R1	NUT, HEX	6
?	140 020	CAP, BEARING	1
?	109 461	FITTING, GREASE	2
?	80 054	SEAL, OIL	2
?	54 102	SHIM 0.005	6
?	54 103	SHIM 0.007	6
?	54 104	SHIM 0.020	2
?	140 000	BEARING	2
?	159 271	CARTRIDGE, BEARING	2
?		OR
?		FRAME WELDMENT REAR (SEE FIG. J5110-01A1)		J5110-01A1
?	159 276	WASHER, THRUST	1
?	140 021	CAP, BEARING	1
?	19 974	SEAL, OIL	2
?	102 095	SHIM 0.005	3
?	102 096	SHIM 0.007	3
?	102 091	SHIM 0.020	1
?	25 507 R1	BOLT	6
?	120 384	WASHER, LOCK	6
?	25 526 R1	NUT, HEX	6
?	1431 489 H1	SHIM	2
?	1436 643 H1	BAFFLE	2
?	1436 642 H1	PLATE	4
?	24 841 R1	BOLT - BAFFLE TO REAR FRAME	8
?	25 534 R1	WASHER, FLAT	8
?	25 522 R1	NUT, HEX	8
?	140 483 H	BOLT - BAFFLE TO FRONT FRAME	8
?	25 534 R1	WASHER, FLAT	8

?
