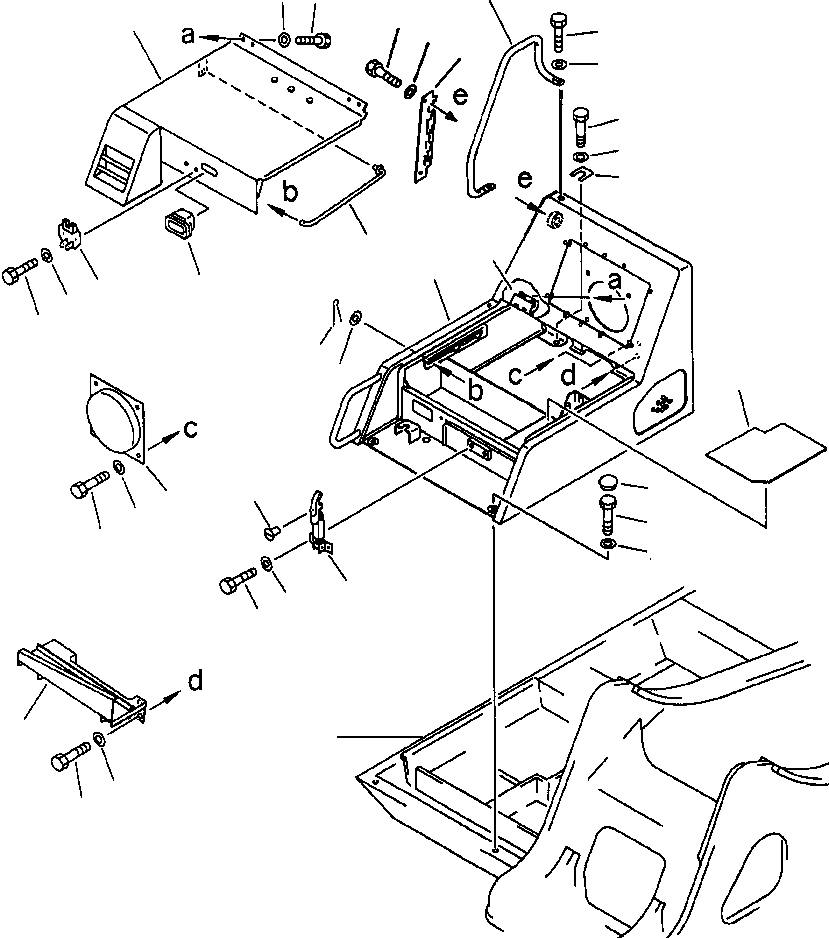

| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | 207-54-52720 | COMPARTMENT, BATTERY | 1 | ||||
| ? | 20Y-54-12650 | • HINGE (WELDED) | 2 | ||||
| ? | 207-979-5250 | COVER, BATTERY CASE | 1 | ||||
| ? | 205-54-67660 | SUPPORT | 1 | ||||
| ? | 01010-50820 | BOLT | 2 | ||||
| ? | 01643-30823 | WASHER | 2 | ||||
| ? | 205-54-76260 | CATCHER | 1 | ||||
| ? | 205-54-76280 | • ROTOR ASSEMBLY | 1 | ||||
| ? | 01010-50820 | BOLT | 2 | ||||
| ? | 01643-30823 | WASHER | 2 | ||||
| ? | 207-979-5270 | HANDLE | 1 | ||||
| ? | 01643-31032 | WASHER | 2 | ||||
| ? | 04050-13018 | PIN, COTTER | 1 | ||||
| ? | 209-54-12280 | HANDLE | 1 | ||||
| ? | 01010-51025 | BOLT | 4 | ||||
| ? | 175-43-41160 | WASHER | 4 | ||||
| ? | 207-54-52472 | COVER | 1 | ||||
| ? | 01010-51220 | BOLT | 4 | ||||
| ? | 01643-31232 | WASHER | 4 | ||||
| ? | 207-978-5220 | COVER | 1 | ||||
| ? | 01010-51225 | BOLT | 5 | ||||
| ? | 01643-31232 | WASHER | 5 | ||||
| ? | 01010-51230 | BOLT | 3 | ||||
| ? | 01010-51245 | BOLT | 1 | ||||
| ? | 01643-31232 | WASHER | 4 | ||||
| ? | 20Y-54-18190 | PLATE | 1 | ||||
| ? | 20Y-54-12660 | RAIL, HAND | 1 | ||||
| ? | 01010-51230 | BOLT | 2 | ||||
| ? | 01643-31232 | WASHER | 2 | ||||
| ? | 198-54-41941 | CAP | 2 | ||||
| ? | 207-54-52350 | SHEET | 1 | ||||
| ? | 20Y-54-14741 | PLATE, FUEL LEVEL SIGHT GAUGE | 1 | ||||
| ? | 01010-50816 | BOLT | 2 | ||||
| ? | 01643-30823 | WASHER | 2 | ||||
| ? | FRAME, REVOLVING (SEE PG 04-018) | -29 | 04-018 |
