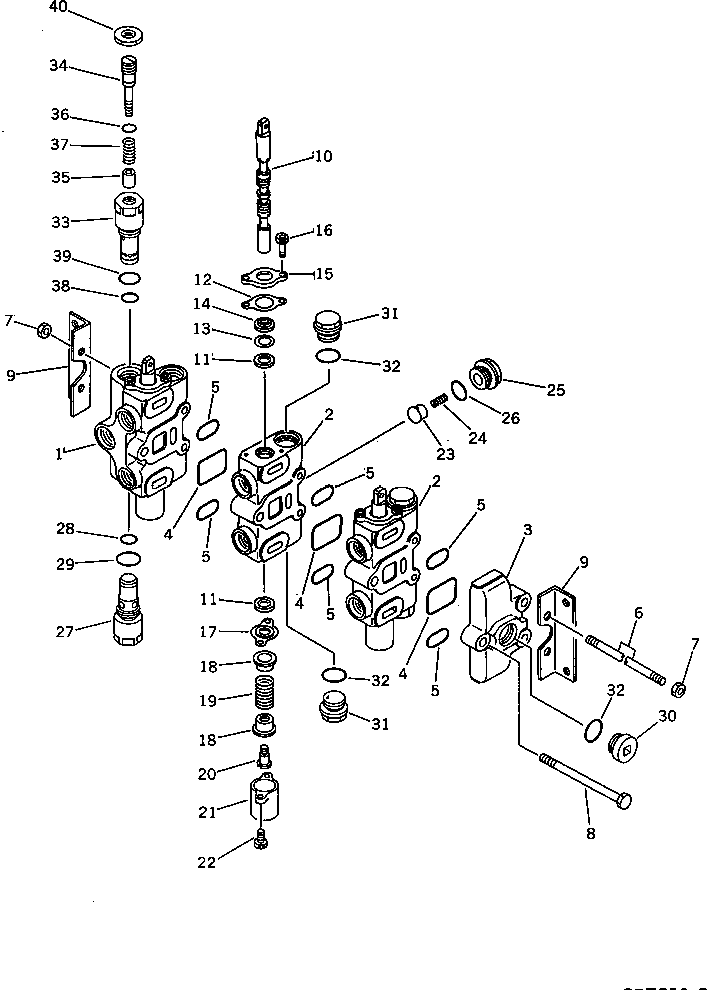

| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | 700-23-12001 | VALVE ASS'Y | 1 | SN: 10002- |
|||
| ? | 700-22-11121 | • BODY | 1 | SN: 10002- |
|||
| ? | 700-22-11141 | • BLOCK | 2 | SN: 10002- |
|||
| ? | 700-22-12150 | • COVER | 1 | SN: 10002- |
|||
| ? | 07000-13040 | • O-RING | 4 | SN: 10002- |
|||
| ? | 700-22-11450 | • O-RING | 8 | SN: 10002- |
|||
| ? | 700-23-12110 | • STUD | 2 | SN: 10002- |
|||
| ? | 01580-00806 | • NUT | 4 | SN: 10002- |
|||
| ? | 700-23-12120 | • BOLT | 1 | SN: 10002- |
|||
| ? | 700-22-11220 | • ANGLE | 2 | SN: 10002- |
|||
| ? | □700-22-11710 | • SPOOL | 3 | SN: 10002- |
|||
| ? | 700-22-11252 | • U-PACKING | 6 | SN: 10002- |
|||
| ? | 700-22-11420 | • GASKET | 6 | SN: 10002- |
|||
| ? | 700-22-11430 | • COLLAR | 6 | SN: 10002- |
|||
| ? | 700-22-11261 | • SEAL | 3 | SN: 10002- |
|||
| ? | 700-22-11270 | • PLATE | 3 | SN: 10002- |
|||
| ? | □01252-40616 | • BOLT | 6 | SN: 10002- |
|||
| ? | 700-22-11281 | • PLATE | 3 | SN: 10002- |
|||
| ? | □700-22-11290 | • RETAINER | 6 | SN: 10002- |
|||
| ? | 700-22-11311 | • SPRING | 3 | SN: 10002- |
|||
| ? | □700-22-11320 | • PLUG | 3 | SN: 10002- |
|||
| ? | 700-22-11331 | • COVER | 3 | SN: 10002- |
|||
| ? | □01252-40616 | • BOLT | 6 | SN: 10002- |
|||
| ? | 700-22-12350 | • SPRING | 3 | SN: 10002- |
|||
| ? | 700-22-12340 | • BALL | 3 | SN: 10002- |
|||
| ? | 700-22-11351 | • PLUG | 3 | SN: 10002- |
|||
| ? | 07002-12434 | • O-RING | 3 | SN: 10002- |
|||
| ? | 700-22-11380 | • PLUG | 1 | SN: 10002- |
|||
| ? | 07000-12014 | • O-RING | 1 | SN: 10002- |
|||
| ? | 07002-02434 | • O-RING | 1 | SN: 10002- |
|||
| ? | 700-22-11370 | • PLUG | 1 | SN: 10002- |
|||
| ? | 700-22-11360 | • PLUG | 6 | SN: 10002- |
|||
| ? | 07002-02434 | • O-RING | 7 | SN: 10002- |
|||
| ? | □700-20-54000 | • VALVE ASS'Y | 1 | SN: 10002- |
|||
| ? | 700-20-51110 | • • SLEEVE | 1 | SN: 10002- |
|||
| ? | ☆ | • • • POPPET | 1 | SN: 10002- |
|||
| ? | 700-20-51122 | • • • PISTON | 1 | SN: 10002- |
|||
| ? | 07000-12014 | • • O-RING | 1 | SN: 10002- |
|||
| ? | 700-80-62230 | • • SPRING | 1 | SN: 10002- |
|||
| ? | 07002-02434 | • • O-RING | 1 | SN: 10002- |
|||
| ? | 07000-02010 | • • O-RING | 1 | SN: 10002- |
|||
| ? | 700-20-51130 | • • NUT | 1 | SN: 10002- |
