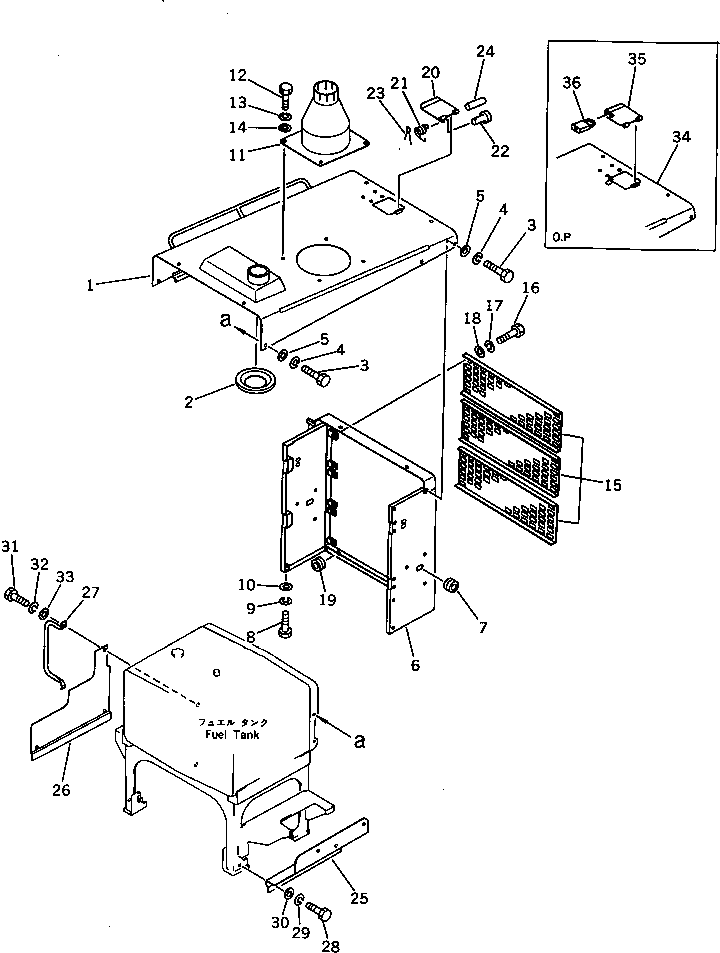

| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | 234-45-32140 | BONNET | 1 | SN: 10002- |
|||
| ? | 234-45-32160 | BOOT | 1 | SN: 10002- |
|||
| ? | 01010-51025 | BOLT | 11 | SN: 10002- |
|||
| ? | 01602-21030 | WASHER | 11 | SN: 10002- |
|||
| ? | ♦234-54-13252 | WASHER | 11 | SN: 10002- |
|||
| ? | 234-54-32110 | GUARD,RADIATOR | 1 | SN: 10002- |
|||
| ? | 08037-03614 | GROMMET | 2 | SN: 10002- |
|||
| ? | 01010-51025 | BOLT | 7 | SN: 10002- |
|||
| ? | 01602-21030 | WASHER | 4 | SN: 10002- |
|||
| ? | 01643-31032 | WASHER | 4 | SN: 10002- |
|||
| ? | 234-54-32190 | SUPPORT | 1 | SN: 10002- |
|||
| ? | 01010-51025 | BOLT | 4 | SN: 10002- |
|||
| ? | 01602-21030 | WASHER | 4 | SN: 10002- |
|||
| ? | ♦234-54-13252 | WASHER | 4 | SN: 10002- |
|||
| ? | 234-54-32220 | PANEL | 3 | SN: 10002- |
|||
| ? | □01010-51225 | BOLT | 12 | SN: 10002- |
|||
| ? | 01602-21236 | WASHER | 12 | SN: 10002- |
|||
| ? | 01643-31232 | WASHER | 12 | SN: 10002- |
|||
| ? | 08037-01008 | GROMMET | 2 | SN: 10002- |
|||
| ? | 232-54-22510 | COVER | 1 | SN: 10002- |
|||
| ? | 233-54-22520 | SPRING | 1 | SN: 10002- |
|||
| ? | □04205-10616 | PIN | 2 | SN: 10002- |
|||
| ? | □04050-11610 | PIN | 4 | SN: 10002- |
|||
| ? | 131-54-11270 | PIN | 1 | SN: 10002- |
|||
| ? | 234-54-32180 | PLATE | 1 | SN: 10002- |
|||
| ? | □234-54-32170 | PLATE | 1 | SN: 10002- |
|||
| ? | 234-54-32210 | STAY | 1 | SN: 10002- |
|||
| ? | 01010-51030 | BOLT | 4 | SN: 10002- |
|||
| ? | 01602-21030 | WASHER | 4 | SN: 10002- |
|||
| ? | 01643-31032 | WASHER | 4 | SN: 10002- |
|||
| ? | 01010-51030 | BOLT | 3 | SN: 10002- |
|||
| ? | 01602-21030 | WASHER | 3 | SN: 10002- |
|||
| ? | 01643-31032 | WASHER | 3 | SN: 10002- |
|||
| ? | 234-54-32370 | BONNET (OP) | 1 | SN: 10002- |
|||
| ? | 232-54-58121 | COVER (OP) | 1 | SN: 10002- |
|||
| ? | 09460-00002 | LOCK (OP) | 1 | SN: 10002- |
