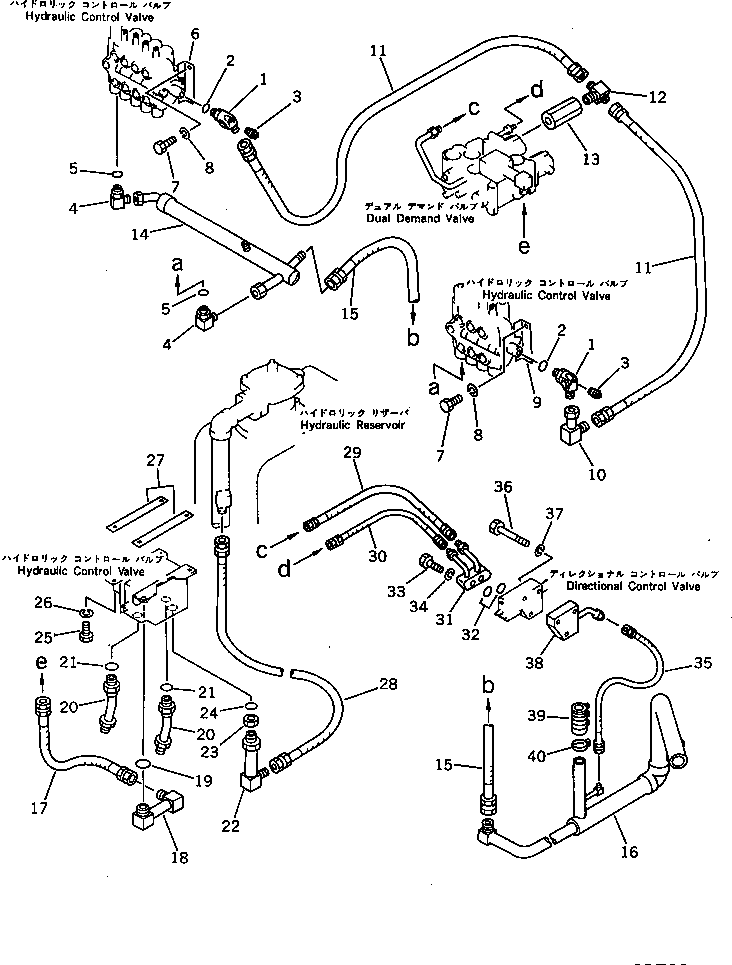

| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | ▩238-60-31540 | ELBOW | 2 | SN: 10002- |
|||
| ? | 07002-12034 | O-RING (KIT) | 2 | SN: 10002- |
|||
| ? | □07042-30108 | PLUG | 2 | SN: 10002- |
|||
| ? | 232-60-66270 | ELBOW | 2 | SN: 10002- |
|||
| ? | 07002-12034 | O-RING (KIT) | 2 | SN: 10002- |
|||
| ? | 234-60-32560 | SEAT | 1 | SN: 10002- |
|||
| ? | 01010-50820 | BOLT | 6 | SN: 10002- |
|||
| ? | 01602-20825 | WASHER | 6 | SN: 10002- |
|||
| ? | □234-60-32570 | SEAT | 1 | SN: 10002- |
|||
| ? | 234-60-32530 | ELBOW | 1 | SN: 10002- |
|||
| ? | 07108-20511 | HOSE | 2 | SN: 10002- |
|||
| ? | 234-60-32540 | ELBOW | 1 | SN: 10002- |
|||
| ? | 234-60-32280 | VALVE | 1 | SN: 10002- |
|||
| ? | 234-60-32420 | TUBE | 1 | SN: 10002- |
|||
| ? | 07102-21007 | HOSE | 1 | SN: 10002- |
|||
| ? | □234-60-32660 | TUBE | 1 | SN: 10002- |
|||
| ? | 07108-21005 | HOSE | 1 | SN: 10002- |
|||
| ? | 234-60-32330 | TUBE | 1 | SN: 10002- |
|||
| ? | 07002-13334 | O-RING (KIT) | 1 | SN: 10002- |
|||
| ? | 234-60-32340 | TUBE | 2 | SN: 10002- |
|||
| ? | 07002-12434 | O-RING (KIT) | 2 | SN: 10002- |
|||
| ? | 234-60-32470 | ELBOW | 1 | SN: 10002- |
|||
| ? | 07239-13320 | NUT | 1 | SN: 10002- |
|||
| ? | 07002-13334 | O-RING (KIT) | 1 | SN: 10002- |
|||
| ? | ♦01010-51020 | BOLT | 4 | SN: 10002- |
|||
| ? | 01602-21030 | WASHER | 4 | SN: 10002- |
|||
| ? | 234-60-32520 | SEAT | 2 | SN: 10002- |
|||
| ? | 07102-21009 | HOSE | 1 | SN: 10002- |
|||
| ? | 07108-20406 | HOSE | 1 | SN: 10002- |
|||
| ? | 07108-20205 | HOSE | 1 | SN: 10002- |
|||
| ? | 234-60-32361 | TUBE | 1 | SN: 10002- |
|||
| ? | 07000-13022 | O-RING (KIT) | 2 | SN: 10002- |
|||
| ? | ♦01010-51040 | BOLT | 4 | SN: 10002- |
|||
| ? | 01602-21030 | WASHER | 4 | SN: 10002- |
|||
| ? | 07102-20304 | HOSE | 1 | SN: 10002- |
|||
| ? | □01010-51090 | BOLT | 3 | SN: 10002- |
|||
| ? | 01602-21030 | WASHER | 3 | SN: 10002- |
|||
| ? | 234-60-32410 | BLOCK | 1 | SN: 10002- |
|||
| ? | 07260-23214 | HOSE | 1 | SN: 10002- |
|||
| ? | 07281-00489 | CLAMP | 4 | SN: 10002- |
