Содержание Wheel Loaders DRESSTA 512 S/N C003001-UP(512)

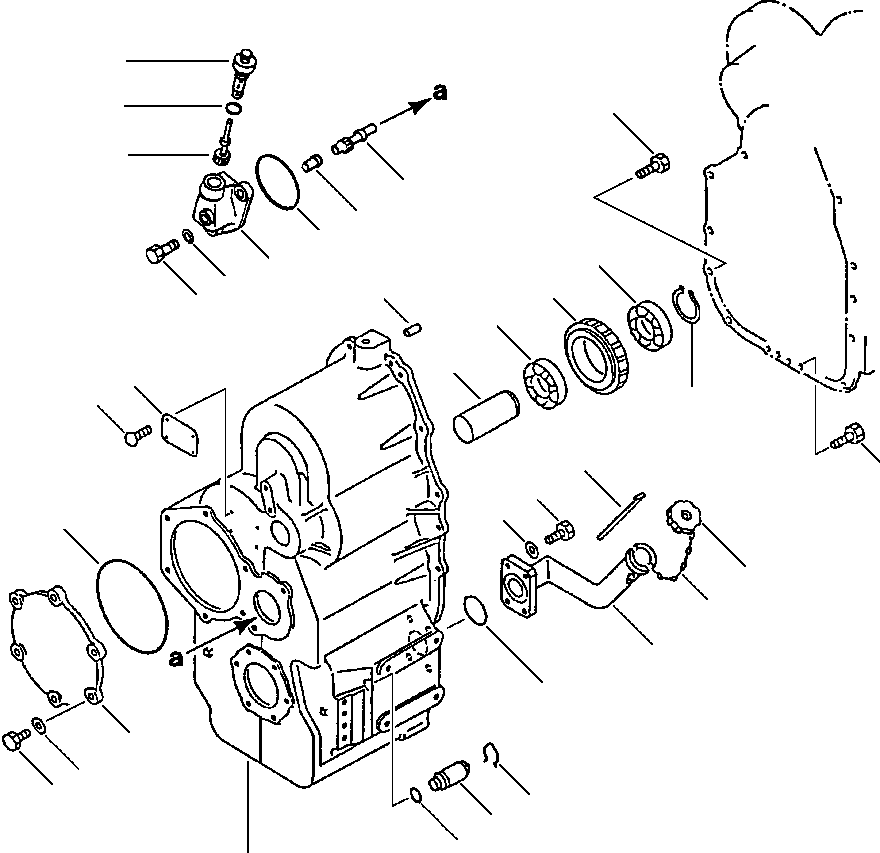

TRANSMISSION (REAR CASE)(02-008 : 02-008)
Номер на схеме Каталожный номер Название Количество Детали
? 417-15-18103 CASE ASSEMBLY, REAR (TRANSMISSION) 1
? (NSS) • CASE 1
? (NSS) • SHAFT, IDLER 1
? 417-15-12823 • GEAR, IDLER 1
? 06033-06211 • BEARING 2
? 04064-05520 • RING SNAP 1
? 419-15-18240 • PLUG, OIL DRAIN 1
? 07002-02434 • O-RING, OIL DRAIN PLUG 1 F1
? 419-15-18251 • RING, SNAP 1
? 417-15-14140 • COVER 1 F2
? 07000-05200 • O-RING, COVER 1 F1
? 01010-31235 • BOLT 6
? 01643-31232 • WASHER 6
? 04020-01434 • PIN 2
? 417-15-13452 • COVER, SPEEDOMETER PICK-UP 1 F3
? 419-15-14231 • COVER 1 F4
? 01010-51235 • BOLT, COVER 2 F3
? 01010-31230 • BOLT, COVER 2 F4
? 01643-31232 • WASHER 2 F3,F4
? 07000-02075 • O-RING, COVER 1 F1,F3,F4
? 417-15-13460 • BUSHING 1 F3
? 417-15-13511 • GEAR, WORM 1 F3
? 417-15-13530 • GEAR, SPEEDOMETER 1 F3
? 07002-02434 • O-RING, SPEEDOMETER SLEEVE 1 F1,F3
? 417-15-13432 • SLEEVE, SPEEDOMETER PICK-UP 1 F3
? 01010-31235 • BOLT, MOUNT REAR CASE 12
? 01010-31240 • BOLT, MOUNT REAR CASE 1
? 22X-22-13171 • PLATE, NAME (LIMITED SUPPLY) 1
? 04418-03060 • SCREW 4
? 416-15-18110 FILLER, OIL 1
? 07000-02065 O-RING, FILLER 1 F1
? 01010-31040 BOLT 4
? 01643-31032 WASHER 4
? 6136-21-7190 CHAIN, FILLER CAP 1
? 6136-21-7120 CAP, FILLER 1
? 6136-21-7180 • GASKET, FILLER CAP 1
? 417-15-14432 GAUGE, OIL LEVEL 1
? 419-15-18131 GASKET, LIQUID (NOT SHOWN) A/R F1
? TRANSMISSION SERVICE KIT (SEE PG 02-040) -29 02-040
?
? F1 - INCLUDED IN SERVICE KIT 416-15-05121.
?
?
? F2 - ON MACHINES NOT EQUIPPED WITH GROUND DRIVEN
? STEERING. FOR MACHINES EQUIPPED WITH GROUND
? DRIVEN STEERING SEE PG 04-019.
?
? F3 - ON MACHINES EQUIPPED WITH SPEEDOMETER.
?
?
? F4 - ON MACHINES NOT EQUIPPED WITH SPEEDOMETER.
?
