Содержание Wheel Loaders DRESSTA 542 S/N U004001-U004100 & C004101-UP(542)

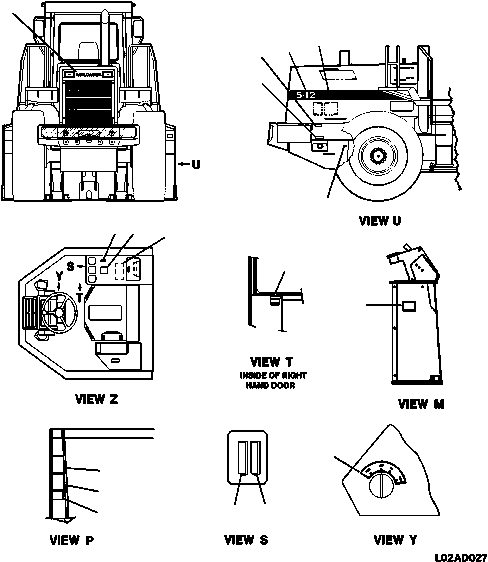

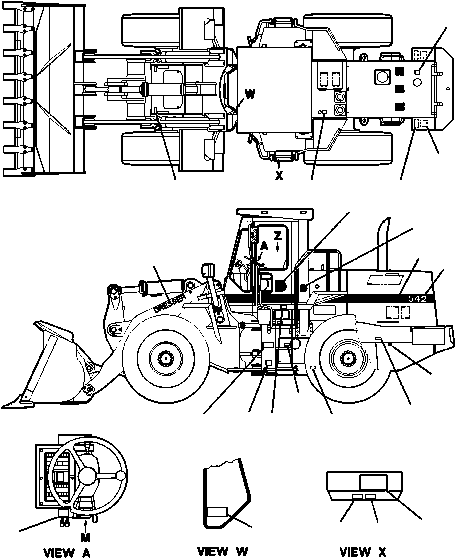

FIG NO. 9802 PRODUCT GRAPHICS ENGLISH(09-002 : 02AD0542.001)
Номер на схеме Каталожный номер Название Количество Детали
? 161 177 H6 PRODUCT GRAPHIC, CAUTION - LADDERS 2
? 1170 724 C2 PRODUCT GRAPHIC, EMERGENCY EXIT 1
? 204 166 C2 PRODUCT GRAPHIC, CAUTION - PRESSURIZED COOLING
? SYSTEM 1
? 2754 473 R3 PRODUCT GRAPHIC, CAUTION - HYDRAULIC RESERVOIR 1
? 421-93-A1180 PRODUCT GRAPHIC, CAUTION - BATTERY INSTRUCTION 2
? 421-93-A1160 PRODUCT GRAPHIC, CAUTION - BATTERY CHARGING 2
? 421-93-A1120 PRODUCT GRAPHIC, IMPORTANT - TRANSMISSION
? OIL LEVEL 1
? 421-93-A1150 PRODUCT GRAPHIC, CAUTION - DRAIN AIR TANK 3
? 421-93-A1130 PRODUCT GRAPHIC, CAUTION - OPERATOR INSTRUCTIONS 1
? 421-93-A1170 PRODUCT GRAPHIC, WARNING - OPERATOR MANUAL 1
? 421-93-A1140 PRODUCT GRAPHIC, DANGER - FRAME LOCKING BAR 1
? 421-93-A1210 PRODUCT GRAPHIC, CAUTION - ENGINE FAN 2
? 423-93-11420 PLATE - DANGER - ARTICULATION AREA 2
? 09683-30070 PLATE - STARTING SWITCH 1
? 09685-00003 PLATE - EQUIPMENT CONTROL LEVER LOCK 1
? 421-93-11132 PLATE - EQUIPMENT CONTROL LEVER 1
? 421-93-A1220 PRODUCT GRAPHIC, IMPORTANT - TRANSMISSION OIL
? TEMPERATURE 1
? 421-93-12220 PLATE - REAR AXLE TRUNNION REMOTE GREASE 1
? 424-93-11421 PLATE - FUSE IDENTIFICATION 1
? 424-93-11432 PLATE - FUSE IDENTIFICATION 1
? 421-93-12320 PLATE - MONITOR PANEL OPERATION 1
? 423-93-11930 PLATE - RELAY POSITION 1
? 421-93-A1110 PRODUCT GRAPHIC, IMPORTANT - ETHER START 1
? 1124 685 C2 PRODUCT GRAPHIC, IMPORTANT - DIESEL FUEL 1
? 1120 093 C2 PRODUCT GRAPHIC - LIFT AND TIE DOWN 4
? 1104 217 C2 PRODUCT GRAPHIC - ENGINE OIL DRAIN 1
? 424-93-A1130 PRODUCT GRAPHIC - SERVICE CHART 1
? 424-93-A1140 PRODUCT GRAPHIC - MODEL DESIGNATION 2
? 1212 891 H1 PRODUCT GRAPHIC, DRESSER TRADEMARK - FOR MACHINES
? WITH CAB 2
? 1213 508 H1 PRODUCT GRAPHIC, DRESSER TRADEMARK - FOR MACHINES
? WITH OPEN ROPS CANOPY 2
? 1212 545 H1 PRODUCT GRAPHIC - DRESSER 2
? 1212 598 H1 PRODUCT GRAPHIC - PAYLOADER 1
? PRODUCT GRAPHIC - STRIPE 3 F1
? (NSS) PLATE, PRODUCT IDENTIFICATION 1
? 04418-13060 SCREW 4
? 743 483 C3 PRODUCT GRAPHIC - ROLLOVER CAUTION 1
?
? F1 - CUT FROM BULK STRIPE 743 444 C1.
?
