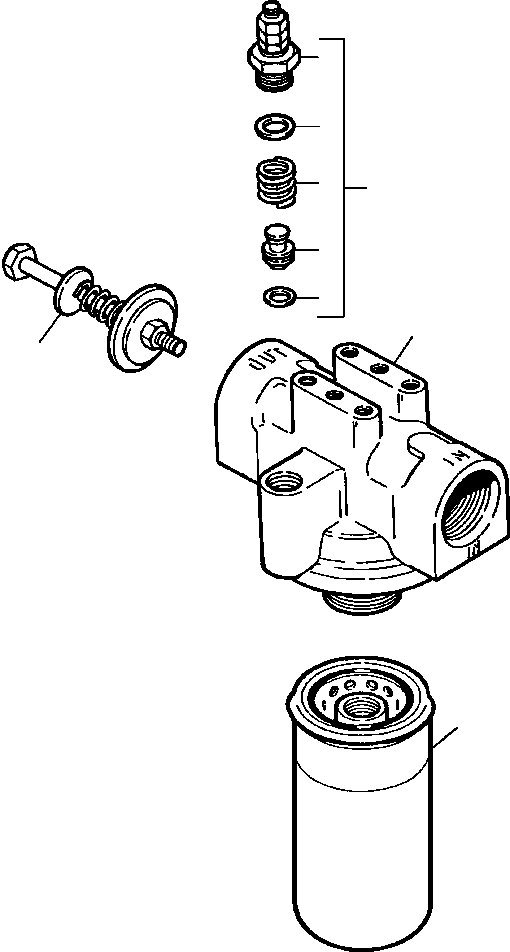

| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | 1214 277 H91 | BASE ASSEMBLY, FILTER WITH INDICATOR | 1 | F1 | |||
| ? | (NSS) | • BASE, FILTER | 1 | ||||
| ? | (NSS) | • VALVE, BY-PASS | 1 | ||||
| ? | 1234 207 H91 | • KIT, INDICATOR SWITCH | 1 | ||||
| ? | 1219 333 H91 | • • SWITCH, INDICATOR | 1 | ||||
| ? | 570 828 R1 | • • O-RING | 1 | ||||
| ? | 1219 337 H1 | • • SPRING, RETURN | 1 | ||||
| ? | 1219 336 H1 | • • PISTON, ACTUATING | 1 | ||||
| ? | 355 966 R1 | • • O-RING | 1 | ||||
| ? | 1233 914 H2 | ELEMENT, HYDRAULIC OIL FILTER | 1 | ||||
| ? | |||||||
| ? | F1 - FOR MOUNTING HARDWARE SEE PG 10-007 | ||||||
| ? |
