| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|

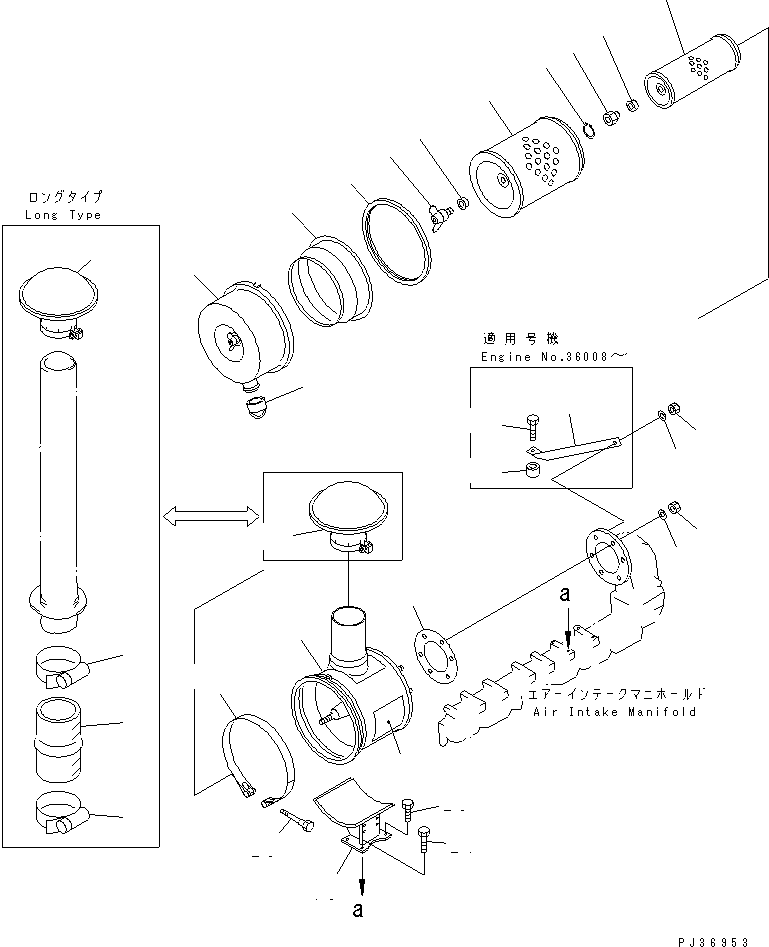

| ? | 6114-81-7202 | AIR CLEANER ASS'Y | 1 | SN: 10001- |
|||
| ? | 6114-81-7211 | • BODY | 1 | SN: 10001- |
|||
| ? | 6114-80-7101 | • ELEMENT ASS'Y | 1 | SN: 10001- |
|||
| ? | ☆ | • • ELEMENT,INNER | 1 | SN: 10001- |
|||
| ? | 600-181-9631 | • • NUT | 1 | SN: 10001- |
|||
| ? | 600-181-7511 | • • WASHER,SEAL | 1 | SN: 10001- |
|||
| ? | 600-181-2500 | • • ELEMENT ASS'Y,OUTER | 1 | SN: 10001- |
|||
| ? | ☆ | • • • ELEMENT,OUTER | 1 | SN: 10001- |
|||
| ? | 600-181-2471 | • • • NUT,WING | 1 | SN: 10001- |
|||
| ? | 600-181-7511 | • • • WASHER,SEAL | 1 | SN: 10001- |
|||
| ? | 04064-01510 | • • • RING,SNAP | 1 | SN: 10001- |
|||
| ? | 600-181-2510 | • GUIDE | 1 | SN: 10001- |
|||
| ? | 600-181-2520 | • DUST PAN ASS'Y | 1 | SN: 10001- |
|||
| ? | 600-181-2480 | • VALVE | 1 | SN: 10001- |
|||
| ? | 600-181-2490 | • GASKET | 1 | SN: 10001- |
|||
| ? | 6136-11-4840 | GASKET (K1) | 1 | SN: 11126- |
|||
| ? | □6631-11-4381 | GASKET | 1 | SN: 10001-11125 |
|||
| ? | 01582-11008 | NUT | 6 | SN: 10001- |
|||
| ? | 01640-21016 | WASHER | 6 | SN: 10001- |
|||
| ? | 6150-11-4541 | PLATE | 1 | SN: 36008- |
|||
| ? | 6631-11-5630 | SPACER | 1 | SN: 36008- |
|||
| ? | 01010-51040 | BOLT | 1 | SN: 36008- |
|||
| ? | 6150-11-4510 | BRACKET | 1 | SN: 10001- |
|||
| ? | 01010-51025 | BOLT | 2 | SN: 10001- |
|||
| ? | 01010-51030 | BOLT | 2 | SN: 10001- |
|||
| ? | 6691-11-4610 | BAND ASS'Y | 1 | SN: 10001- |
|||
| ? | 6643-11-4641 | BOLT | 1 | SN: 10001- |
|||
| ? | 600-181-2750 | CAP | 1 | SN: 10001- |
|||
| ? | 600-181-2440 | CAP,(LONG TYPE) | 1 | SN: 10001- |
|||
| ? | 600-181-0650 | HOSE,(LONG TYPE) | 1 | SN: 10001- |
|||
| ? | 07281-01469 | CLAMP,(LONG TYPE) | 2 | SN: 10001- |
|||
| ? | 09637-00161 | PLATE¤ INSTRUCTION,(JAPANESE-ENGLISH) | 1 | SN: 10001- |
|||
| ? | 09637-02161 | PLATE¤ INSTRUCTION,(ARABIC-ENGLISH) | 1 | SN: 10001- |
