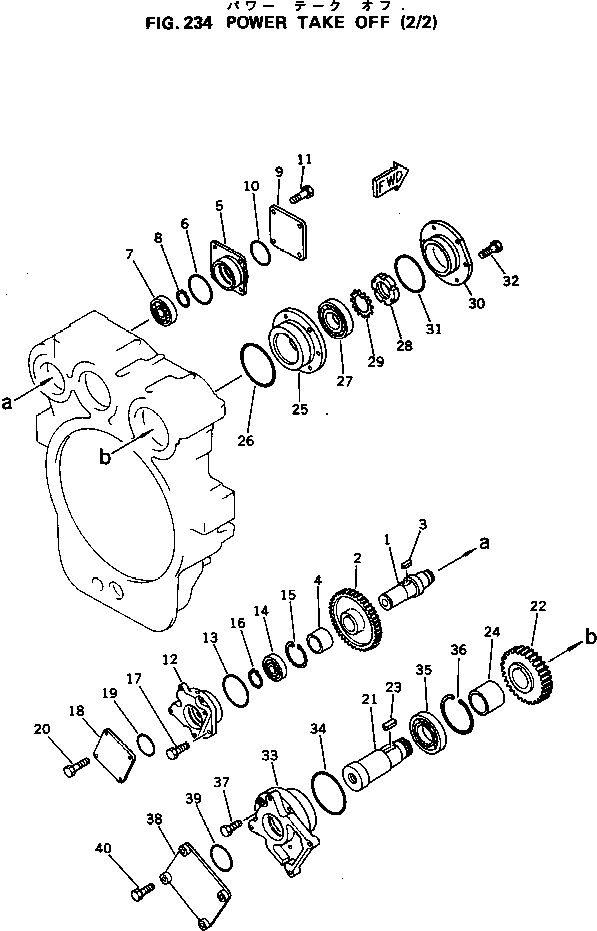

| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | 6632-21-4611 | SHAFT | 1 | SN: 10001- |
|||
| ? | 6150-21-4550 | GEAR | 1 | SN: 10001- |
|||
| ? | 04000-01235 | KEY | 1 | SN: 10001- |
|||
| ? | 6631-21-4650 | SPACER | 1 | SN: 10001- |
|||
| ? | 6631-21-4660 | CASE,BEARING | 1 | SN: 10001- |
|||
| ? | 07000-63088 | O-RING (K3) | 1 | SN: 10001- |
|||
| ? | 06000-06208 | BEARING,BALL | 1 | SN: 10001- |
|||
| ? | 04064-04018 | RING,SNAP | 1 | SN: 10001- |
|||
| ? | 6645-21-4140 | COVER | 1 | SN: 10001- |
|||
| ? | 07000-62075 | O-RING (K3) | 1 | SN: 10001- |
|||
| ? | 01010-51035 | BOLT | 4 | SN: 10001- |
|||
| ? | 6632-21-4631 | CASE,BEARING | 1 | SN: 10001- |
|||
| ? | 07000-62095 | O-RING (K3) | 1 | SN: 10001- |
|||
| ? | 06000-06209 | BEARING,BALL | 1 | SN: 10001- |
|||
| ? | 04065-08530 | RING,SNAP | 1 | SN: 10001- |
|||
| ? | 04065-04518 | RING,SNAP | 1 | SN: 10001- |
|||
| ? | 01010-51025 | BOLT | 1 | SN: 10001- |
|||
| ? | 6645-21-4140 | COVER | 1 | SN: 10001- |
|||
| ? | 07000-62075 | O-RING (K3) | 1 | SN: 10001- |
|||
| ? | 01010-51030 | BOLT | 4 | SN: 10001- |
|||
| ? | 6631-21-4510 | SHAFT | 1 | SN: 10286- |
|||
| ? | 6631-21-4810 | SHAFT | 1 | SN: 10001-10285 |
|||
| ? | 6631-21-4520 | GEAR | 1 | SN: 10001- |
|||
| ? | 04000-01850 | KEY | 1 | SN: 10001- |
|||
| ? | 6631-21-4550 | SPACER | 1 | SN: 10001- |
|||
| ? | 6631-21-4581 | CASE,BEARING | 1 | SN: 10001- |
|||
| ? | 6667-21-4670 | O-RING (K3) | 1 | SN: 10001- |
|||
| ? | 06001-00213 | BEARING,ROLLER | 1 | SN: 10001- |
|||
| ? | 01530-06214 | NUT | 1 | SN: 10001- |
|||
| ? | 01658-26223 | WASHER,LOCK (K3) | 1 | SN: 10001- |
|||
| ? | 6631-21-4561 | COVER | 1 | SN: 10001- |
|||
| ? | 07000-65110 | O-RING (K3) | 1 | SN: 10001- |
|||
| ? | 01010-51235 | BOLT | 5 | SN: 10001- |
|||
| ? | 6150-21-4850 | CASE,BEARING | 1 | SN: 14200- |
|||
| ? | □6631-21-4850 | CASE,BEARING | 1 | SN: 10001-14199 |
|||
| ? | 6667-21-4630 | O-RING (K3) | 1 | SN: 10001- |
|||
| ? | 06000-06214 | BEARING,BALL | 1 | SN: 10001- |
|||
| ? | 04065-01240 | RING,SNAP | 1 | SN: 10001- |
|||
| ? | 01010-51245 | BOLT | 6 | SN: 10001- |
|||
| ? | 6631-21-4540 | COVER | 1 | SN: 10286- |
|||
| ? | 6631-21-4860 | COVER | 1 | SN: 10001-10285 |
|||
| ? | 07000-02085 | O-RING (K3) | 1 | SN: 10286- |
|||
| ? | 07000-02070 | O-RING (K3) | 1 | SN: 10001-10285 |
|||
| ? | 01010-51245 | BOLT | 4 | SN: 10286- |
|||
| ? | 01010-51225 | BOLT | 4 | SN: 10001-10285 |
