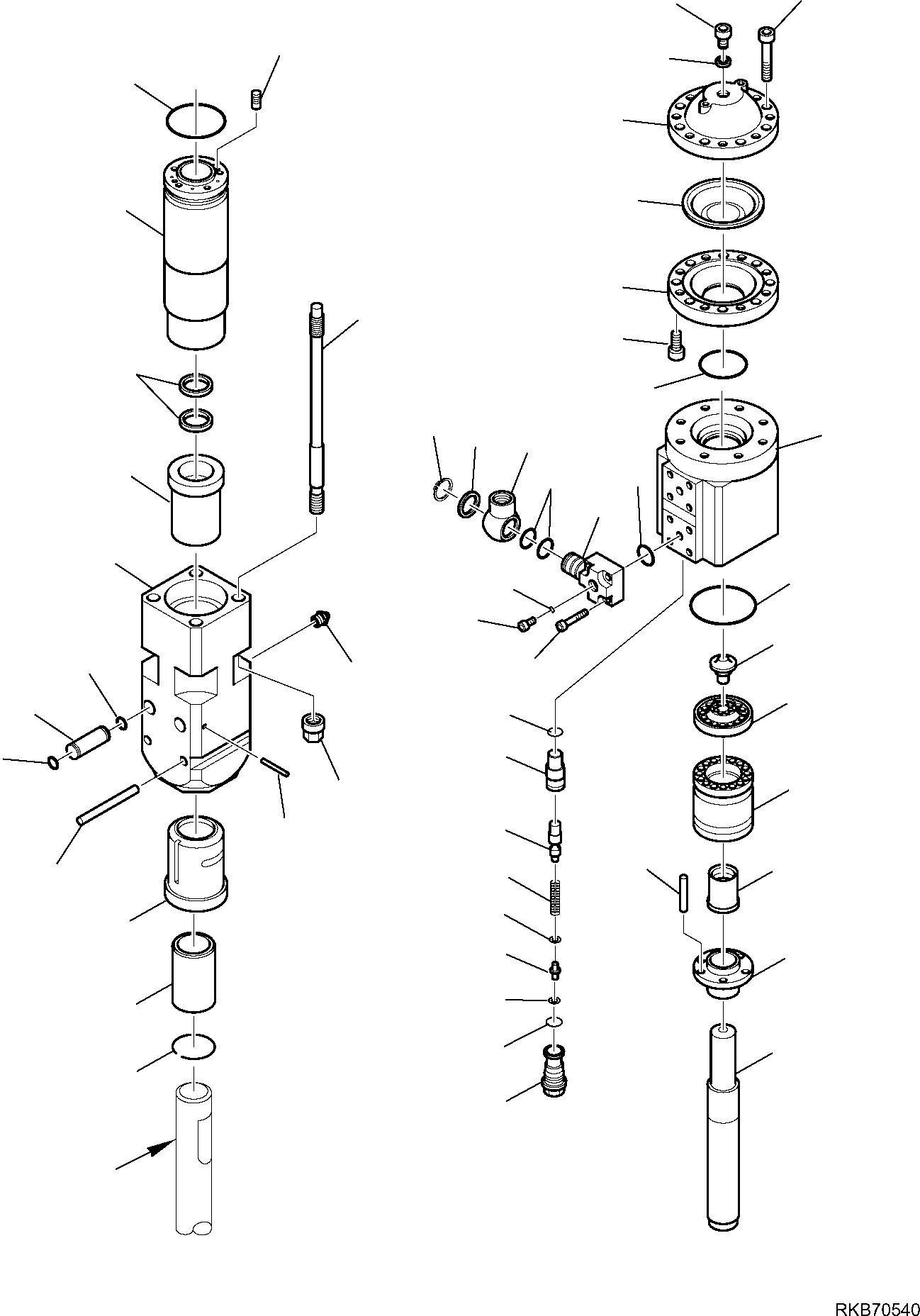

| HAMMER HP600 (2/3) | F-6945 | 6945 |
| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | (42N-989-1150) | HAMMER, ASSEMBLY | 1 | SN: F20003- |
6945 | ||
| ? | 22E-970-1630 | • SCREW | 1 | SN: F20003- |
|||
| ? | 22E-970-1640 | • SEAL | 1 | SN: F20003- |
|||
| ? | 42N-989-2380 | • COVER, UPPER | 1 | SN: F20003- |
|||
| ? | 827010262 | • MEMBRANE | 1 | SN: F20003- |
|||
| ? | 42N-989-2370 | • COVER | 1 | SN: F20003- |
|||
| ? | 827010266 | • SCREW | 8 | SN: F20003- |
|||
| ? | 827010265 | • SCREW | 8 | SN: F20003- |
|||
| ? | 827010387 | • O-RING | 1 | SN: F20003- |
|||
| ? | 827010381 | • CYLINDER HEAD | 1 | SN: F20003- |
|||
| ? | 827010383 | • O-RING | 2 | SN: F20003- |
|||
| ? | 42N-989-2610 | • DIAPHRAGM | 1 | SN: F20003- |
|||
| ? | 42N-989-2590 | • COVER | 1 | SN: F20003- |
|||
| ? | 42N-989-2570 | • BODY | 1 | SN: F20003- |
|||
| ? | 42N-989-2580 | • CONTROL VALVE | 1 | SN: F20003- |
|||
| ? | 22E-970-1270 | • PIN | 1 | SN: F20003- |
|||
| ? | 42N-989-2560 | • REDUCTION | 1 | SN: F20003- |
|||
| ? | 42N-989-2550 | • PISTON | 1 | SN: F20003- |
|||
| ? | 22E-970-1580 | • PLUG | 1 | SN: F20003- |
|||
| ? | 22E-970-1560 | • O-RING | 1 | SN: F20003- |
|||
| ? | 22E-970-1550 | • SHIM | 11 | SN: F20003- |
|||
| ? | 42N-989-2640 | • CYLINDER | 1 | SN: F20003- |
|||
| ? | 42N-989-2630 | • SPRING | 1 | SN: F20003- |
|||
| ? | 22E-970-1530 | • PLUNGER | 1 | SN: F20003- |
|||
| ? | 22E-970-1510 | • CYLINDER | 1 | SN: F20003- |
|||
| ? | 22E-970-1520 | • O-RING | 1 | SN: F20003- |
|||
| ? | 22E-970-1410 | • COUPLING, DELIVERY | 2 | SN: F20003- |
|||
| ? | 22E-970-1450 | • O-RING | 4 | SN: F20003- |
|||
| ? | 22E-970-1440 | • UNION | 2 | SN: F20003- |
|||
| ? | 22E-970-1460 | • WASHER | 2 | SN: F20003- |
|||
| ? | 22E-970-1470 | • RING, SNAP | 2 | SN: F20003- |
|||
| ? | 22E-970-1480 | • SCREW | 8 | SN: F20003- |
|||
| ? | 22E-970-1490 | • O-RING | 2 | SN: F20003- |
|||
| ? | 22E-970-1430 | • PLUG | 2 | SN: F20003- |
|||
| ? | 22E-970-1420 | • WASHER | 2 | SN: F20003- |
|||
| ? | 42N-989-2540 | • VALVE | 3 | SN: F20003- |
|||
| ? | 42N-989-2530 | • CYLINDER | 1 | SN: F20003- |
|||
| ? | 827010377 | • GASKET | 2 | SN: F20003- |
|||
| ? | 827010376 | • BUSHING | 1 | SN: F20003- |
|||
| ? | 42N-989-2470 | • BLOCK | 1 | SN: F20003- |
|||
| ? | 827010259 | • TIE-ROD | 4 | SN: F20003- |
|||
| ? | 827010260 | • NUT | 4 | SN: F20003- |
|||
| ? | 22E-970-1150 | • GREASE NIPPLE | 1 | SN: F20003- |
|||
| ? | 827010370 | • RETAINER | 2 | SN: F20003- |
|||
| ? | 827010372 | • O-RING | 4 | SN: F20003- |
|||
| ? | 827010369 | • SPLIT PIN | 2 | SN: F20003- |
|||
| ? | 827010371 | • SPLIT PIN | 1 | SN: F20003- |
|||
| ? | 42N-989-2490 | • BUSHING | 1 | SN: F20003- |
|||
| ? | 42N-989-2510 | • SLEEVE | 1 | SN: F20003- |
|||
| ? | 42N-989-2520 | • CIRCLIP | 1 | SN: F20003- |
|||
| ? | SEE FIG. 6940 | 6940 |
