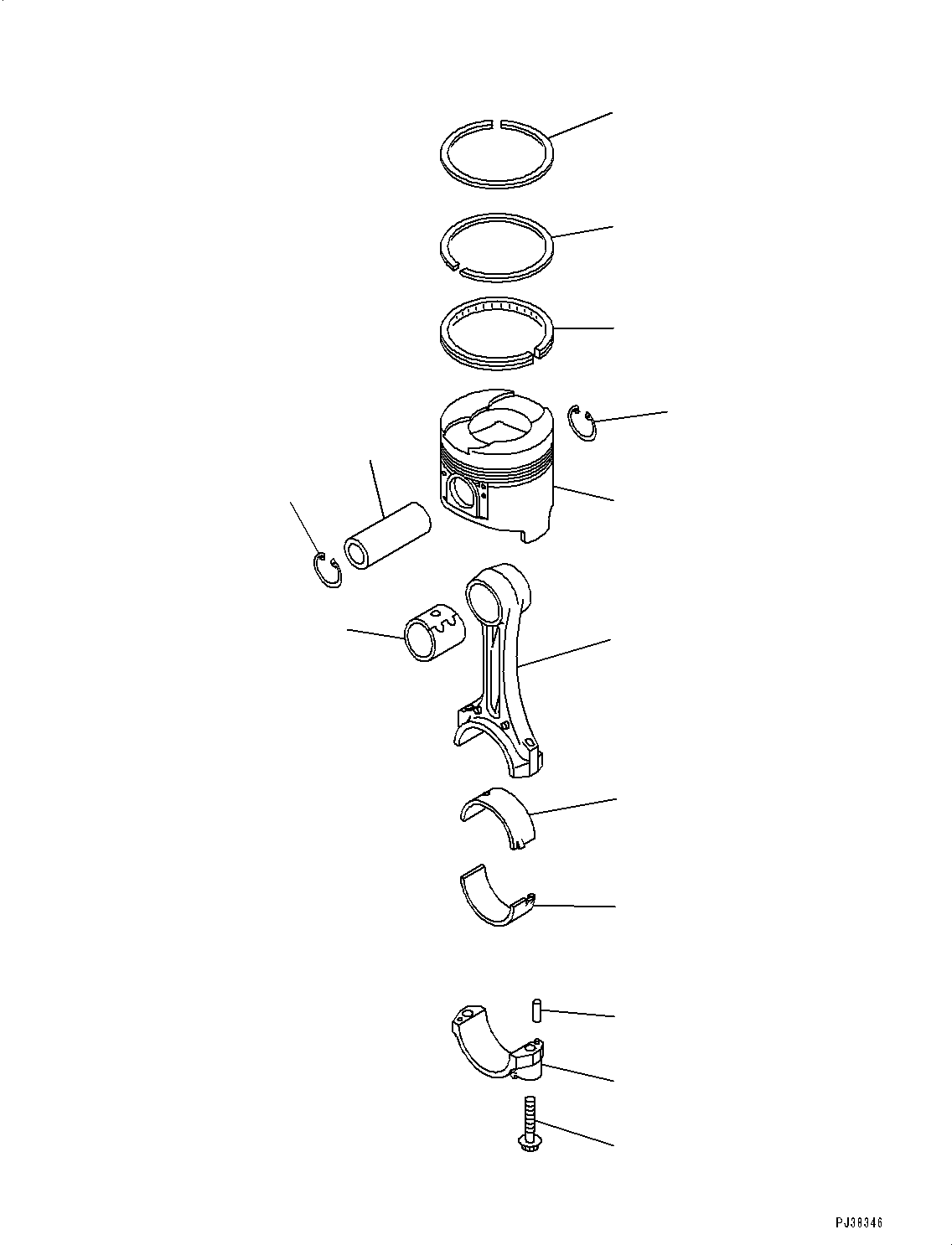

| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | 6271-31-2110 | PISTON, STANDARD | 4 | SN: 500001-502021 |
|||
| ? | 6271-39-2110 | PISTON, OVERSIZE 0.25MM | 4 | SN: 500001-502021 |
|||
| ? | 6271-38-2110 | PISTON, OVERSIZE 0.50MM | 4 | SN: 500001-502021 |
|||
| ? | 6207-31-2420 | PIN, PISTON | 4 | SN: 500001-502021 |
|||
| ? | 04065-03012 | RING, SNAP | 8 | SN: 500001-502021 |
|||
| ? | 6271-31-2100 | PISTON RING ASSEMBLY, STANDARD | 4 | SN: 500001-502021 |
|||
| ? | ☆ | • RING, TOP, STANDARD | 1 | SN: 500001-502021 |
|||
| ? | ☆ | • RING, SECOND, STANDARD | 1 | SN: 500001-502021 |
|||
| ? | ☆ | • RING, OIL, STANDARD | 1 | SN: 500001-502021 |
|||
| ? | 6271-39-2100 | PISTON RING ASSEMBLY, OVERSIZE 0.25MM | 4 | SN: 500001-502021 |
|||
| ? | ☆ | • RING, TOP, OVERSIZE 0.25MM | 1 | SN: 500001-502021 |
|||
| ? | ☆ | • RING, SECOND, OVERSIZE 0.25MM | 1 | SN: 500001-502021 |
|||
| ? | ☆ | • RING, OIL, OVERSIZE 0.25MM | 1 | SN: 500001-502021 |
|||
| ? | 6271-38-2100 | PISTON RING ASSEMBLY, OVERSIZE 0.50MM | 4 | SN: 500001-502021 |
|||
| ? | ☆ | • RING, TOP, OVERSIZE 0.50MM | 1 | SN: 500001-502021 |
|||
| ? | ☆ | • RING, SECOND, OVERSIZE 0.50MM | 1 | SN: 500001-502021 |
|||
| ? | ☆ | • RING, OIL, OVERSIZE 0.50MM | 1 | SN: 500001-502021 |
|||
| ? | 6207-31-3101 | CONNECTING ROD ASSEMBLY | 4 | SN: 500001-502021 |
|||
| ? | ☆ | • ROD | 1 | SN: 500001-502021 |
|||
| ? | ☆ | • CAP | 1 | SN: 500001-502021 |
|||
| ? | 6207-31-3130 | • BUSHING | 1 | SN: 500001-502021 |
|||
| ? | 6204-31-3310 | • BOLT | 2 | SN: 500001-502021 |
|||
| ? | 6207-31-3140 | • PIN | 2 | SN: 500001-502021 |
|||
| ? | 6208-31-3400 | CRANK PIN METAL ASSEMBLY, STANDARD | 4 | SN: 500001-502021 |
|||
| ? | ☆ | • METAL | 1 | SN: 500001-502021 |
|||
| ? | ☆ | • METAL | 1 | SN: 500001-502021 |
|||
| ? | 6207-39-3300 | CRANK PIN METAL ASSEMBLY, UNDERSIZED, 0.50MM | 4 | SN: 501655-502021 |
|||
| ? | 6208-39-3400 | CRANK PIN METAL ASSEMBLY, UNDERSIZED, 0.50MM | 4 | SN: 500001-501654 |
|||
| ? | ☆ | • METAL | 1 | SN: 501655-502021 |
|||
| ? | ☆ | • METAL | 1 | SN: 500001-501654 |
|||
| ? | ☆ | • METAL | 1 | SN: 501655-502021 |
|||
| ? | ☆ | • METAL | 1 | SN: 500001-501654 |
|||
| ? | 6207-38-3300 | CRANK PIN METAL ASSEMBLY, UNDERSIZED, 0.50MM | 4 | SN: 501655-502021 |
|||
| ? | 6208-38-3400 | CRANK PIN METAL ASSEMBLY, UNDERSIZED, 0.50MM | 4 | SN: 500001-501654 |
|||
| ? | ☆ | • METAL | 1 | SN: 501655-502021 |
|||
| ? | ☆ | • METAL | 1 | SN: 500001-501654 |
|||
| ? | ☆ | • METAL | 1 | SN: 501655-502021 |
|||
| ? | ☆ | • METAL | 1 | SN: 500001-501654 |
|||
| ? | 6207-37-3300 | CRANK PIN METAL ASSEMBLY, UNDERSIZED, 0.75MM | 4 | SN: 501655-502021 |
|||
| ? | 6208-37-3400 | CRANK PIN METAL ASSEMBLY, UNDERSIZED, 0.75MM | 4 | SN: 500001-501654 |
|||
| ? | ☆ | • METAL | 1 | SN: 501655-502021 |
|||
| ? | ☆ | • METAL | 1 | SN: 500001-501654 |
|||
| ? | ☆ | • METAL | 1 | SN: 501655-502021 |
|||
| ? | ☆ | • METAL | 1 | SN: 500001-501654 |
|||
| ? | 6207-36-3300 | CRANK PIN METAL ASSEMBLY, UNDERSIZED, 1.00MM | 4 | SN: 501655-502021 |
|||
| ? | 6208-36-3400 | CRANK PIN METAL ASSEMBLY, UNDERSIZED, 1.00MM | 4 | SN: 500001-501654 |
|||
| ? | ☆ | • METAL | 1 | SN: 501655-502021 |
|||
| ? | ☆ | • METAL | 1 | SN: 500001-501654 |
|||
| ? | ☆ | • METAL | 1 | SN: 501655-502021 |
|||
| ? | ☆ | • METAL | 1 | SN: 500001-501654 |
