| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|

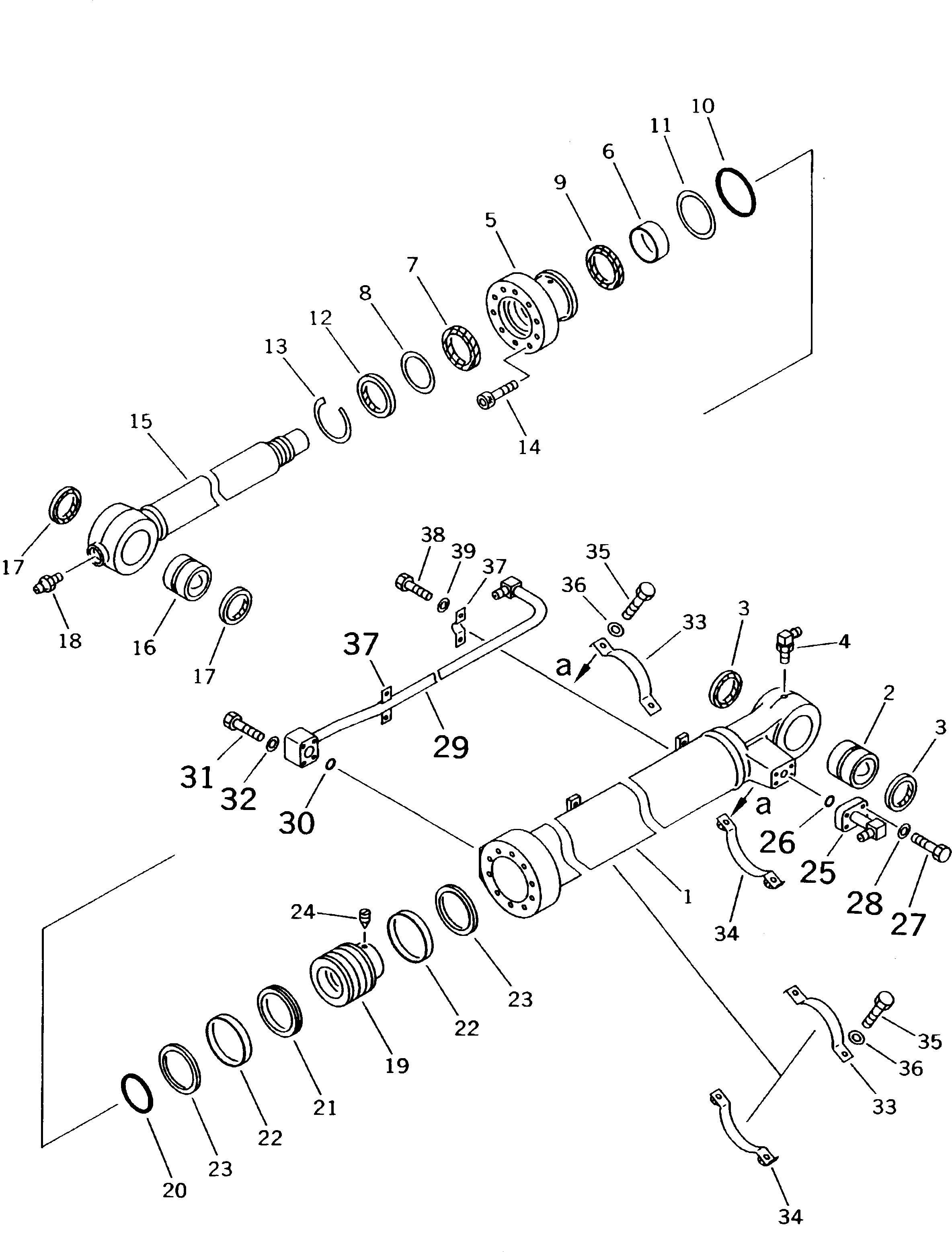

| ? | 20G-966-K190 | CYLINDER ASS'Y,BUCKET | 1 | SN: K20001- |
|||
| ? | 21P-63-K1820 | • CYLINDER ASS'Y,BUCKET | 1 | SN: K20001- |
|||
| ? | 21P-63-K1830 | • • CYLINDER | 1 | SN: K20001- |
|||
| ? | 707-76-70230 | • • BUSHING | 1 | SN: K20001- |
|||
| ? | 07145-00070 | • • SEAL,DUST | 2 | SN: K20001- |
|||
| ? | 21P-63-K1860 | • • FITTING,GREASE | 1 | SN: K20001- |
|||
| ? | 21P-63-K1850 | • • HEAD,CYLINDER | 1 | SN: K20001- |
|||
| ? | 707-52-90500 | • • BUSHING | 1 | SN: K20001- |
|||
| ? | 707-51-75030 | • • PACKING,ROD | 1 | SN: K20001- |
|||
| ? | 203-63-K2430 | • • RING,BACK-UP | 1 | SN: K20001- |
|||
| ? | 707-51-75630 | • • RING,BUFFER | 1 | SN: K20001- |
|||
| ? | 21P-63-K1670 | • • O-RING | 1 | SN: K20001- |
|||
| ? | 21P-63-K1660 | • • RING,BACK-UP | 1 | SN: K20001- |
|||
| ? | 144-63-94170 | • • SEAL,DUST | 1 | SN: K20001- |
|||
| ? | 203-63-K2090 | • • RING,SNAP | 1 | SN: K20001- |
|||
| ? | 203-63-K2120 | • • BOLT | 10 | SN: K20001- |
|||
| ? | 21P-63-K1840 | • • ROD,PISTON | 1 | SN: K20001- |
|||
| ? | 707-76-70370 | • • BUSHING | 1 | SN: K20001- |
|||
| ? | 21K-70-12180 | • • SEAL,DUST | 2 | SN: K20001- |
|||
| ? | 21P-63-K1870 | • • FITTING,GREASE | 1 | SN: K20001- |
|||
| ? | 21P-63-K1680 | • • PISTON | 1 | SN: K20001- |
|||
| ? | 21P-63-K1690 | • • O-RING | 1 | SN: K20001- |
|||
| ? | 707-44-11180 | • • RING,PISTON | 1 | SN: K20001- |
|||
| ? | 707-39-11110 | • • RING,WEAR | 2 | SN: K20001- |
|||
| ? | 707-44-11911 | • • RING | 2 | SN: K20001- |
|||
| ? | 203-63-K2050 | • • SCREW,SET | 1 | SN: K20001- |
|||
| ? | 20G-966-K550 | • TUBE | 1 | SN: K20001- |
|||
| ? | 07000-13030 | • O-RING | 1 | SN: K20001- |
|||
| ? | 07372-21040 | • BOLT | 4 | SN: K20001- |
|||
| ? | 01643-51032 | • WASHER | 4 | SN: K20001- |
|||
| ? | 20G-966-K560 | • TUBE | 1 | SN: K20001- |
|||
| ? | 07000-13025 | • O-RING | 1 | SN: K20001- |
|||
| ? | 01010-50850 | • BOLT | 4 | SN: K20001- |
|||
| ? | 01643-50823 | • WASHER | 4 | SN: K20001- |
|||
| ? | 707-88-87210 | • BRACKET | 2 | SN: K20001- |
|||
| ? | 707-88-99110 | • BAND | 2 | SN: K20001- |
|||
| ? | 01010-51035 | • BOLT | 4 | SN: K20001- |
|||
| ? | 01643-31032 | • WASHER | 4 | SN: K20001- |
|||
| ? | 07282-02288 | • CLAMP | 2 | SN: K20001- |
|||
| ? | 01010-51020 | • BOLT | 4 | SN: K20001- |
|||
| ? | 01643-31032 | • WASHER | 4 | SN: K20001- |
