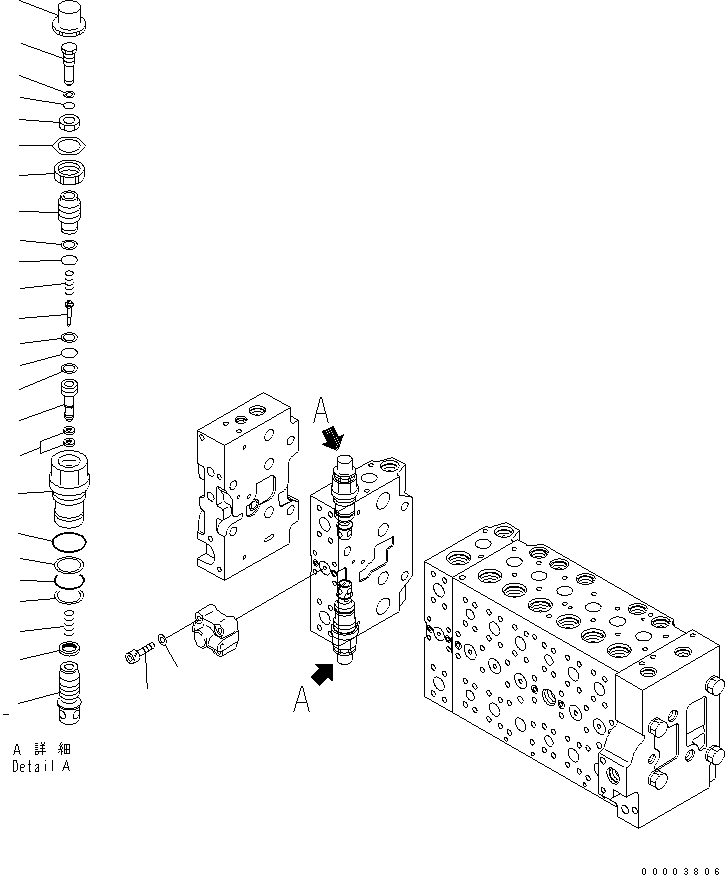

| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | (723-48-21101) | VALVE ASS'Y | 1 | SN: K40062- |
|||
| ? | (723-48-21100) | VALVE ASS'Y | 1 | SN: K40001-K40061 |
|||
| ? | THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.Y1664-01A0 TO Y1664-20A0. | ||||||
| ? | ☆ | • BODY SUB ASS'Y | 1 | SN: K40001- |
|||
| ? | THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1664-18A0 AND Y1664-19A0. | ||||||
| ? | 723-46-48100 | • • VALVE ASS'Y | 2 | SN: K40001- |
|||
| ? | ☆ | • • • SLEEVE | 1 | SN: K40001- |
|||
| ? | ☆ | • • • VALVE | 1 | SN: K40001- |
|||
| ? | ☆ | • • • SEAT | 1 | SN: K40001- |
|||
| ? | ☆ | • • • POPPET | 1 | SN: K40001- |
|||
| ? | ☆ | • • • PLUG | 1 | SN: K40001- |
|||
| ? | ☆ | • • • SCREW | 1 | SN: K40001- |
|||
| ? | ☆ | • • • NUT | 1 | SN: K40001- |
|||
| ? | ☆ | • • • NUT | 1 | SN: K40001- |
|||
| ? | ☆ | • • • SPRING | 1 | SN: K40001- |
|||
| ? | ☆ | • • • SPRING | 1 | SN: K40001- |
|||
| ? | ☆ | • • • PLATE | 1 | SN: K40001- |
|||
| ? | ☆ | • • • CAP | 1 | SN: K40001- |
|||
| ? | ☆ | • • • SEAL | 2 | SN: K40001- |
|||
| ? | ☆ | • • • SEAL | 1 | SN: K40001- |
|||
| ? | 700-93-11320 | • • • O-RING | 1 | SN: K40001- |
|||
| ? | 723-46-41950 | • • • RING | 2 | SN: K40001- |
|||
| ? | 07002-13634 | • • • O-RING | 1 | SN: K40001- |
|||
| ? | ☆ | • • • O-RING | 2 | SN: K40001- |
|||
| ? | ☆ | • • • RING | 3 | SN: K40001- |
|||
| ? | ☆ | • • • O-RING | 1 | SN: K40001- |
|||
| ? | ☆ | • • • RING,BACK-UP | 1 | SN: K40001- |
|||
| ? | 01252-60845 | • • BOLT | 4 | SN: K40001- |
|||
| ? | 01643-50823 | • • WASHER | 4 | SN: K40001- |
