Содержание Excavators Komatsu PW220-7K-KA S/N K40001-UP(pw220-0u)

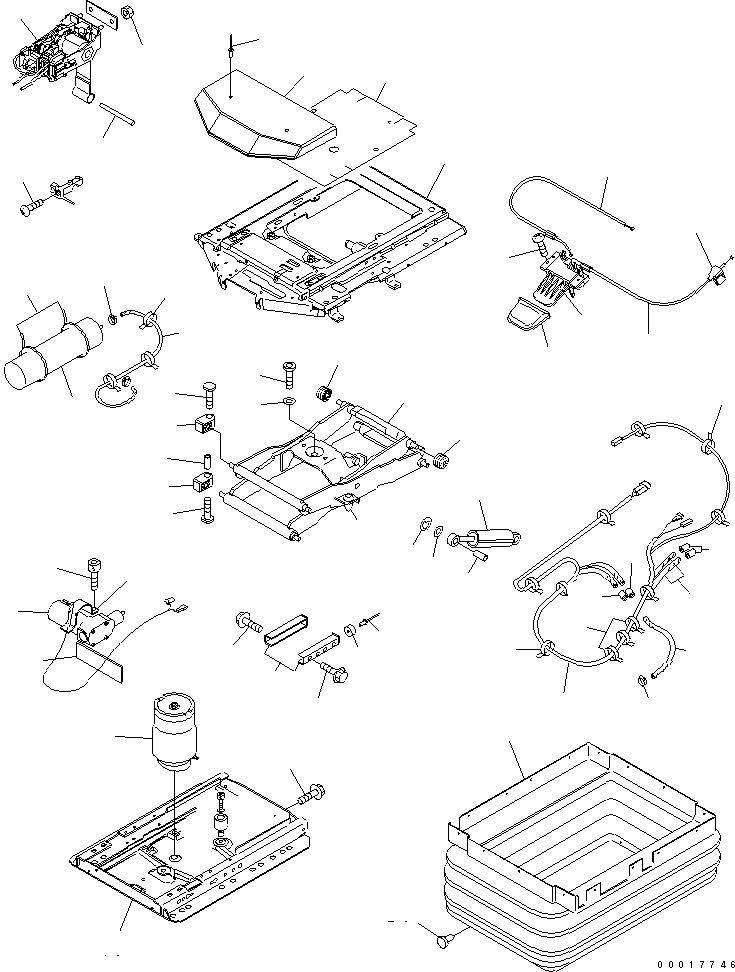

OPERATOR'S SEAT ASS'Y ? 2/2 (AIR SUSPENSION)(540050 : Y1570-02A1)
Номер на схеме Каталожный номер Название Количество Детали
? (20K-57-31160) SEAT ASS'Y 1
SN: K40001-
? THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1570-01A1 AND Y1570-02A1.
? 20K-57-32680 • CONTROL ASS'Y,LEVEL 1
SN: K40001-
? 20K-57-31730 • NUT 2
SN: K40001-
? 20K-57-32690 • BOLT 1
SN: K40001-
? 20K-57-32710 • COVER 1
SN: K40001-
? 20K-57-32720 • SCREW 1
SN: K40001-
? 20K-57-32730 • BAND 1
SN: K40001-
? 20K-57-32740 • WASHER 2
SN: K40001-
? 20K-57-32750 • WASHER 4
SN: K40001-
? 20K-57-31540 • BUMPER 2
SN: K40001-
? 20K-57-32770 • HOUSING,CABLE 1
SN: K40001-
? 20K-57-32780 • CABLE 1
SN: K40001-
? 20K-57-32790 • CABLE 1
SN: K40001-
? 20K-57-32210 • SCREW 3
SN: K40001-
? 20K-57-32810 • OPERATION 1
SN: K40001-
? 20K-57-32820 • HANDLE 1
SN: K40001-
? 20K-57-32830 • TUBE 2
SN: K40001-
? 20K-57-32850 • SCREW 2
SN: K40001-
? 20K-57-32860 • BEARING 2
SN: K40001-
? 20K-57-32870 • SCREW 1
SN: K40001-
? 20K-57-32880 • ROLLER 4
SN: K40001-
? 20K-57-32890 • SCREW 2
SN: K40001-
? 20K-57-32910 • WASHER 1
SN: K40001-
? 20K-57-32920 • BELLOWS 1
SN: K40001-
? 20K-57-32930 • BELLOWS 22
SN: K40001-
? 20K-57-32940 • SPRING ASS'Y,AIR 1
SN: K40001-
? 20K-57-32950 • PLATE 1
SN: K40001-
? 20K-57-32960 • BRACKET 1
SN: K40001-
? 20K-57-32970 • SCREW 1
SN: K40001-
? 20K-57-32980 • COMPRESSOR 1
SN: K40001-
? 20K-57-32990 • BAND 4
SN: K40001-
? 20K-57-33110 • NIPPLE 4
SN: K40001-
? 20K-57-33120 • CABLE 1
SN: K40001-
? 20K-57-33130 • HOSE KIT 1
SN: K40001-
? 20K-57-33140 • CLAMP 2
SN: K40001-
? 20K-57-33150 • COVER 1
SN: K40001-
? 20K-57-33160 • RIVET 2
SN: K40001-
? 20K-57-33170 • BOLT 2
SN: K40001-
? 20K-57-33180 • SHOCK ABSORBER 1
SN: K40001-
? 20K-57-33190 • SCREW 2
SN: K40001-
? 20K-57-33210 • BUMPER 2
SN: K40001-
? 20K-57-33220 • RIVET 2
SN: K40001-
? 20K-57-33230 • STOP 2
SN: K40001-
? 20K-57-33240 • CLAMP 2
SN: K40001-
? 20K-57-33250 • HOSE KIT 1
SN: K40001-
? 20K-57-33260 • BAND 2
SN: K40001-
? 20K-57-33270 • CONTAINER 1
SN: K40001-
? 20K-57-33280 • SUSPENSION,LOWER 1
SN: K40001-
? 20K-57-33290 • ARM,SWING 1
SN: K40001-
? 20K-57-33310 • SUSPENSION,UPPER 1
SN: K40001-
