Содержание Excavators Komatsu PW220-7K-KA S/N K40001-UP(pw220-0u)

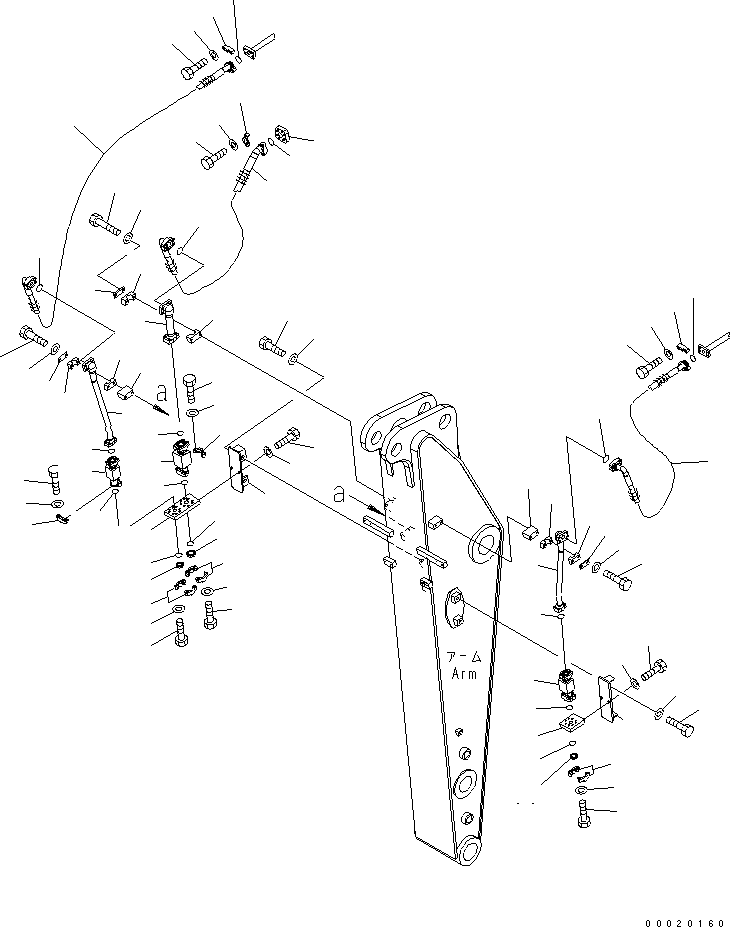

ARM (1.8M) (2 ATTACHMENT LINES)(#K40001-K40061)(390430 : T1200-06A0)
Номер на схеме Каталожный номер Название Количество Детали
? 20K-970-5380 HOSE 1
SN: K40001-K40061
? 20K-970-5390 HOSE 1
SN: K40001-K40061
? 07000-13025 O-RING 4
SN: K40001-K40061
? 07371-30640 FLANGE,SPLIT 8
SN: K40001-K40061
? 07372-21035 BOLT 16
SN: K40001-K40061
? 01643-51032 WASHER 16
SN: K40001-K40061
? 20K-970-5360 TUBE 2
SN: K40001-K40061
? 20K-62-32721 PLATE 2
SN: K40001-@
? 20K-62-32711 CLAMP 4
SN: K40001-@
? 20K-62-35610 SEAT 2
SN: K40001-K40061
? 20K-62-35620 BOLT 4
SN: K40001-K40061
? 01643-30823 WASHER 4
SN: K40001-K40061
? 20Y-970-K551 VALVE 2
SN: K40001-K40061
? 07000-13025 O-RING 4
SN: K40001-K40061
? 07371-30640 FLANGE,SPLIT 8
SN: K40001-K40061
? 07372-21035 BOLT 16
SN: K40001-K40061
? 01643-51032 WASHER 16
SN: K40001-K40061
? 20K-970-5370 HOSE 1
SN: K40001-K40061
? 07000-13032 O-RING 2
SN: K40001-K40061
? 07371-31049 FLANGE,SPLIT 4
SN: K40001-K40061
? 07372-21035 BOLT 8
SN: K40001-K40061
? 01643-51032 WASHER 8
SN: K40001-K40061
? 20K-62-41230 PLATE 1
SN: K40001-K40061
? 20K-970-5350 TUBE 1
SN: K40001-K40061
? 20K-62-41121 PLATE 1
SN: K40001-K40061
? 20K-62-41111 CLAMP 2
SN: K40001-K40061
? 01010-80875 BOLT 2
SN: K40001-K40061
? 01643-30823 WASHER 2
SN: K40001-K40061
? 20Y-970-K541 STOP VALVE 1
SN: K40001-K40061
? 07000-13032 O-RING 2
SN: K40001-K40061
? 07371-31049 FLANGE,SPLIT 4
SN: K40001-K40061
? 07372-21035 BOLT 8
SN: K40001-K40061
? 01643-51032 WASHER 8
SN: K40001-K40061
? 20K-62-33950 PLATE 1
SN: K40001-K40061
? 206-970-K560 PLATE 1
SN: K40001-K40061
? 01010-81230 BOLT 4
SN: K40001-K40061
? 01643-31232 WASHER 4
SN: K40001-K40061
? 07378-10600 HEAD 2
SN: K40001-K40061
? 07000-13025 O-RING 2
SN: K40001-K40061
? 07371-30640 FLANGE,SPLIT 4
SN: K40001-K40061
? 07372-21035 BOLT 8
SN: K40001-K40061
? 01643-51032 WASHER 8
SN: K40001-K40061
? 07378-11000 HEAD 1
SN: K40001-K40061
? 07000-13032 O-RING 1
SN: K40001-K40061
? 07371-31049 FLANGE,SPLIT 2
SN: K40001-K40061
? 07372-21035 BOLT 4
SN: K40001-K40061
? 01643-51032 WASHER 4
SN: K40001-K40061
? 206-970-K550 BRACKET 2
SN: K40001-K40061
? 01010-81630 BOLT 4
SN: K40001-K40061
? 01643-31645 WASHER 4
SN: K40001-K40061
