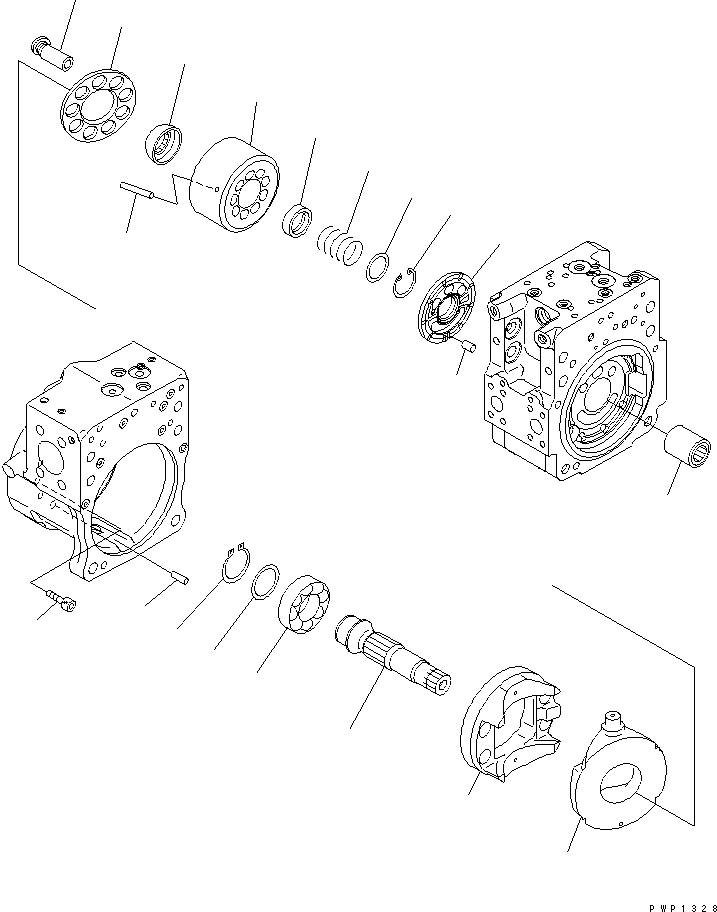

| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | 708-2L-00203 | PUMP ASSEMBLY | 1 | SN: H50051- |
|||
| ? | THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS. Y1600-01A0 TO Y1600-11A0 | ||||||
| ? | ☆ | • PUMP SUB ASSEMBLY | 1 | SN: H50051- |
|||
| ? | (★708-2L-42120) | • • SHAFT | 1 | SN: H50051- |
|||
| ? | (★708-2L-42250) | • • BEARING | 1 | SN: H50051- |
|||
| ? | (★708-2E-05040) | • • WASHER KIT | 1 | SN: H50051- |
|||
| ? | ☆ | • • • WASHER, 3.1MM | 1 | SN: H50051- |
|||
| ? | ☆ | • • • WASHER, 3.0MM | 1 | SN: H50051- |
|||
| ? | ☆ | • • • WASHER, 2.9MM | 1 | SN: H50051- |
|||
| ? | ☆ | • • • WASHER, 2.8MM | 1 | SN: H50051- |
|||
| ? | (★708-25-12790) | • • RING | 1 | SN: H50051- |
|||
| ? | (★708-2L-06283) | • • BLOCK ASSEMBLY | 1 | SN: H50051- |
|||
| ? | ☆ | • • • BLOCK | 1 | SN: H50051- |
|||
| ? | ☆ | • • • PLATE | 1 | SN: H50051- |
|||
| ? | (★708-18-13230) | • • PIN | 1 | SN: H50051- |
|||
| ? | (★04065-05820) | • • RING | 1 | SN: H50051- |
|||
| ? | (★708-2L-43130) | • • SEAT | 1 | SN: H50051- |
|||
| ? | (★708-2L-43150) | • • SPRING | 1 | SN: H50051- |
|||
| ? | (★708-2H-23141) | • • SEAT | 1 | SN: H50051- |
|||
| ? | (★708-2L-43510) | • • GUIDE | 1 | SN: H50051- |
|||
| ? | (★708-2L-43360) | • • PIN | 3 | SN: H50051- |
|||
| ? | (★708-2L-43340) | • • RETAINER | 1 | SN: H50051- |
|||
| ? | (★708-2L-43311) | • • PISTON SUB ASSEMBLY | 9 | SN: H50051- |
|||
| ? | (★708-2L-06262) | • • CRADLE ASSEMBLY | 1 | SN: H50051- |
|||
| ? | ☆ | • • • CRADLE | 1 | SN: H50051- |
|||
| ? | ☆ | • • • CAM | 1 | SN: H50051- |
|||
| ? | (★04020-01228) | • • PIN | 1 | SN: H50051- |
|||
| ? | (★01252-61025) | • • BOLT | 6 | SN: H50051- |
|||
| ? | (★708-2L-42140) | • • COUPLING | 1 | SN: H50051- |
