| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|

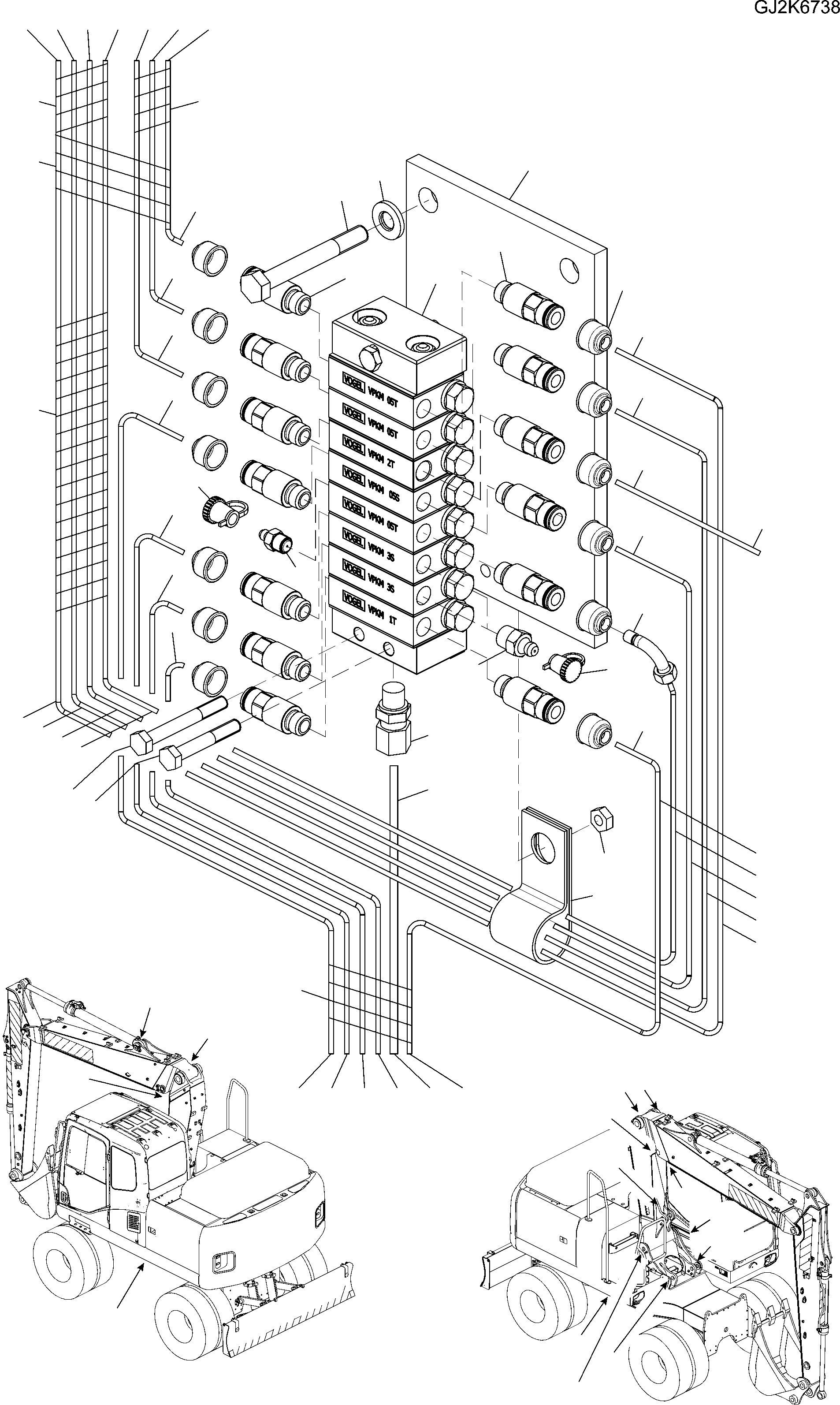

| ? | (☉20K-S95-H150) | PROGRESSIVE FEEDER | 1 | SN: H50051- |
|||
| ? | 418-09-H0640 | • PLASTIC TUBE, 2.12M (MARK 14) | 1 | SN: H50051- |
|||
| ? | 418-09-H0640 | • PLASTIC TUBE, 2.00M (MARK 11) | 1 | SN: H50051- |
|||
| ? | 418-09-H0640 | • PLASTIC TUBE, 2.70M (MARK 9) | 1 | SN: H50051- |
|||
| ? | 42W-09-H4400 | • HOSE (MARK 8) | 1 | SN: H50051- |
|||
| ? | 418-09-H0640 | • PLASTIC TUBE, 2.35M (MARK 10) | 1 | SN: H50051- |
|||
| ? | 418-09-H0640 | • PLASTIC TUBE, 2.00M (MARK 12) | 1 | SN: H50051- |
|||
| ? | 418-09-H0640 | • PLASTIC TUBE, 3.40M (MARK 13) | 1 | SN: H50051- |
|||
| ? | 418-09-H0640 | • PLASTIC TUBE, 2.75M (MARK1) | 1 | SN: H50051- |
|||
| ? | 42W-09-H4290 | • HOSE (MARK 4) | 1 | SN: H50051- |
|||
| ? | 42W-09-H4410 | • HOSE (MARK 3) | 1 | SN: H50051- |
|||
| ? | 418-09-H0640 | • PLASTIC TUBE, 4.10M (MARK 5) | 1 | SN: H50051- |
|||
| ? | 418-09-H0640 | • PLASTIC TUBE, 4.25M (MARK 6) | 1 | SN: H50051- |
|||
| ? | 418-09-H0640 | • PLASTIC TUBE, 2.00M (MARK 7) | 1 | SN: H50051- |
|||
| ? | 42W-09-H2880 | • UNION | 1 | SN: H50051- |
|||
| ? | 42W-09-H4420 | • HOSE | 1 | SN: H50051- |
|||
| ? | 42W-09-H4430 | • CLIP | 1 | SN: H50051- |
|||
| ? | 01010-80650 | • BOLT | 1 | SN: H50051- |
|||
| ? | 42W-09-H2940 | • CAP | 13 | SN: H50051- |
|||
| ? | 01010-80640 | • BOLT | 2 | SN: H50051- |
|||
| ? | 42W-09-H4440 | • MOUNTING PLATE | 1 | SN: H50051- |
|||
| ? | 20K-S95-H200 | • FEEDER (WITH VALVES) | 1 | SN: H50051- |
|||
| ? | 42W-09-H4650 | • • VALVE | 13 | SN: H50051- |
|||
| ? | 421-09-H3870 | • NIPPLE | 3 | SN: H50051- |
|||
| ? | 42W-09-H3350 | • CAP | 3 | SN: H50051- |
|||
| ? | 42W-09-H4460 | • COVER (SPIRAL) | -26 | SN: H50051- |
|||
| ? | 42W-09-H4460 | • COVER (SPIRAL) | -26 | SN: H50051- |
|||
| ? | 42W-09-H4470 | • COVER (SPIRAL) | -26 | SN: H50051- |
|||
| ? | 42W-09-H4460 | • COVER (SPIRAL) | -26 | SN: H50051- |
|||
| ? | 42W-09-H4470 | • COVER (SPIRAL) | -26 | SN: H50051- |
|||
| ? | 01580-10605 | • NUT | 1 | SN: H50051- |
|||
| ? | 01010-80865 | BOLT | 2 | SN: H50051- |
|||
| ? | 01643-30823 | WASHER | 2 | SN: H50051- |
|||
| ? | ==================== | ||||||
| ? | ARM CYLINDER, BOTTOM | ||||||
| ? | BOOM CYLINDER, TOP, RHS | ||||||
| ? | 2ND BOOM FOOT PIN, RHS | ||||||
| ? | 2ND BOOM FOOT PIN, MIDDLE | ||||||
| ? | 2ND BOOM FOOT PIN, LHS | ||||||
| ? | BOOM CYLINDER, TOP, LHS | ||||||
| ? | BOOM ADJUST CYLINDER, TOP | ||||||
| ? | SWING CIRCLE | ||||||
| ? | 1ST BOOM FOOT PIN, RHS | ||||||
| ? | 1ST BOOM FOOT PIN, LHS | ||||||
| ? | BOOM CYLINDER, BOTTOM, LHS | ||||||
| ? | BOOM CYLINDER, BOTTOM, RHS | ||||||
| ? | BOOM ADJUST CYLINDER, BOTTOM |
