| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|

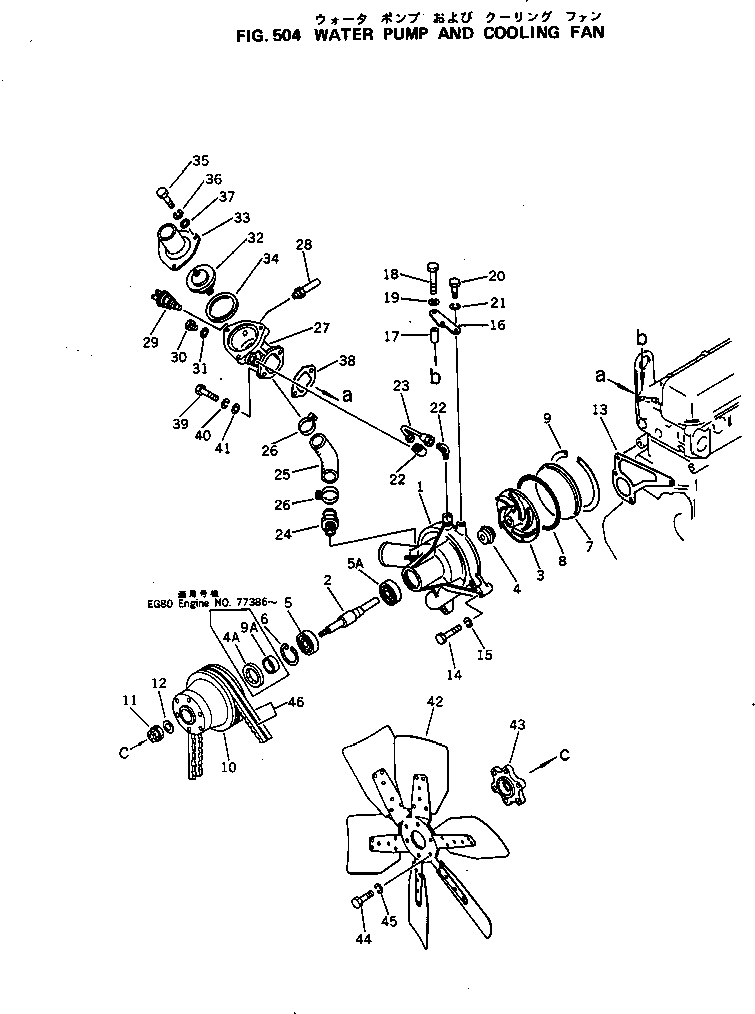

| ? | 6136-61-1402 | WATER PUMP ASS'Y,(FOR EG80) | 1 | SN: 77386- |
|||
| ? | □6136-61-1401 | WATER PUMP ASS'Y,(FOR EG80) | 1 | SN: 55458-77385 |
|||
| ? | 6136-61-1101 | WATER PUMP ASS'Y,(FOR EG80S) | 1 | SN: 55464- |
|||
| ? | ☆ | • BODY,(FOR EG80) | 1 | SN: 77386- |
|||
| ? | ☆ | • BODY,(FOR EG80) | 1 | SN: 55458-77385 |
|||
| ? | ☆ | • BODY,(FOR EG80S) | 1 | SN: 55464- |
|||
| ? | 6136-61-1312 | • SHAFT,(FOR EG80) | 1 | SN: 77386- |
|||
| ? | 6136-61-1311 | • SHAFT,(FOR EG80) | 1 | SN: 55458-77385 |
|||
| ? | 6136-61-1311 | • SHAFT,(FOR EG80S) | 1 | SN: 55464- |
|||
| ? | 6136-61-1331 | • IMPELLER | 1 | SN: 55458- |
|||
| ? | 6150-61-1520 | • SEAL ? WATER (K2) | 1 | SN: 71957- |
|||
| ? | □6610-61-1512 | • SEAL ? WATER (K2) | 1 | SN: 55458-71956 |
|||
| ? | 6136-61-1370 | • SLEEVE,(FOR EG80) | 1 | SN: 77386- |
|||
| ? | 6136-61-1340 | • BEARING,(FOR EG80) | 1 | SN: 77386- |
|||
| ? | 06037-06304 | • BEARING,(FOR EG80) | 1 | SN: 55458-77385 |
|||
| ? | 06037-06304 | • BEARING,(FOR EG80S) | 1 | SN: 55464- |
|||
| ? | 06030-05304 | • BEARING,(FOR EG80) | 1 | SN: 77386- |
|||
| ? | 06037-06304 | • BEARING,(FOR EG80) | 1 | SN: 55458-77385 |
|||
| ? | 06037-06304 | • BEARING,(FOR EG80S) | 1 | SN: 55464- |
|||
| ? | 6136-61-1190 | • RING,SNAP | 1 | SN: 55458- |
|||
| ? | 6136-61-1120 | • COVER | 1 | SN: 55458- |
|||
| ? | 07000-02145 | • O-RING (K2) | 1 | SN: 55458- |
|||
| ? | 6136-61-1130 | • RING,SNAP | 1 | SN: 55458- |
|||
| ? | 6136-61-1350 | • SEAL,OIL (FOR EG80) (K2) | 1 | SN: 77386- |
|||
| ? | 6136-61-3232 | • PULLEY,(FOR EG80) | 1 | SN: 77386- |
|||
| ? | 6136-61-3231 | • PULLEY,(FOR EG80) | 1 | SN: 55458-77385 |
|||
| ? | 6136-61-3211 | • PULLEY,(FOR EG80S) | 1 | SN: 55464- |
|||
| ? | 01839-01416 | • NUT | 1 | SN: 55458- |
|||
| ? | 01643-31445 | • WASHER | 1 | SN: 55458- |
|||
| ? | 6136-61-1811 | GASKET (K2) | 1 | SN: 55458- |
|||
| ? | 01010-31060 | BOLT | 4 | SN: 55458- |
|||
| ? | 01602-01030 | WASHER,SPRING | 4 | SN: 55458- |
|||
| ? | 6136-61-1210 | BRACKET | 1 | SN: 55458- |
|||
| ? | 6676-21-6530 | SPACER | 1 | SN: 55458- |
|||
| ? | 01010-31065 | BOLT | 1 | SN: 55458- |
|||
| ? | 01602-01030 | WASHER,SPRING | 1 | SN: 55458- |
|||
| ? | 01010-30816 | BOLT | 2 | SN: 55458- |
|||
| ? | 01602-00825 | WASHER,SPRING | 2 | SN: 55458- |
|||
| ? | 07217-60510 | ELBOW | 2 | SN: 55458- |
|||
| ? | 6136-61-1711 | TUBE | 1 | SN: 55458- |
|||
| ? | 6136-61-6111 | NIPPLE | 1 | SN: 55458- |
|||
| ? | 6136-61-6120 | HOSE | 1 | SN: 55458- |
|||
| ? | 07281-00489 | CLAMP | 2 | SN: 55458- |
|||
| ? | 6136-11-6411 | HOUSING | 1 | SN: 55458- |
|||
| ? | 6124-11-6151 | NIPPLE | 1 | SN: 55458- |
|||
| ? | 600-815-3580 | SWITCH,THERMO | 1 | SN: 55458- |
|||
| ? | 6672-12-6290 | PLUG | 1 | SN: 55458- |
|||
| ? | 07005-01612 | GASKET | 1 | SN: 55458- |
|||
| ? | 600-421-6210 | THERMOSTAT | 1 | SN: 55458- |
|||
| ? | 6136-11-6510 | CONNECTOR | 1 | SN: 55458- |
|||
| ? | 6136-11-6810 | GASKET (K1) | 1 | SN: 55458- |
|||
| ? | 01010-30830 | BOLT | 3 | SN: 55458- |
|||
| ? | 01602-00825 | WASHER,SPRING | 3 | SN: 55458- |
|||
| ? | 01640-00816 | WASHER | 3 | SN: 55458- |
|||
| ? | 6136-11-6821 | GASKET (K1) | 1 | SN: 55458- |
|||
| ? | 01010-31055 | BOLT | 2 | SN: 55458- |
|||
| ? | 01602-01030 | WASHER,SPRING | 2 | SN: 55458- |
|||
| ? | 01640-01016 | WASHER | 2 | SN: 55458- |
|||
| ? | 600-613-0580 | FAN,COOLING (FOR EG80) | 1 | SN: 55458- |
|||
| ? | 600-633-0710 | FAN,COOLING (FOR EG80S) | 1 | SN: 55464- |
|||
| ? | 6130-61-3320 | SPACER | 1 | SN: 55458- |
|||
| ? | 01010-31050 | BOLT | 6 | SN: 55458- |
|||
| ? | 01602-01030 | WASHER,SPRING | 6 | SN: 55458- |
|||
| ? | 04121-21755 | V-BELT SET,(FOR EG80) | 1 | SN: 55458- |
|||
| ? | 04121-21757 | V-BELT SET,(FOR EG80S) | 1 | SN: 55464- |
