| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|

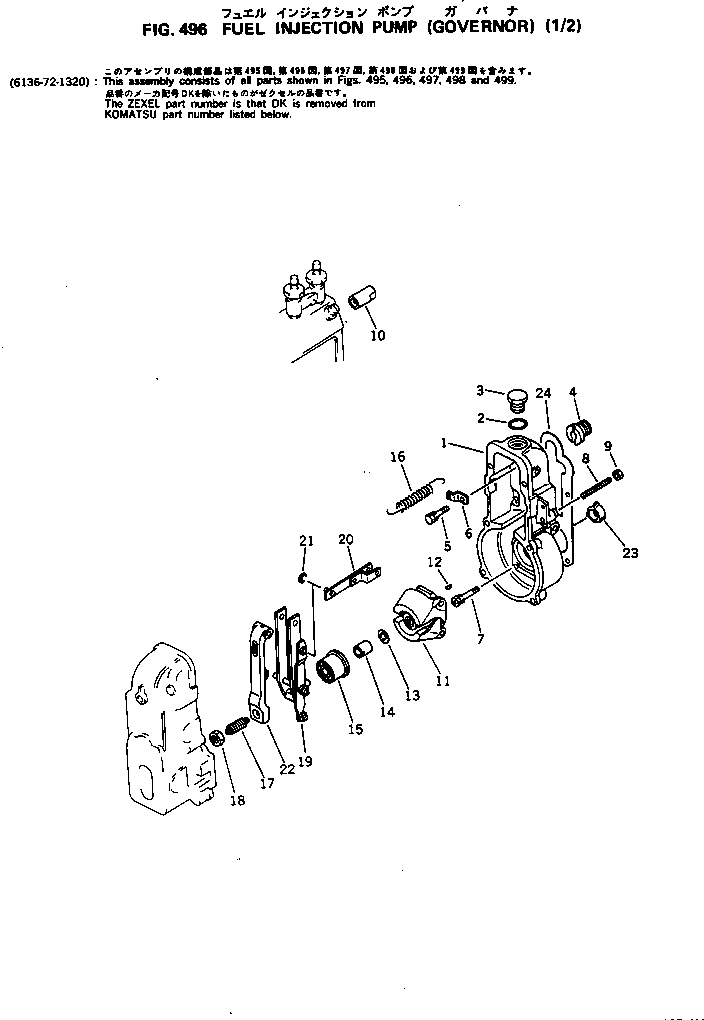

| ? | (6136-72-1320) | INJECTION PUMP ASS'Y | 1 | SN: 55458- |
|||
| ? | DK105410-6120 | • GOVERNOR ASS'Y | 1 | SN: 55458- |
|||
| ? | DK154000-6400 | • • HOUSING | 1 | SN: 55458- |
|||
| ? | DK029632-5070 | • • O-RING | 1 | SN: 55458- |
|||
| ? | DK154007-2900 | • • PLUG | 1 | SN: 55458- |
|||
| ? | DK154007-0200 | • • ADAPTER | 1 | SN: 55458- |
|||
| ? | DK020018-1840 | • • BOLT | 1 | SN: 55458- |
|||
| ? | DK154350-1900 | • • PLATE | 1 | SN: 55458- |
|||
| ? | DK020006-1440 | • • BOLT | 6 | SN: 55458- |
|||
| ? | DK154010-0100 | • • SCREW | 1 | SN: 55458- |
|||
| ? | DK154011-0100 | • • NUT,LOCK | 1 | SN: 55458- |
|||
| ? | DK155404-5700 | • • CAP | 1 | SN: 55458- |
|||
| ? | DK154101-0020 | • • FLYWEIGHT ASS'Y | 1 | SN: 55458- |
|||
| ? | DK025803-1610 | • • KEY ? 16MM | 1 | SN: 55458- |
|||
| ? | DK029321-2020 | • • WASHER,SPRING | 1 | SN: 55458- |
|||
| ? | DK029231-2030 | • • NUT | 1 | SN: 55458- |
|||
| ? | DK154123-0120 | • • SLEEVE | 1 | SN: 55458- |
|||
| ? | DK029801-0030 | • • • BEARING | 1 | SN: 55458- |
|||
| ? | DK154154-0701 | • • SPRING | 1 | SN: 55458- |
|||
| ? | DK154177-1820 | • • CAPSULE,SPRING | 1 | SN: 55458- |
|||
| ? | DK029201-6010 | • • NUT | 1 | SN: 55458- |
|||
| ? | DK154210-7420 | • • GUIDE LEVER ASS'Y | 1 | SN: 55458- |
|||
| ? | DK154230-0120 | • • LINK | 1 | SN: 55458- |
|||
| ? | DK016010-0540 | • • RING,SNAP | 1 | SN: 55458- |
|||
| ? | DK154236-4100 | • • LEVER,TENSION | 1 | SN: 55458- |
|||
| ? | DK155412-5200 | • • IMPELLER | 1 | SN: 55458- |
|||
| ? | DK154350-7700 | • • GASKET | 1 | SN: 55458- |
