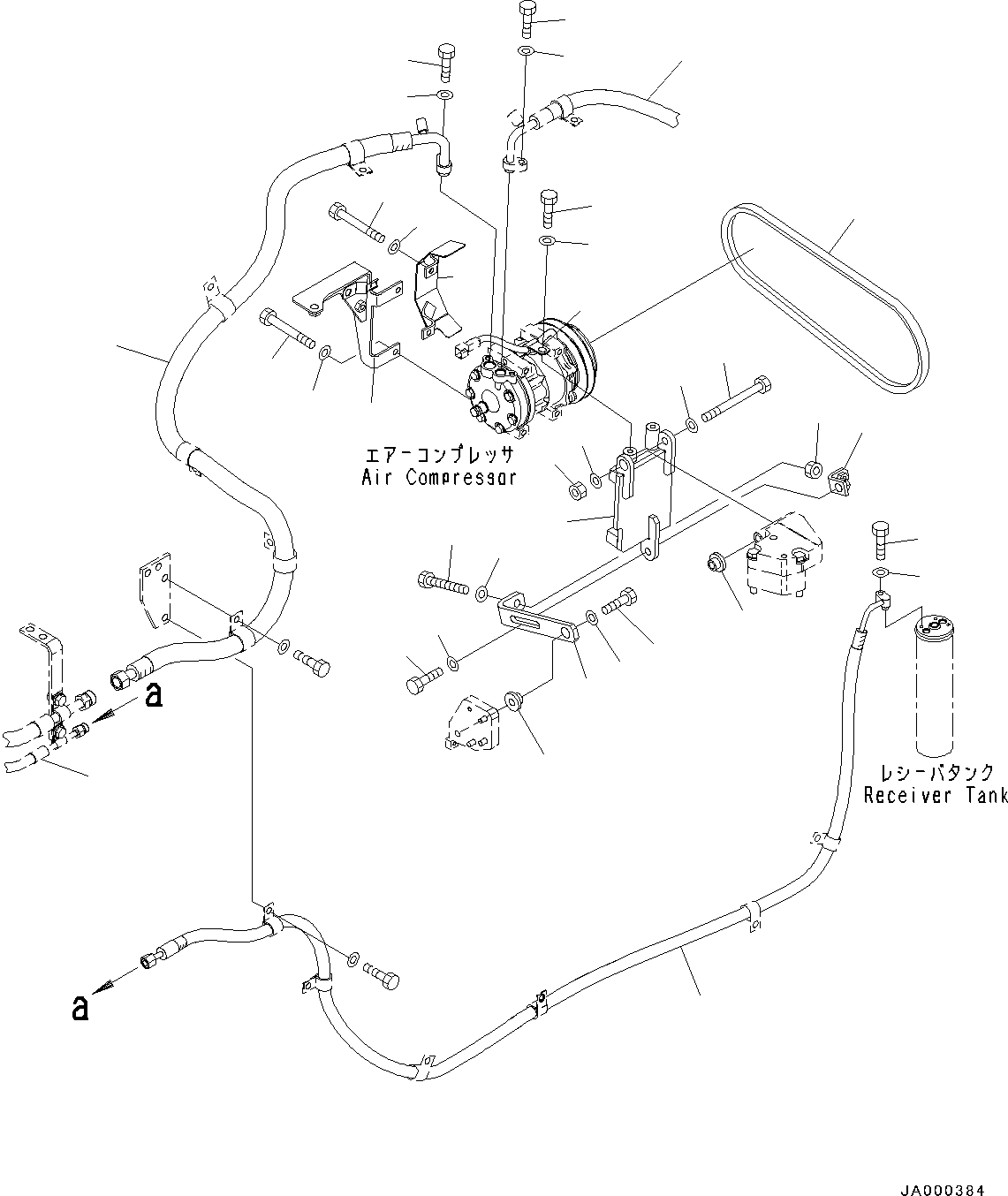

| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | 418-S62-4810 | Bracket | 1 | SN: C10001- KIT-FLAG: _- SCC: SERIALNO: C10001- |
|||
| ? | 417-S62-4830 | Plate | 1 | SN: C10001- KIT-FLAG: _- SCC: SERIALNO: C10001- |
|||
| ? | 418-S62-4220 | Bracket | 1 | SN: C10001- KIT-FLAG: _- SCC: SERIALNO: C10001- |
|||
| ? | 01016-51090 | Bolt | 1 | SN: C10001- KIT-FLAG: _- SCC: SERIALNO: C10001- |
|||
| ? | 01643-31032 | Washer | 1 | SN: C10001- KIT-FLAG: _- SCC: SERIALNO: C10001- |
|||
| ? | 01580-11008 | Nut | 1 | SN: C10001- KIT-FLAG: _- SCC: SERIALNO: C10001- |
|||
| ? | 418-S62-4840 | Plate | 1 | SN: C10001- KIT-FLAG: _- SCC: SERIALNO: C10001- |
|||
| ? | 01010-81240 | Bolt | 1 | SN: C10001- KIT-FLAG: _- SCC: SERIALNO: C10001- |
|||
| ? | 01643-31232 | Washer | 1 | SN: C10001- KIT-FLAG: _- SCC: SERIALNO: C10001- |
|||
| ? | 01010-81240 | Bolt | 1 | SN: C10001- KIT-FLAG: _- SCC: SERIALNO: C10001- |
|||
| ? | 01643-31232 | Washer | 1 | SN: C10001- KIT-FLAG: _- SCC: SERIALNO: C10001- |
|||
| ? | 01011-81230 | Bolt | 1 | SN: C10001- KIT-FLAG: _- SCC: SERIALNO: C10001- |
|||
| ? | 01580-11210 | Nut | 1 | SN: C10001- KIT-FLAG: _- SCC: SERIALNO: C10001- |
|||
| ? | 01643-31232 | Washer | 2 | SN: C10001- KIT-FLAG: _- SCC: SERIALNO: C10001- |
|||
| ? | 419-07-11761 | Collar | 2 | SN: C10001- KIT-FLAG: _- SCC: SERIALNO: C10001- |
|||
| ? | 418-S62-4290 | Cover | 1 | SN: C10001- KIT-FLAG: _- SCC: SERIALNO: C10001- |
|||
| ? | 21W-979-4420 | Bolt | 4 | SN: C10001- KIT-FLAG: _- SCC: SERIALNO: C10001- |
|||
| ? | 01643-30823 | Washer | 4 | SN: C10001- KIT-FLAG: _- SCC: SERIALNO: C10001- |
|||
| ? | 600-051-2100 | Clip | 1 | SN: C10001- KIT-FLAG: _- SCC: SERIALNO: C10001- |
|||
| ? | 01010-81020 | Bolt | 1 | SN: C10001- KIT-FLAG: _- SCC: SERIALNO: C10001- |
|||
| ? | 01643-31032 | Washer | 1 | SN: C10001- KIT-FLAG: _- SCC: SERIALNO: C10001- |
|||
| ? | 04120-21745 | V-belt | 1 | SN: C10001- KIT-FLAG: _- SCC: SERIALNO: C10001- |
|||
| ? | 417-S62-4231 | Hose, L=1640mm | 1 | SN: C10001- KIT-FLAG: _- SCC: SERIALNO: C10001- |
|||
| ? | 01010-80830 | Bolt | 1 | SN: C10001- KIT-FLAG: _- SCC: SERIALNO: C10001- |
|||
| ? | 01643-30823 | Washer | 1 | SN: C10001- KIT-FLAG: _- SCC: SERIALNO: C10001- |
|||
| ? | 01010-80830 | Bolt | 1 | SN: C10001- KIT-FLAG: _- SCC: SERIALNO: C10001- |
|||
| ? | 01643-30823 | Washer | 1 | SN: C10001- KIT-FLAG: _- SCC: SERIALNO: C10001- |
|||
| ? | 417-S62-4261 | Hose, L=1860mm | 1 | SN: C10001- KIT-FLAG: _- SCC: SERIALNO: C10001- |
|||
| ? | 01010-80630 | Bolt | 2 | SN: C10001- KIT-FLAG: _- SCC: SERIALNO: C10001- |
|||
| ? | 01643-30623 | Washer | 2 | SN: C10001- KIT-FLAG: _- SCC: SERIALNO: C10001- |
|||
| ? | (417-S62-4240) | Hose | SN: - KIT-FLAG: _- SCC: SERIALNO: |
C0110-001009 | |||
| ? | (418-07-45110) | Hose | SN: - KIT-FLAG: _- SCC: SERIALNO: |
K0210-001031 |
