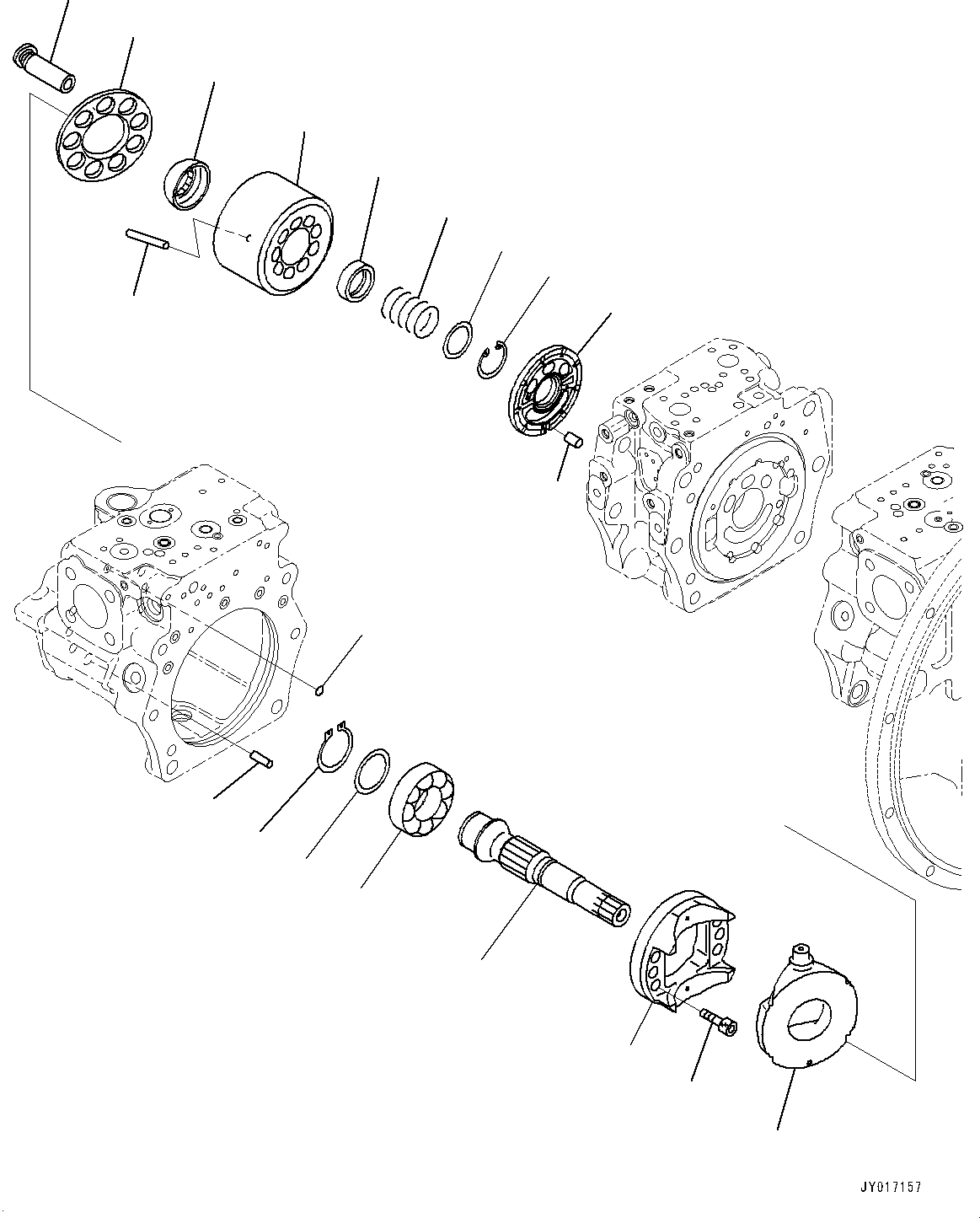

| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | 708-2G-00172 | Pump Assembly | 1 | SN: K60242- KIT-FLAG: _- SCC: SERIALNO: K60242- |
|||
| ? | 708-2G-00171 | Pump Assembly | 1 | SN: K60086-K60241 KIT-FLAG: _- SCC: SERIALNO: K60086-K60241 |
|||
| ? | 708-2G-00170 | Pump Assembly | 1 | SN: K60074-K60085 KIT-FLAG: _- SCC: A1 SERIALNO: K60074-K60085 |
|||
| ? | 708-2G-01172 | • Pump Subassembly | 1 | SN: K60242- KIT-FLAG: _- SCC: C2 SERIALNO: K60242- |
|||
| ? | 708-2G-01171 | • Pump Subassembly | 1 | SN: K60086-K60241 KIT-FLAG: _- SCC: C2 SERIALNO: K60086-K60241 |
|||
| ? | 708-2G-01170 | • Pump Subassembly | 1 | SN: K60074-K60085 KIT-FLAG: _- SCC: C2 SERIALNO: K60074-K60085 |
|||
| ? | 708-2G-12720 | • • Shaft | 1 | SN: K60242- KIT-FLAG: _- SCC: C2 SERIALNO: K60242- |
|||
| ? | 708-2G-12650 | • • Shaft | 1 | SN: K60074-K60241 KIT-FLAG: _- SCC: C2 SERIALNO: K60074-K60241 |
|||
| ? | 708-2G-12252 | • • Bearing | 1 | SN: K60074- KIT-FLAG: _- SCC: C2 SERIALNO: K60074- |
|||
| ? | 708-2G-05010 | • • Washer Kit | 1 | SN: K60074- KIT-FLAG: _- SCC: C2 SERIALNO: K60074- |
|||
| ? | • • • Washer, T=3.0mm | 1 | SN: K60074- KIT-FLAG: _- SCC: C1 SERIALNO: K60074- |
||||
| ? | • • • Washer, T=3.1mm | 1 | SN: K60074- KIT-FLAG: _- SCC: C1 SERIALNO: K60074- |
||||
| ? | • • • Washer, T=3.2mm | 1 | SN: K60074- KIT-FLAG: _- SCC: C1 SERIALNO: K60074- |
||||
| ? | 708-1F-12270 | • • Ring, Snap | 1 | SN: K60074- KIT-FLAG: _- SCC: C2 SERIALNO: K60074- |
|||
| ? | 708-2G-04720 | • • Block Assembly | 1 | SN: K60074- KIT-FLAG: _- SCC: C2 SERIALNO: K60074- |
|||
| ? | • • • Cylinder Block | 1 | SN: K60074- KIT-FLAG: _- SCC: C1 SERIALNO: K60074- |
||||
| ? | • • • Plate, Valve | 1 | SN: K60074- KIT-FLAG: _- SCC: C1 SERIALNO: K60074- |
||||
| ? | 708-18-13230 | • • Pin | 1 | SN: K60074- KIT-FLAG: _- SCC: C2 SERIALNO: K60074- |
|||
| ? | 04065-05520 | • • Ring, Snap, for Hole Side | 1 | SN: K60074- KIT-FLAG: _- SCC: C2 SERIALNO: K60074- |
|||
| ? | 708-2G-13131 | • • Seat | 1 | SN: K60074- KIT-FLAG: _- SCC: C2 SERIALNO: K60074- |
|||
| ? | 708-2G-13152 | • • Spring | 1 | SN: K60074- KIT-FLAG: _- SCC: C2 SERIALNO: K60074- |
|||
| ? | 708-2G-13141 | • • Seat | 1 | SN: K60074- KIT-FLAG: _- SCC: C2 SERIALNO: K60074- |
|||
| ? | 708-2G-13510 | • • Guide, Retainer | 1 | SN: K60074- KIT-FLAG: _- SCC: C2 SERIALNO: K60074- |
|||
| ? | 708-2H-23360 | • • Pin | 3 | SN: K60074- KIT-FLAG: _- SCC: C2 SERIALNO: K60074- |
|||
| ? | 708-2G-13341 | • • Retainer, Shoe | 1 | SN: K60074- KIT-FLAG: _- SCC: C2 SERIALNO: K60074- |
|||
| ? | 708-2G-13810 | • • Piston Subassembly | 9 | SN: K60074- KIT-FLAG: _- SCC: C2 SERIALNO: K60074- |
|||
| ? | 708-2G-04670 | • • Cradle Subassembly | 1 | SN: K60074- KIT-FLAG: _- SCC: C2 SERIALNO: K60074- |
|||
| ? | • • • Cradle | 1 | SN: K60074- KIT-FLAG: _- SCC: C1 SERIALNO: K60074- |
||||
| ? | • • • Cam, Rocker | 1 | SN: K60074- KIT-FLAG: _- SCC: C1 SERIALNO: K60074- |
||||
| ? | 04020-01434 | • • Pin, Dowel | 1 | SN: K60074- KIT-FLAG: _- SCC: C2 SERIALNO: K60074- |
|||
| ? | 07000-B1009 | • • O-Ring | 1 | SN: K60074- KIT-FLAG: _- SCC: C2 SERIALNO: K60074- |
|||
| ? | 01252-61230 | • • Bolt | 6 | SN: K60074- KIT-FLAG: _- SCC: C2 SERIALNO: K60074- |
