Содержание Excavators Komatsu PC290LC-10 S/N K60001-UP(PC290L5U)

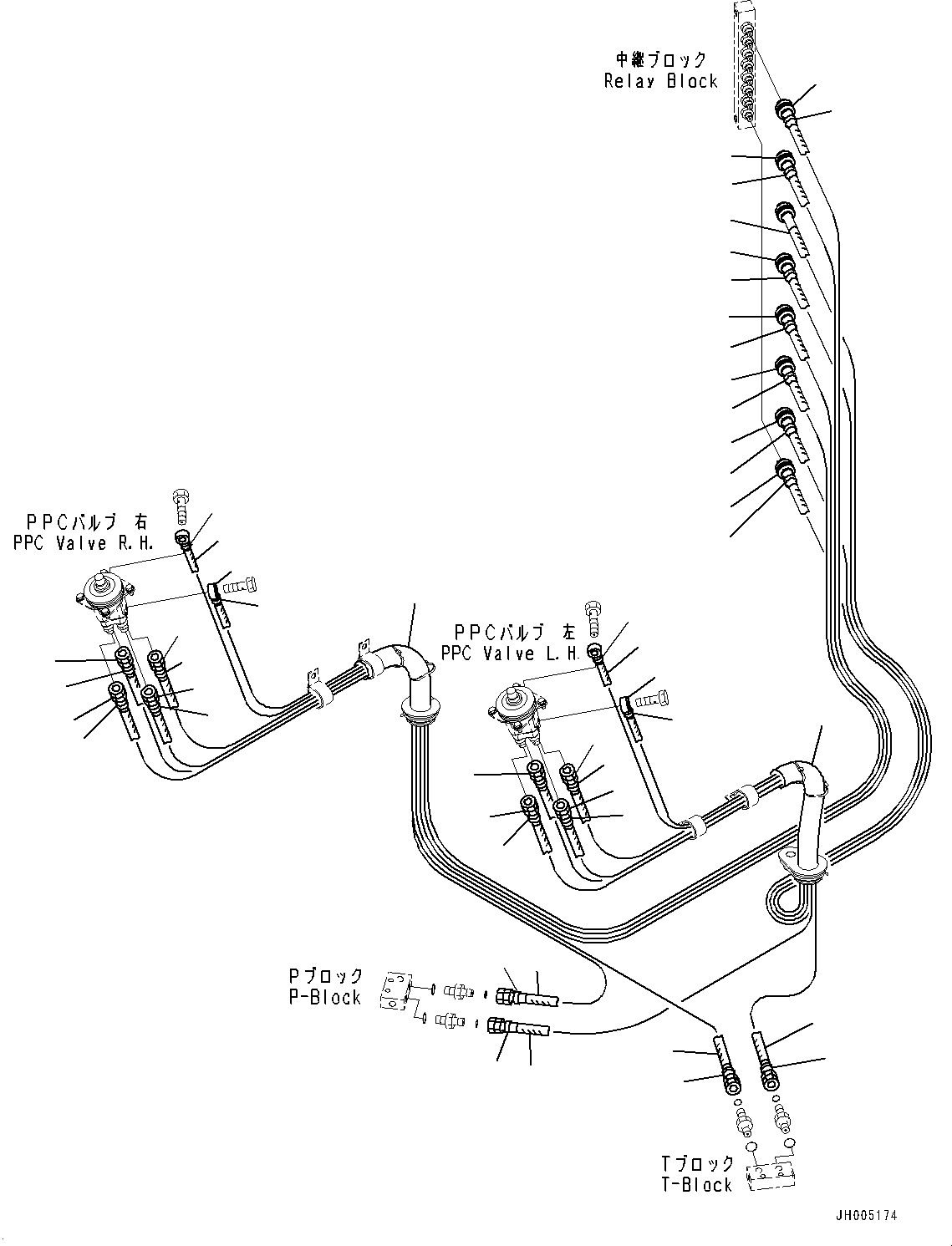

Cab and Floor Frame Group, Floor, PPC Valve Piping for Work Equipment(K015056 : K1110-001056)
Номер на схеме Каталожный номер Название Количество Детали
? 2A5-62-12162 Hose Assembly 1
SN: K60001-
KIT-FLAG: _-
SCC:
SERIALNO: K60001-
? 20Y-62-53410 • Hose 1
SN: K60001-
KIT-FLAG: _-
SCC:
SERIALNO: K60001-
? 2A5-62-14411 • Hose 1
SN: K60001-
KIT-FLAG: _-
SCC:
SERIALNO: K60001-
? 20Y-62-42271 • Hose 1
SN: K60001-
KIT-FLAG: _-
SCC:
SERIALNO: K60001-
? 20Y-62-42280 • Hose 1
SN: K60001-
KIT-FLAG: _-
SCC:
SERIALNO: K60001-
? 20Y-62-52280 • Hose 2
SN: K60001-
KIT-FLAG: _-
SCC:
SERIALNO: K60001-
? 20Y-62-22790 • Band, Red 4
SN: K60001-
KIT-FLAG: _-
SCC:
SERIALNO: K60001-
? 20Y-62-22810 • Band, Yellow 2
SN: K60001-
KIT-FLAG: _-
SCC:
SERIALNO: K60001-
? 20Y-62-22820 • Band, Blue 4
SN: K60001-
KIT-FLAG: _-
SCC:
SERIALNO: K60001-
? 2A5-62-12222 Hose Assembly 1
SN: K60001-
KIT-FLAG: _-
SCC:
SERIALNO: K60001-
? 2A5-62-13850 • Hose 1
SN: K60001-
KIT-FLAG: _-
SCC:
SERIALNO: K60001-
? 2A5-62-12242 • Hose 1
SN: K60001-
KIT-FLAG: _-
SCC:
SERIALNO: K60001-
? 2A5-62-12252 • Hose 1
SN: K60001-
KIT-FLAG: _-
SCC:
SERIALNO: K60001-
? 20Y-62-52290 • Hose 1
SN: K60001-
KIT-FLAG: _-
SCC:
SERIALNO: K60001-
? 2A5-62-12272 • Hose 1
SN: K60001-
KIT-FLAG: _-
SCC:
SERIALNO: K60001-
? 20Y-62-22790 • Band, Red 2
SN: K60001-
KIT-FLAG: _-
SCC:
SERIALNO: K60001-
? 20Y-62-22820 • Band, Blue 2
SN: K60001-
KIT-FLAG: _-
SCC:
SERIALNO: K60001-
? 20Y-62-22830 • Band, White 2
SN: K60001-
KIT-FLAG: _-
SCC:
SERIALNO: K60001-
? 20Y-62-22840 • Band, Black 2
SN: K60001-
KIT-FLAG: _-
SCC:
SERIALNO: K60001-
? 20Y-62-22850 • Band, Green 2
SN: K60001-
KIT-FLAG: _-
SCC:
SERIALNO: K60001-
? 20Y-62-22860 • Band, Brown 2
SN: K60001-
KIT-FLAG: _-
SCC:
SERIALNO: K60001-
? 20Y-62-42240 • Hose 1
SN: K60001-
KIT-FLAG: _-
SCC:
SERIALNO: K60001-
