Содержание Excavators Komatsu PC290LC-10 S/N K60001-UP(PC290L5U)

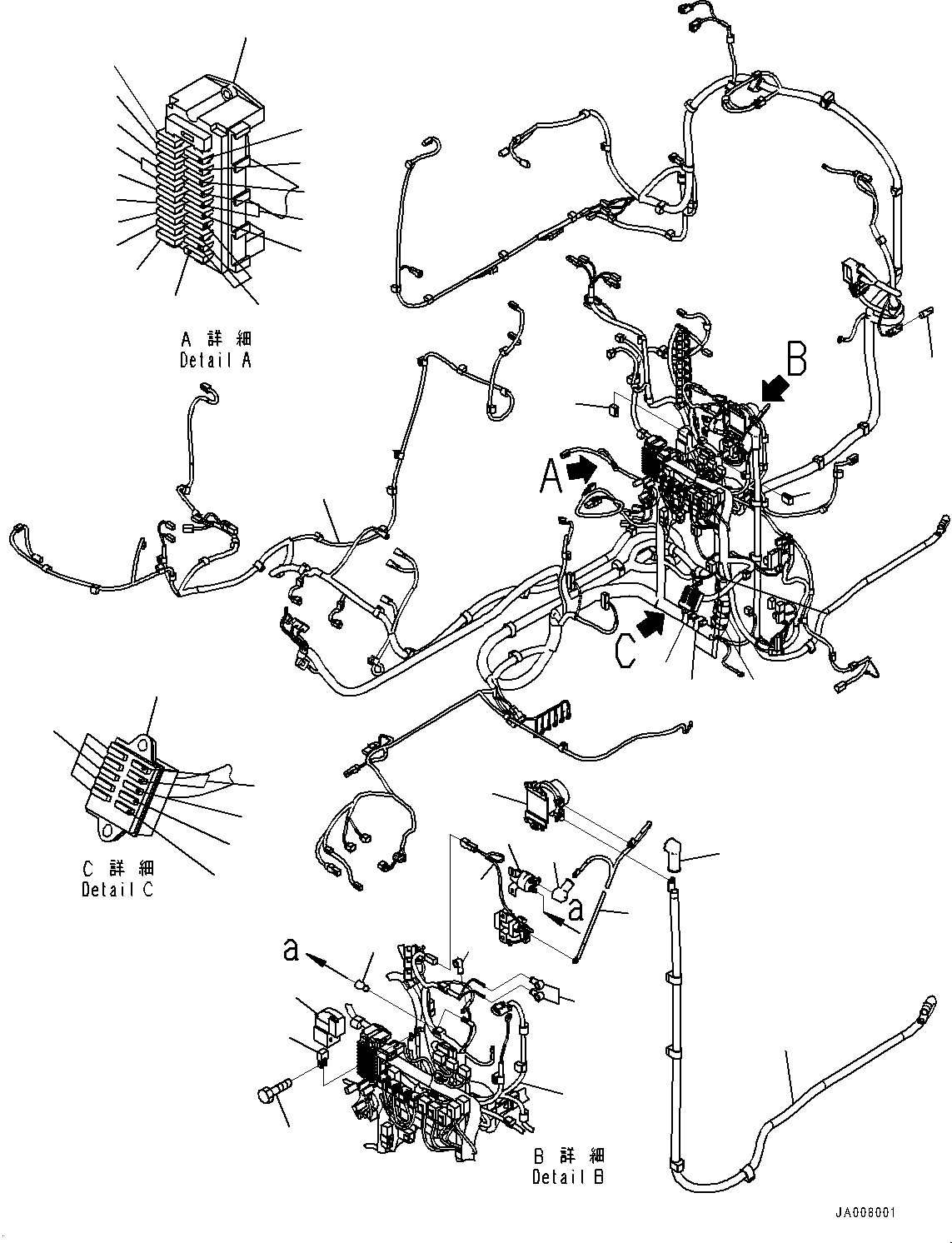

Cab and Floor Frame Group, Floor, Wiring Harness(K015033 : K1110-001033)
Номер на схеме Каталожный номер Название Количество Детали
? 206-06-35121 Wiring Harness 1
SN: K60054-
KIT-FLAG: _-
SCC:
SERIALNO: K60054-
? 206-06-35120 Wiring Harness 1
SN: K60001-K60053
KIT-FLAG: _-
SCC:
SERIALNO: K60001-K60053
? 08041-00500 • Fuse, 5Amp. 5
SN: K60001-
KIT-FLAG: _-
SCC:
SERIALNO: K60001-
? 08041-01000 • Fuse, 10Amp. 17
SN: K60001-
KIT-FLAG: _-
SCC:
SERIALNO: K60001-
? 08041-02000 • Fuse, 20Amp. 4
SN: K60001-
KIT-FLAG: _-
SCC:
SERIALNO: K60001-
? 08041-03000 • Fuse, 30Amp. 4
SN: K60001-
KIT-FLAG: _-
SCC:
SERIALNO: K60001-
? 19M-06-31720 • Resistor 1
SN: K60001-
KIT-FLAG: _-
SCC:
SERIALNO: K60001-
? 20Y-06-31660 • Fusible Link, 30Amp. 1
SN: K60001-
KIT-FLAG: _-
SCC:
SERIALNO: K60001-
? 22U-06-11270 • Fusible Link, 65Amp. 1
SN: K60001-
KIT-FLAG: _-
SCC:
SERIALNO: K60001-
? HM6400-0012 • F-Connector, Black 2
SN: K60001-
KIT-FLAG: _-
SCC:
SERIALNO: K60001-
? HM6409-0071 • M-Connector, Black 2
SN: K60001-
KIT-FLAG: _-
SCC:
SERIALNO: K60001-
? HM6440-0129 • F-Connector, Pink 3
SN: K60001-
KIT-FLAG: _-
SCC:
SERIALNO: K60001-
? HM6440-0128 • M-Connector, Pink 3
SN: K60001-
KIT-FLAG: _-
SCC:
SERIALNO: K60001-
? HM6400-0016 • F-Connector, Orange 2
SN: K60001-
KIT-FLAG: _-
SCC:
SERIALNO: K60001-
? HM6409-0075 • M-Connector, Orange 2
SN: K60001-
KIT-FLAG: _-
SCC:
SERIALNO: K60001-
? 2A5-06-11161 Cable 1
SN: K60001-
KIT-FLAG: _-
SCC:
SERIALNO: K60001-
? 22L-06-21250 Cap 1
SN: K60001-
KIT-FLAG: _-
SCC:
SERIALNO: K60001-
? 08088-30000 Switch, Battery Relay 1
SN: K60001-
KIT-FLAG: _-
SCC:
SERIALNO: K60001-
? 08038-00519 Cap 2
SN: K60001-
KIT-FLAG: _-
SCC:
SERIALNO: K60001-
? 08038-04030 Cap, Terminal 1
SN: K60001-
KIT-FLAG: _-
SCC:
SERIALNO: K60001-
? 600-815-2170 Switch, Heater 1
SN: K60001-
KIT-FLAG: _-
SCC:
SERIALNO: K60001-
? 08038-00519 Cap 2
SN: K60001-
KIT-FLAG: _-
SCC:
SERIALNO: K60001-
? 600-815-8951 Relay 1
SN: K60001-
KIT-FLAG: _-
SCC:
SERIALNO: K60001-
? 206-06-K1430 Cable 1
SN: K60001-
KIT-FLAG: _-
SCC:
SERIALNO: K60001-
? 421-06-22880 Holder 1
SN: K60001-
KIT-FLAG: _-
SCC:
SERIALNO: K60001-
? 421-06-22990 • Bolt 4
SN: K60001-
KIT-FLAG: _-
SCC:
SERIALNO: K60001-
? 421-06-22820 Fuse, 80Amp. 1
SN: K60001-
KIT-FLAG: _-
SCC:
SERIALNO: K60001-
