Содержание Excavators Komatsu PC210LC-8K S/N K50001-UP(pc210l2u)

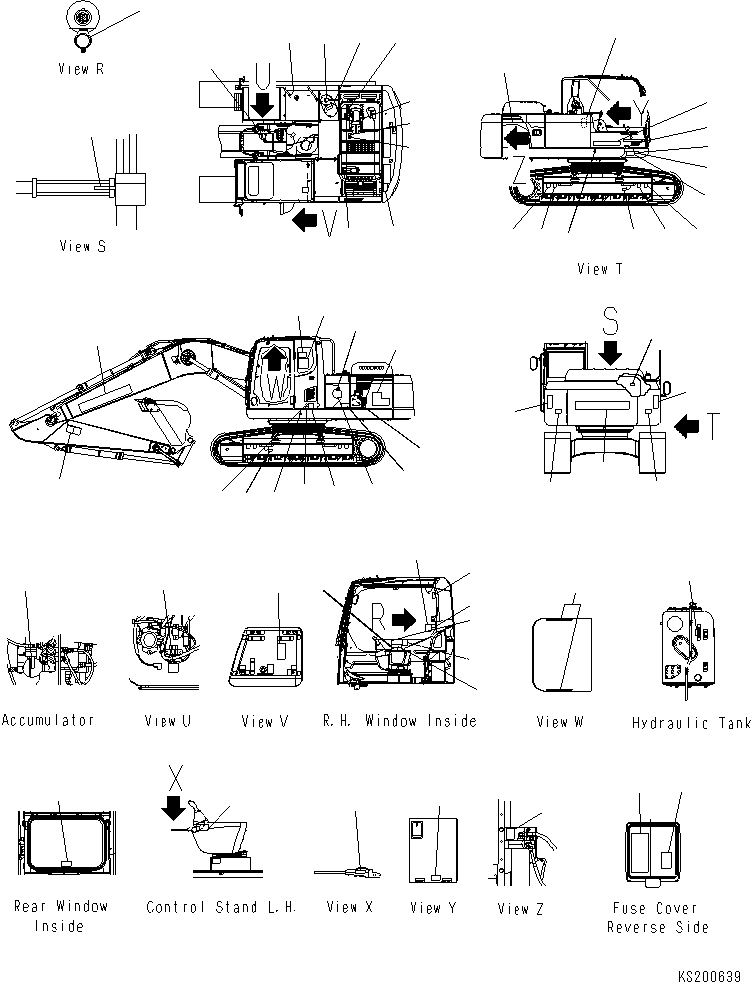

MARKS AND PLATES (LC) (FOR 1-PIECE BOOM) (#K50087-)(014005 : U0100-01A1A)
Номер на схеме Каталожный номер Название Количество Детали
? 09601-02063 PLATE, NAME, MACHINE MODEL 1
SN: K52914-
? 09601-02061 PLATE, NAME, MACHINE MODEL 1
SN: K50001-K52913
? 04418-13060 SCREW 4
SN: K50001-K52913
? 20Y-00-41250 PLATE, MARK, MACHINE MODEL 1
SN: K50001-
? 20Y-00-41260 PLATE, MARK, MACHINE MODEL 1
SN: K50001-
? 20Y-00-48140 PLATE, CAUTION, OVER LOAD 1
SN: K50001-
? 20Y-00-K2850 PLATE, CAUTION, LIFTING CAPACITY 1
SN: K50001-
? 04418-13060 SCREW 4
SN: K50001-
? 09659-A057B PLATE, SAFETY 1
SN: K50001-
? 09659-A057B PLATE, SAFETY 1
SN: K50001-
? 20Y-00-K2769 PLATE KIT 1
SN: K53503-
? 20Y-00-K2768 PLATE KIT 1
SN: K53403-K53502
? 20Y-00-K2767 PLATE KIT 1
SN: K52914-K53402
? 20Y-00-K2766 PLATE KIT 1
SN: K51854-K52913
? 20Y-00-K2765 PLATE KIT 1
SN: K50744-K51853
? 20Y-00-K2763 PLATE KIT 1
SN: K50689-K50743
? 20Y-00-K2762 PLATE KIT 1
SN: K50087-K50688
? 09685-00002 • PLATE, OPERATING, LOCK LEVER 1
SN: K50001-
? 09844-00050 • PLATE, EMERGENCY EXIT 1
SN: K50001-
? 09690-M0063 • PLATE, MARK, KOMATSU 1
SN: K50001-
? 09690-P0630 • PLATE, MARK, KOMATSU 1
SN: K50001-
? 09842-A0481 • PLATE, CAUTION 2
SN: K50001-
? 20E-00-K1150 • PLATE, CAUTION, KEEP OFF SWING AREA 2
SN: K50001-
? 09653-A0481 • PLATE, SAFETY, HOT LIQUID 2
SN: K50001-
? 09657-A0881 • PLATE, SAFETY, ADJUSTING TRACK TENSION 2
SN: K50001-
? 22U-00-21511 • PLATE, 12v SUPPLY SOCKET 1
SN: K52914-
? 22U-00-21510 • PLATE, 12v SUPPLY SOCKET 1
SN: K50087-K52913
? 09667-A0481 • PLATE, SAFETY, ROTATION 2
SN: K50001-
? 09805-A0881 • PLATE, SAFETY, KEEP AWAY FROM EDGE 1
SN: K50001-
? 09805-C0481 • PLATE, SAFETY, HOOD 1
SN: K50001-
? 09808-A0881 • PLATE, SAFETY, BATTERY CABLE 1
SN: K50001-
? 20Y-00-K2021 • PLATE, WARNING DECAL 1
SN: K52914-
? 20Y-00-K2020 • PLATE, WARNING DECAL 1
SN: K50744-K52913
? 207-00-K1951 • PLATE, WARNING DECAL 1
SN: K50001-K50743
? 09669-0000E • PLATE, CAUTION, FUEL 1
SN: K50001-
? 09669-0000C • PLATE, CAUTION, HYDRAULIC OIL 1
SN: K50001-
? 09963-A1640 • TAG, DO NOT OPERATE 1
SN: K50001-
? 20Y-00-41341 • PLATE, PRE-FILTER 1
SN: K52914-
? 20Y-00-41340 • PLATE, PRE-FILTER 1
SN: K50001-K52913
? 09659-A057B • PLATE, SAFETY, EXPLOSION HAZARD 2
SN: K50001-
? 20Y-00-K2031 • PLATE, FUSE 1
SN: K52914-
? 20Y-00-K2030 • PLATE, FUSE 1
SN: K50744-K52913
? 20Y-00-48131 • PLATE, FUSE 1
SN: K50001-K50743
? 206-00-K1010 • PLATE, SWING AND PUMP OVERRIDE SWITCHES 1
SN: K50001-
? 208-00-71261 • PLATE, NOTICE 1
SN: K52914-
? 208-00-71260 • PLATE, NOTICE 1
SN: K50001-K52913
? 205-00-73360 • PLATE, OPERATING, LEVEL GAUGE 1
SN: K50001-
? 20Y-00-K2950 • PLATE, SLING POSITION 1
SN: K52914-
? 20Y-00-31840 • PLATE, SLING POSITION 1
SN: K50001-K52913
? 09960-00802 • MARK, SLING POSITION 4
SN: K50001-
? 09960-00801 • MARK, SLING POSITION 4
SN: K50001-
? 09696-40102 • PLATE, EU DYNAMIC NOISE 1
SN: K50001-
? 09696-50069 • PLATE, OPERATORґS NOISE 1
SN: K50001-
? 20E-00-K1710 • PLATE, CAUTION 1
SN: K50001-
? 20E-00-K1690 • PLATE, CAUTION, ANTI-FREEZE 1
SN: K50001-K52913
? 20Y-00-48151 • OIL CHART 1
SN: K50001-
? 20E-00-K1140 • PLATE, CAUTION, KEEP OFF WORKING AREA 2
SN: K50001-
? 09637-A0640 • PLATE, INSTRUCTION, AIR CLEANER ELEMENT 1
SN: K52914-
? 20E-00-K1120 • PLATE, INSTRUCTION, AIR CLEANER ELEMENT 1
SN: K50001-K52913
? 09690-P1250 • PLATE, MARK, KOMATSU 2
SN: K50001-
? 09690-P1250 • PLATE, MARK, KOMATSU 1
SN: K50001-
? 20Y-00-41461 • PLATE, LOCK FOR FRONT LOWER WINDOW 1
SN: K52914-
? 20Y-00-41460 • PLATE, LOCK FOR FRONT LOWER WINDOW 1
SN: K50001-K52913
? 09803-A0481 • PLATE, SAFETY, WINDOW LOCK 2
SN: K50001-
? 20Y-00-41530 • PLATE, ECOT 3 1
SN: K50001-
? 20J-00-11271 • PLATE, CAUTION, QUICK COUPLER 1
SN: K50744-
? 21U-98-31160 • PLATE, GRAVITY MARK 1
SN: K53403-
? 09845-00480 • KOMTRAX WARNING DECAL 1
SN: K53503-
? 14X-98-35181 PLATE, REFLECTIVE 2
SN: K50744-
? 207-00-76430 PLATE, CAMERA AND MIRRORS 1
SN: K51854-
? 09642-A0480 PLATE, INSTRUCTION, COOLANT 1
SN: K52914-
? 20Y-00-K2980 DECAL KIT, ENGINE 1
SN: K52914-
? 6271-81-2980 • PLATE, FUEL HIGH PRESSURE 1
SN: K52914-
? 600-181-1930 • PLATE, AIR CLEANER 1
SN: K52914-
