| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|

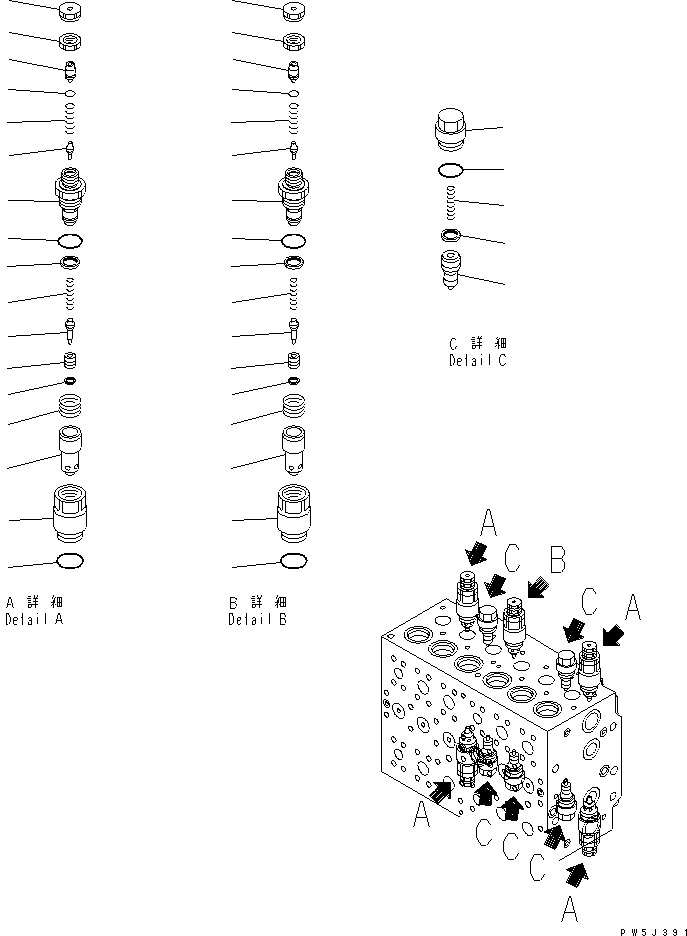

| ? | (723-48-23600) | VALVE ASSEMBLY | 1 | SN: K40001-K41134 |
|||
| ? | THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1664-31A0 T0 Y1664-51A0. | ||||||
| ? | 723-40-91200 | • VALVE ASSEMBLY, SUCTION AND SAFETY | 4 | SN: K40001-K41134 |
|||
| ? | ☆ | • • SLEEVE | 1 | SN: K40001-K41134 |
|||
| ? | ☆ | • • SLEEVE | 1 | SN: K40001-K41134 |
|||
| ? | ☆ | • • POPPET | 1 | SN: K40001-K41134 |
|||
| ? | ☆ | • • PISTON | 1 | SN: K40001-K41134 |
|||
| ? | ☆ | • • PLUG | 1 | SN: K40001-K41134 |
|||
| ? | ☆ | • • POPPET | 1 | SN: K40001-K41134 |
|||
| ? | ☆ | • • SPACER | 1 | SN: K40001-K41134 |
|||
| ? | ☆ | • • SPRING | 1 | SN: K40001-K41134 |
|||
| ? | ☆ | • • SPRING | 1 | SN: K40001-K41134 |
|||
| ? | ☆ | • • SPRING | 1 | SN: K40001-K41134 |
|||
| ? | ☆ | • • SEAL | 1 | SN: K40001-K41134 |
|||
| ? | ☆ | • • SEAL | 1 | SN: K40001-K41134 |
|||
| ? | 709-25-11390 | • • O-RING | 1 | SN: K40001-K41134 |
|||
| ? | ☆ | • • O-RING | 1 | SN: K40001-K41134 |
|||
| ? | ☆ | • • O-RING | 1 | SN: K40001-K41134 |
|||
| ? | ☆ | • • NUT | 1 | SN: K40001-K41134 |
|||
| ? | ☆ | • • NUT | 1 | SN: K40001-K41134 |
|||
| ? | 723-90-61600 | • VALVE ASSEMBLY, SUCTION AND SAFETY | 1 | SN: K40001-K41134 |
|||
| ? | ☆ | • • SLEEVE | 1 | SN: K40001-K41134 |
|||
| ? | ☆ | • • SLEEVE | 1 | SN: K40001-K41134 |
|||
| ? | ☆ | • • POPPET | 1 | SN: K40001-K41134 |
|||
| ? | ☆ | • • PISTON | 1 | SN: K40001-K41134 |
|||
| ? | ☆ | • • PLUG | 1 | SN: K40001-K41134 |
|||
| ? | ☆ | • • POPPET | 1 | SN: K40001-K41134 |
|||
| ? | ☆ | • • SPACER | 1 | SN: K40001-K41134 |
|||
| ? | ☆ | • • SPRING | 1 | SN: K40001-K41134 |
|||
| ? | ☆ | • • SPRING | 1 | SN: K40001-K41134 |
|||
| ? | ☆ | • • SPRING | 1 | SN: K40001-K41134 |
|||
| ? | ☆ | • • SEAL | 1 | SN: K40001-K41134 |
|||
| ? | ☆ | • • SEAL | 1 | SN: K40001-K41134 |
|||
| ? | 07000-13024 | • • O-RING | 1 | SN: K40001-K41134 |
|||
| ? | ☆ | • • O-RING | 1 | SN: K40001-K41134 |
|||
| ? | ☆ | • • O-RING | 1 | SN: K40001-K41134 |
|||
| ? | ☆ | • • NUT | 1 | SN: K40001-K41134 |
|||
| ? | ☆ | • • NUT | 1 | SN: K40001-K41134 |
|||
| ? | 723-40-85100 | • VALVE ASSEMBLY, SUCTION | 5 | SN: K40001-K41134 |
|||
| ? | ☆ | • • SLEEVE | 1 | SN: K40001-K41134 |
|||
| ? | ☆ | • • VALVE | 1 | SN: K40001-K41134 |
|||
| ? | ☆ | • • SPRING | 1 | SN: K40001-K41134 |
|||
| ? | ☆ | • • SEAL | 1 | SN: K40001-K41134 |
|||
| ? | 709-25-11390 | • • O-RING | 1 | SN: K40001-K41134 |
