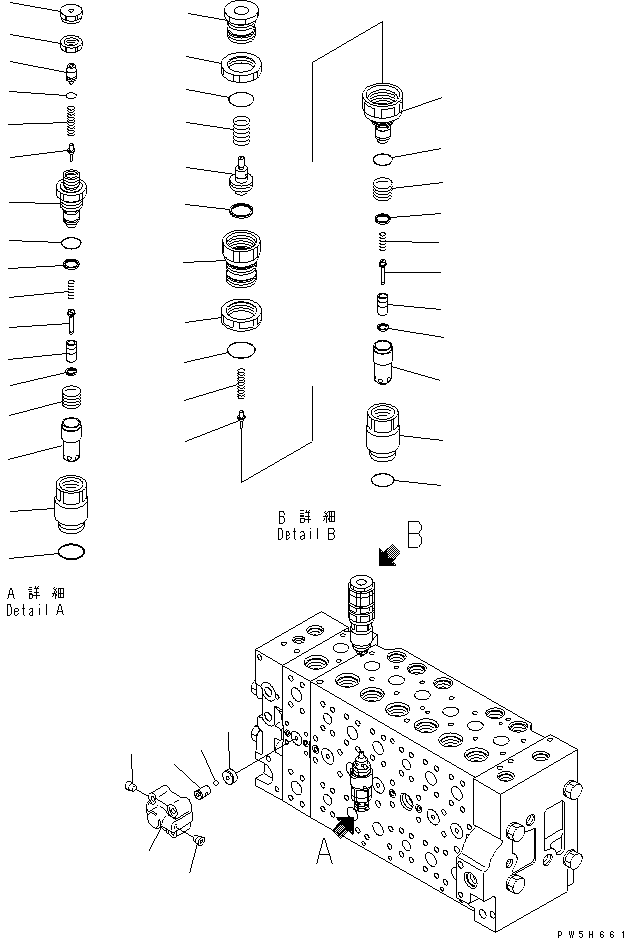

| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | (723-47-20402) | VALVE ASSEMBLY | 1 | SN: K40360-K41134 |
|||
| ? | (723-47-20401) | VALVE ASSEMBLY | 1 | SN: K40001-K40359 |
|||
| ? | THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.Y1662-01A0 TO Y1662-19A0. | ||||||
| ? | 723-40-66300 | • VALVE ASSEMBLY | 1 | SN: K40001-K41134 |
|||
| ? | ☆ | • • CASE | 1 | SN: K40001-K41134 |
|||
| ? | ☆ | • • SEAT | 1 | SN: K40001-K41134 |
|||
| ? | ☆ | • • SEAT | 1 | SN: K40001-K41134 |
|||
| ? | ☆ | • • BALL | 1 | SN: K40001-K41134 |
|||
| ? | ☆ | • • PLUG | 2 | SN: K40001-K41134 |
|||
| ? | 723-40-91300 | • VALVE ASSEMBLY, SUCTION AND SAFETY | 1 | SN: K40001-K41134 |
|||
| ? | ☆ | • • SLEEVE | 1 | SN: K40001-K41134 |
|||
| ? | ☆ | • • SLEEVE | 1 | SN: K40001-K41134 |
|||
| ? | ☆ | • • POPPET | 1 | SN: K40001-K41134 |
|||
| ? | ☆ | • • PISTON | 1 | SN: K40001-K41134 |
|||
| ? | ☆ | • • PLUG | 1 | SN: K40001-K41134 |
|||
| ? | ☆ | • • POPPET | 1 | SN: K40001-K41134 |
|||
| ? | ☆ | • • SPACER | 1 | SN: K40001-K41134 |
|||
| ? | ☆ | • • SPRING | 1 | SN: K40001-K41134 |
|||
| ? | ☆ | • • SPRING | 1 | SN: K40001-K41134 |
|||
| ? | ☆ | • • SPRING | 1 | SN: K40001-K41134 |
|||
| ? | ☆ | • • SEAL | 1 | SN: K40001-K41134 |
|||
| ? | ☆ | • • SEAL | 1 | SN: K40001-K41134 |
|||
| ? | 709-25-11390 | • • O-RING | 1 | SN: K40001-K41134 |
|||
| ? | ☆ | • • O-RING | 1 | SN: K40001-K41134 |
|||
| ? | ☆ | • • O-RING | 1 | SN: K40001-K41134 |
|||
| ? | ☆ | • • NUT | 1 | SN: K40001-K41134 |
|||
| ? | ☆ | • • NUT | 1 | SN: K40001-K41134 |
|||
| ? | 723-90-76101 | • VALVE ASSEMBLY, SUCTION AND SAFETY | 1 | SN: K40001-K41134 |
|||
| ? | ☆ | • • SLEEVE | 1 | SN: K40001-K41134 |
|||
| ? | ☆ | • • SLEEVE | 1 | SN: K40001-K41134 |
|||
| ? | ☆ | • • POPPET | 1 | SN: K40001-K41134 |
|||
| ? | ☆ | • • SEAL | 1 | SN: K40001-K41134 |
|||
| ? | ☆ | • • PISTON | 1 | SN: K40001-K41134 |
|||
| ? | ☆ | • • SLEEVE | 1 | SN: K40001-K41134 |
|||
| ? | ☆ | • • POPPET | 1 | SN: K40001-K41134 |
|||
| ? | ☆ | • • UNION | 1 | SN: K40001-K41134 |
|||
| ? | ☆ | • • PISTON | 1 | SN: K40001-K41134 |
|||
| ? | ☆ | • • SPRING | 1 | SN: K40001-K41134 |
|||
| ? | ☆ | • • SPRING | 1 | SN: K40001-K41134 |
|||
| ? | ☆ | • • SPRING | 1 | SN: K40001-K41134 |
|||
| ? | ☆ | • • SEAL | 1 | SN: K40001-K41134 |
|||
| ? | ☆ | • • SEAL | 1 | SN: K40001-K41134 |
|||
| ? | 07000-13024 | • • O-RING | 1 | SN: K40001-K41134 |
|||
| ? | ☆ | • • O-RING | 1 | SN: K40001-K41134 |
|||
| ? | ☆ | • • NUT | 1 | SN: K40001-K41134 |
|||
| ? | ☆ | • • NUT | 1 | SN: K40001-K41134 |
|||
| ? | ☆ | • • HOLDER | 1 | SN: K40001-K41134 |
|||
| ? | ☆ | • • O-RING | 1 | SN: K40001-K41134 |
|||
| ? | ☆ | • • SPRING | 1 | SN: K40001-K41134 |
|||
| ? | ☆ | • • O-RING | 1 | SN: K40001-K41134 |
