| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|

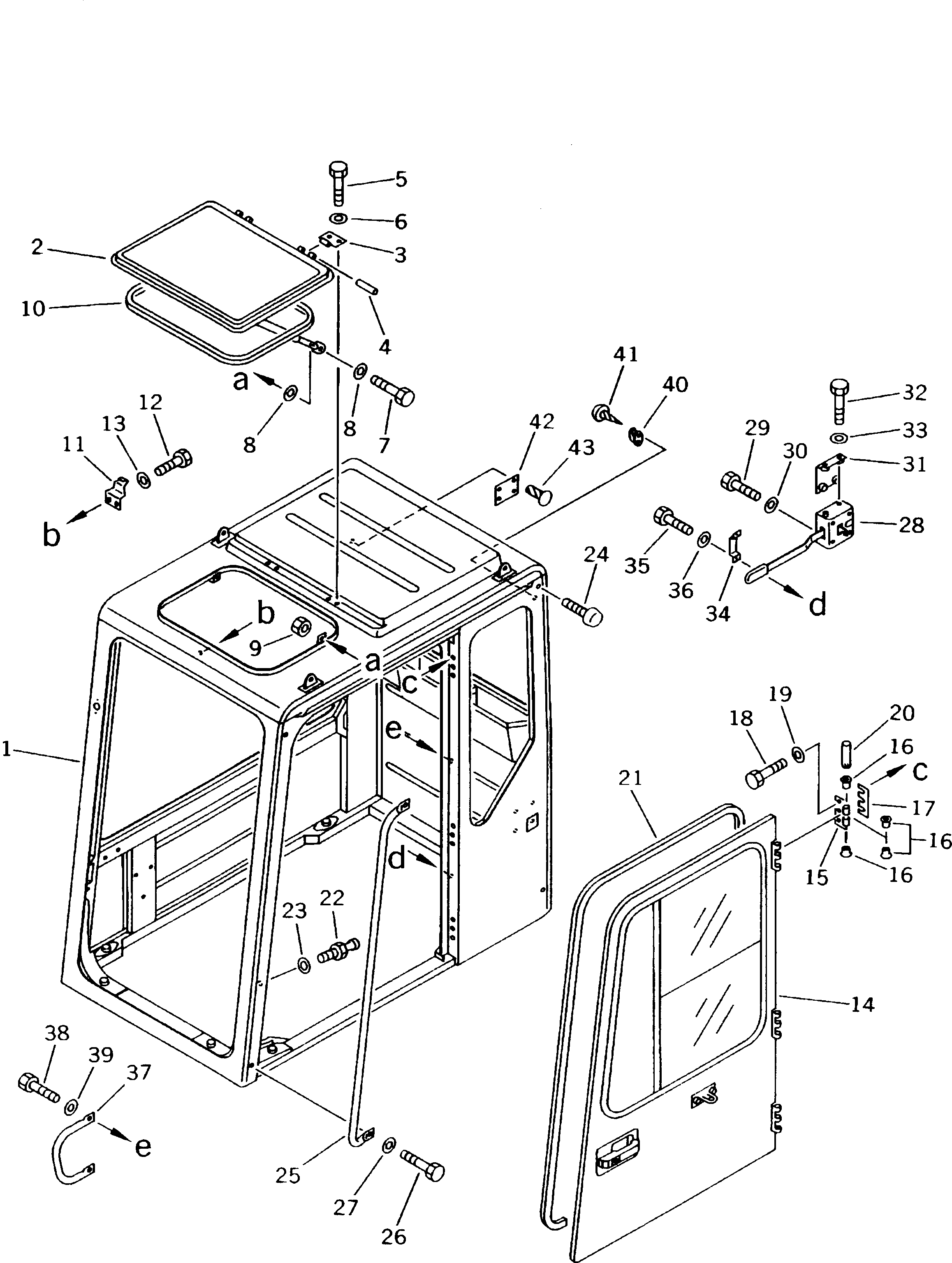

| ? | 20Y-54-K1100 | OPERATOR'S CAB ASS'Y | 1 | SN: K20001-. |
|||
| ? | THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.5201 TO 5206. | ||||||
| ? | 20Y-54-K1340 | • CAB | 1 | SN: K20001-@ |
|||
| ? | 20Y-54-K1440 | • ROOF HATCH ASS'Y | 1 | SN: K20001-@ |
|||
| ? | 20Y-54-K2410 | • HINGE | 2 | SN: K20001-@ |
|||
| ? | 20Y-54-K2390 | • PIN | 2 | SN: K20001-@ |
|||
| ? | 01010-50616 | • BOLT | 4 | SN: K20001-@ |
|||
| ? | 01641-20608 | • WASHER | 4 | SN: K20001-@ |
|||
| ? | 01010-50616 | • BOLT | 2 | SN: K20001-@ |
|||
| ? | 01641-20608 | • WASHER | 4 | SN: K20001-@ |
|||
| ? | 01598-00608 | • NUT | 2 | SN: K20001-@ |
|||
| ? | 20Y-54-K2570 | • SEAL | 1 | SN: K20001-@ |
|||
| ? | 20Y-54-K2580 | • BRACKET | 1 | SN: K20001-@ |
|||
| ? | 01010-50616 | • BOLT | 2 | SN: K20001-@ |
|||
| ? | 01641-20608 | • WASHER | 2 | SN: K20001-@ |
|||
| ? | (20Y-54-K1830) | • DOOR ASS'Y,(SEE FIG.5205) | 1 | SN: K20001-@ |
|||
| ? | 20Y-54-K1430 | • HINGE | 3 | SN: K20001-@ |
|||
| ? | 20Y-54-K1960 | • BUSHING | 12 | SN: K20001-@ |
|||
| ? | 20Y-54-K1970 | • SHIM | 3 | SN: K20001-@ |
|||
| ? | 01010-50825 | • BOLT | 9 | SN: K20001-@ |
|||
| ? | 01641-20812 | • WASHER | 9 | SN: K20001-@ |
|||
| ? | 20Y-54-K1950 | • PIN | 3 | SN: K20001-@ |
|||
| ? | 20Y-54-K2620 | • SEAL | 1 | SN: K20001-@ |
|||
| ? | 20Y-54-K2550 | • BOLT | 1 | SN: K20001-@ |
|||
| ? | 20Y-54-K2560 | • WASHER | 1 | SN: K20001-. |
|||
| ? | 20Y-54-K2290 | • BUFFER | 2 | SN: K20001-@ |
|||
| ? | 20Y-54-K2530 | • HANDLE | 1 | SN: K20001-@ |
|||
| ? | 01010-51030 | • BOLT | 2 | SN: K20001-@ |
|||
| ? | 01641-21016 | • WASHER | 2 | SN: K20001-@ |
|||
| ? | (20Y-54-K1330) | • LOCK BACK ASS'Y,(SEE FIG.5206) | 1 | SN: K20001-@ |
|||
| ? | 01010-50816 | • BOLT | 4 | SN: K20001-@ |
|||
| ? | 01641-20812 | • WASHER | 4 | SN: K20001-@ |
|||
| ? | 20Y-54-K2190 | • COVER | 1 | SN: K20001-@ |
|||
| ? | 20Y-54-K2750 | • SCREW | 4 | SN: K20001-@ |
|||
| ? | 01641-20508 | • WASHER | 4 | SN: K20001-@ |
|||
| ? | 20Y-54-K2210 | • BRACKET | 1 | SN: K20001-@ |
|||
| ? | 20Y-54-K2740 | • SCREW | 2 | SN: K20001-@ |
|||
| ? | 01641-20608 | • WASHER | 2 | SN: K20001-@ |
|||
| ? | 20Y-54-K2540 | • HANDLE | 1 | SN: K20001-@ |
|||
| ? | 01010-51030 | • BOLT | 2 | SN: K20001-@ |
|||
| ? | 01641-21016 | • WASHER | 2 | SN: K20001-@ |
|||
| ? | 20Y-54-K2510 | • HOOK | 1 | SN: K20001-@ |
|||
| ? | 20Y-54-K2520 | • SCREW | 2 | SN: K20001-@ |
|||
| ? | 20Y-54-K2240 | • PLATE ? NAME,(LIMITED SUPPLY) | 1 | SN: K20001-@ |
|||
| ? | 20Y-54-K2250 | • RIVET | 4 | SN: K20001-@ |
