| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|

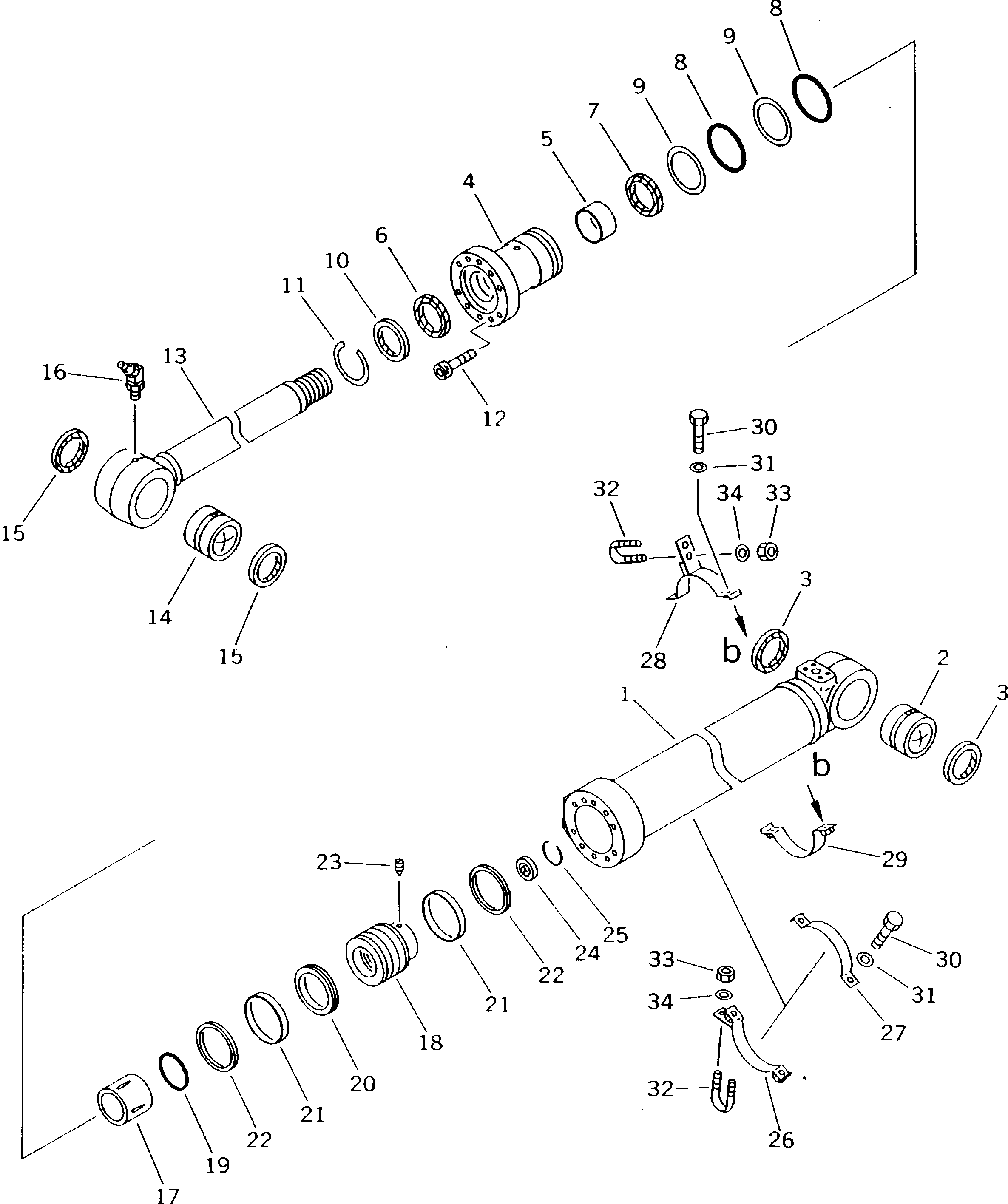

| ? | 21P-63-K1710 | CYLINDER ASS'Y,ARM | 1 | SN: K20001- |
|||
| ? | 21P-63-K1720 | • CYLINDER | 1 | SN: K20001- |
|||
| ? | 707-76-80230 | • BUSHING | 1 | SN: K20001- |
|||
| ? | 07145-00080 | • SEAL,DUST | 2 | SN: K20001- |
|||
| ? | 21P-63-K1740 | • HEAD,CYLINDER | 1 | SN: K20001- |
|||
| ? | 707-52-90600 | • BUSHING | 1 | SN: K20001- |
|||
| ? | 707-51-85030 | • PACKING,ROD | 1 | SN: K20001- |
|||
| ? | 707-51-85630 | • RING,BUFFER | 1 | SN: K20001- |
|||
| ? | 21P-63-K1770 | • O-RING | 2 | SN: K20001- |
|||
| ? | 21P-63-K1760 | • RING,BACK-UP | 2 | SN: K20001- |
|||
| ? | 07016-20858 | • SEAL,DUST | 1 | SN: K20001- |
|||
| ? | 21P-63-K1750 | • RING,SNAP | 1 | SN: K20001- |
|||
| ? | 203-63-K2120 | • BOLT | 10 | SN: K20001- |
|||
| ? | 21P-63-K1730 | • ROD,PISTON | 1 | SN: K20001- |
|||
| ? | 707-76-80230 | • BUSHING | 1 | SN: K20001- |
|||
| ? | 07145-00080 | • SEAL,DUST | 2 | SN: K20001- |
|||
| ? | 203-63-K2370 | • FITTING,GREASE | 1 | SN: K20001- |
|||
| ? | 21P-63-K2340 | • BUSHING,CUSHION | 1 | SN: K20001- |
|||
| ? | 21P-63-K1790 | • PISTON | 1 | SN: K20001- |
|||
| ? | 21P-63-K1810 | • O-RING | 1 | SN: K20001- |
|||
| ? | 707-44-12180 | • RING,PISTON | 1 | SN: K20001- |
|||
| ? | 707-39-12110 | • RING,WEAR | 2 | SN: K20001- |
|||
| ? | 707-44-12911 | • RING | 2 | SN: K20001- |
|||
| ? | 203-63-K2050 | • SCREW,SET | 1 | SN: K20001- |
|||
| ? | 203-63-K1230 | • RING,CUSHION | 1 | SN: K20001- |
|||
| ? | 203-63-K2110 | • RING,SNAP | 1 | SN: K20001- |
|||
| ? | 21P-63-K2220 | BRACKET | 1 | SN: K20001- |
|||
| ? | 21P-63-K2230 | BAND | 1 | SN: K20001- |
|||
| ? | 21P-63-K2250 | BRACKET | 1 | SN: K20001- |
|||
| ? | 21P-63-K2240 | BAND | 1 | SN: K20001- |
|||
| ? | 203-63-K2210 | BOLT | 4 | SN: K20001- |
|||
| ? | 203-63-K2220 | WASHER | 4 | SN: K20001- |
|||
| ? | 21P-63-K1960 | CLIP | 2 | SN: K20001- |
|||
| ? | 203-63-K2790 | NUT | 4 | SN: K20001- |
|||
| ? | 203-63-K2230 | WASHER | 4 | SN: K20001- |
